Engine Support Fixture Installation - Bank Two Cylinder Head Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Engine Front Cover Replacement Install the Engine Support Fixture as shown in Engine Support Fixture Installation - Transmission Mount, Engine Mount and Engine Mount Bracket Procedures . NOTE: Relocate the rearward engine lift bracket as shown. Special Tools EN-36857 Engine Lift Bracket Equivalent regional tools: Special Tools

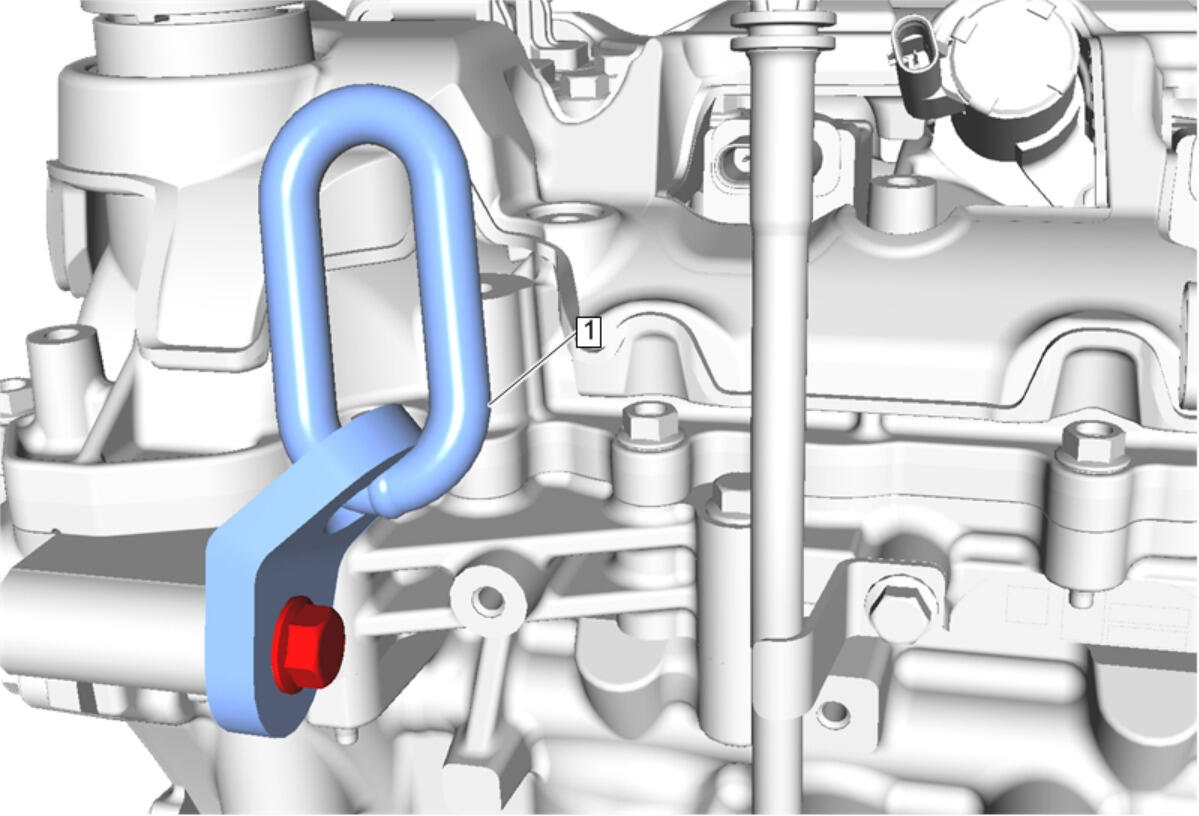

1	EN-36857 Engine Lift Bracket Procedure Using EN-51768 Engine Support Fixture Adapter Bolt - M8, install the EN-36857 Engine Lift Bracket as shown. Hand-tighten the lift hook wing nuts securely to remove all slack from the engine support fixture assembly.

Callout

Component Name

Preliminary Procedures

Engine Front Cover Replacement
Install the Engine Support Fixture as shown in Engine Support Fixture Installation - Transmission Mount, Engine Mount and Engine Mount Bracket Procedures .
NOTE:
Relocate the rearward engine lift bracket as shown.

Special Tools

Equivalent regional tools: Special Tools

EN-36857 Engine Lift Bracket

Procedure

Using EN-51768 Engine Support Fixture Adapter Bolt - M8, install the EN-36857 Engine Lift Bracket as shown.
Hand-tighten the lift hook wing nuts securely to remove all slack from the engine support fixture assembly.
