Engine Support Fixture Installation - Bank One Cylinder Head

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Air Cleaner Outlet Duct Replacement Special Tools EN-36857 Engine Lift Bracket EN-52059 Engine Support Fixture Adapter Bolt - M10 Equivalent regional tools: Special Tools
1	EN-36857 Engine Lift Bracket Procedure CAUTION: Refer to Fastener Caution . Use EN-52059 Engine Support Fixture Adapter Bolt - M10 to install a EN-36857 Engine Lift Bracket to the right cylinder head in the location shown. 65 N.m (48 lb ft)

Callout

Component Name

Preliminary Procedures

Air Cleaner Outlet Duct Replacement

Special Tools

EN-36857 Engine Lift Bracket
EN-52059 Engine Support Fixture Adapter Bolt - M10

Equivalent regional tools: Special Tools

EN-36857 Engine Lift Bracket
Procedure

CAUTION:

Refer to Fastener Caution .

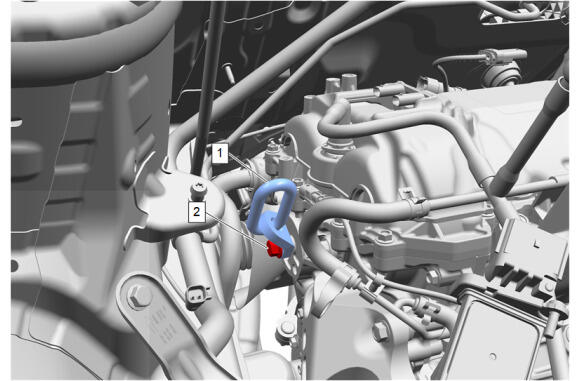

Use EN-52059 Engine Support Fixture Adapter Bolt - M10 to install a EN-36857 Engine Lift Bracket to the right cylinder head in the location shown.
65 N.m (48 lb ft)
