Installation Procedure
WARNING: This page is about a different variant/trim than selected.
Engine Mount - (3) Install
- Engine Mount Fastener - (2) Install
- Engine Mount Fastener - (1) Install
- Preform the powertrain mount balance procedure. Powertrain Mount Balancing
- Tighten the engine mount-to-body bolts (1) to 58 N.m (43 lb ft)

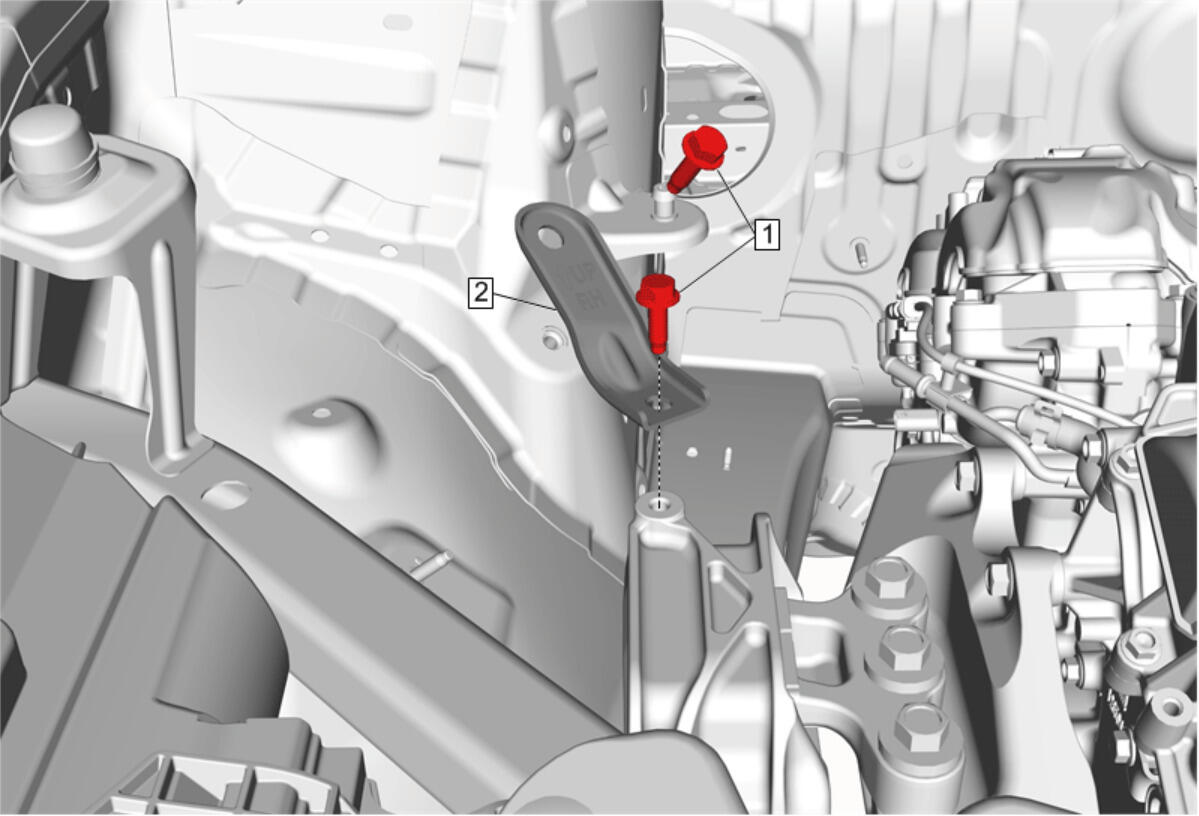

Engine Mount Brace (2) - Install
- Engine Mount Brace Bolt (1) - Install and tighten [2x] 22 N.m (16 lb ft)
- Engine Support Fixture - Remove - Engine Support Fixture
- Air Cleaner Assembly - Install - Air Cleaner Assembly Replacement
NOTE:
Do not tighten the engine mount fasteners at this time.
NOTE:
Do not tighten the engine mount fasteners at this time.
CAUTION:
Refer to Fastener Caution .
