Engine Mount Bracket Replacement - Right Side

WARNING: This page is about a different variant/trim than selected.

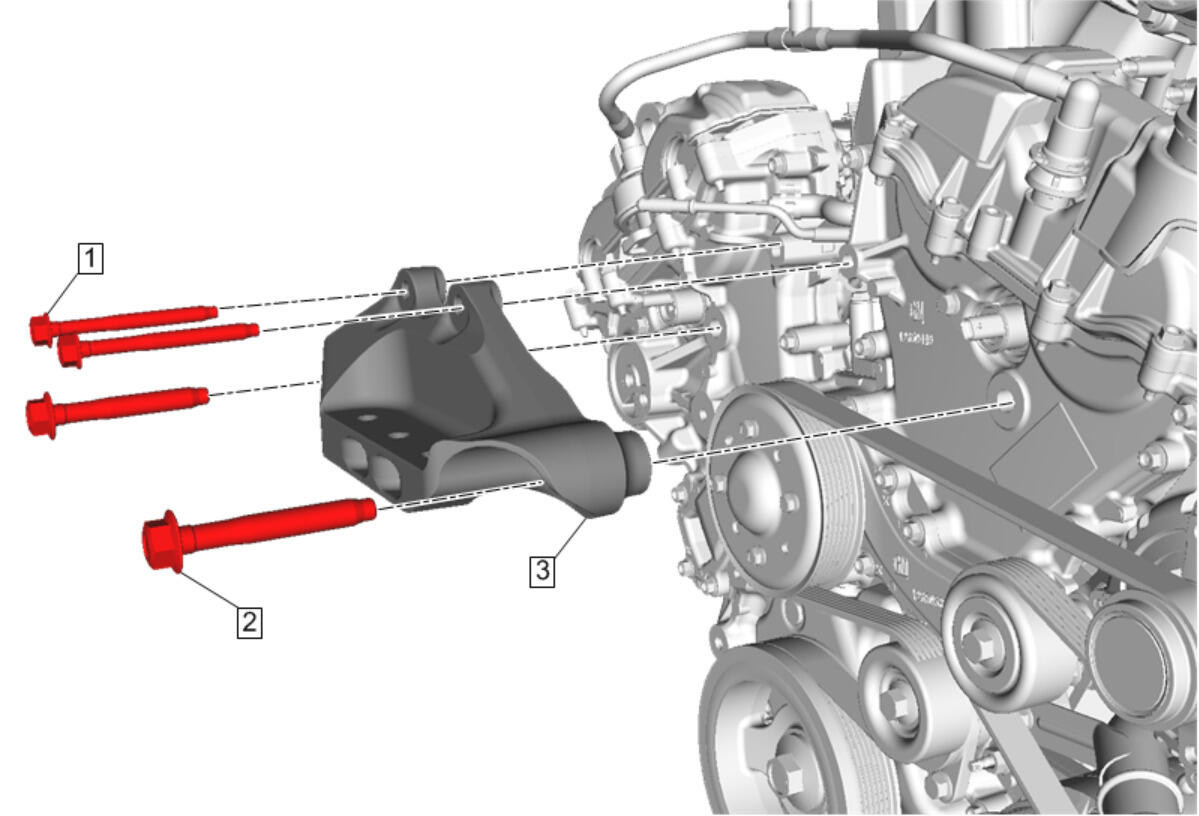

GM4299036Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedures

  1. Air Cleaner Assembly Replacement
  2. Engine Mount Replacement - Right Side
1 Engine Mount Bracket Fastener [2x]
CAUTION:

Refer to Fastener Caution .

NOTE:

Install NEW fasteners.


Tighten
30 N.m (22 lb ft) plus 60-70 degrees
2 Engine Mount Bracket Fastener [2x]
NOTE:

Install NEW fasteners.


Tighten
100 N.m (74 lb ft) plus 60-70 degrees
3 Engine Mount Bracket
