Drive Belt Idler Pulley Replacement

WARNING: This page is about a different variant/trim than selected.

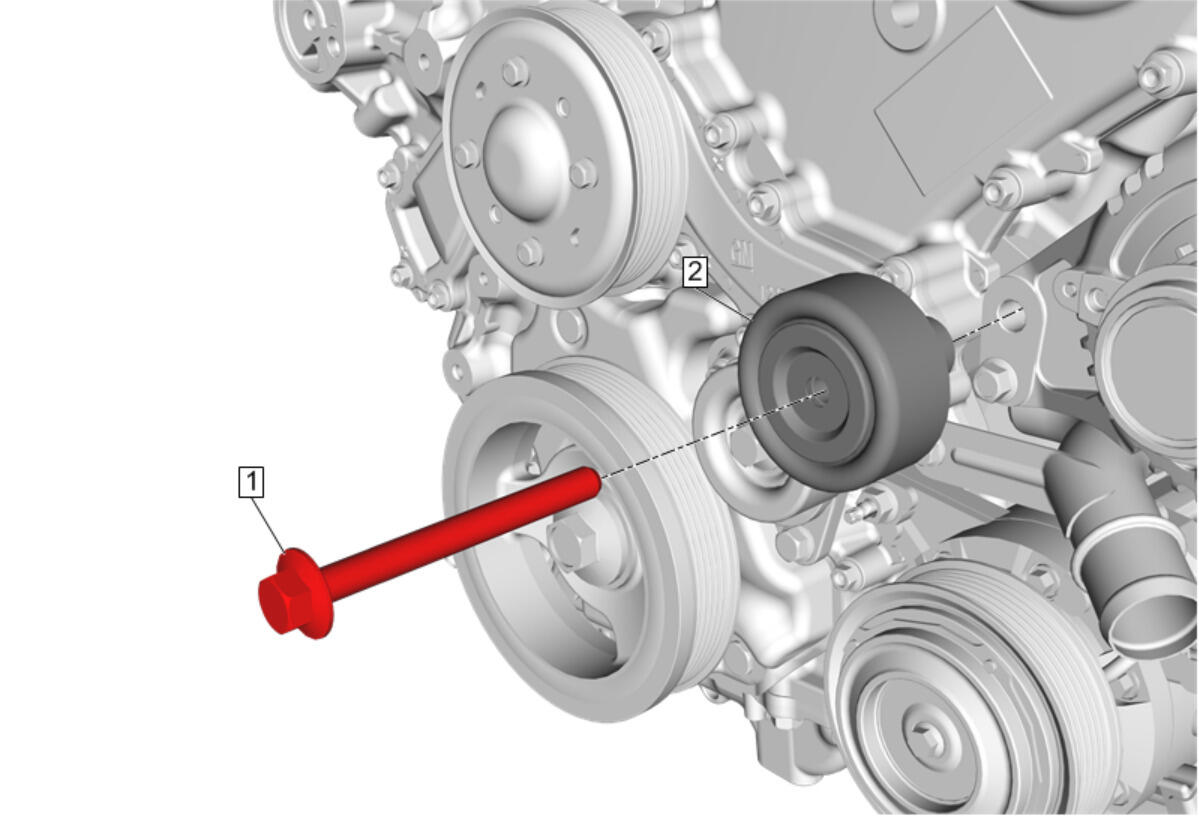

GM4295383Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Drive Belt Replacement
1 Drive Belt Idler Pulley Bolt
CAUTION:

Refer to Fastener Caution .


Tighten
58 N.m (43 lb ft)
2 Drive Belt Idler Pulley
