Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Crankshaft Balancer - Remove - Crankshaft Balancer Replacement

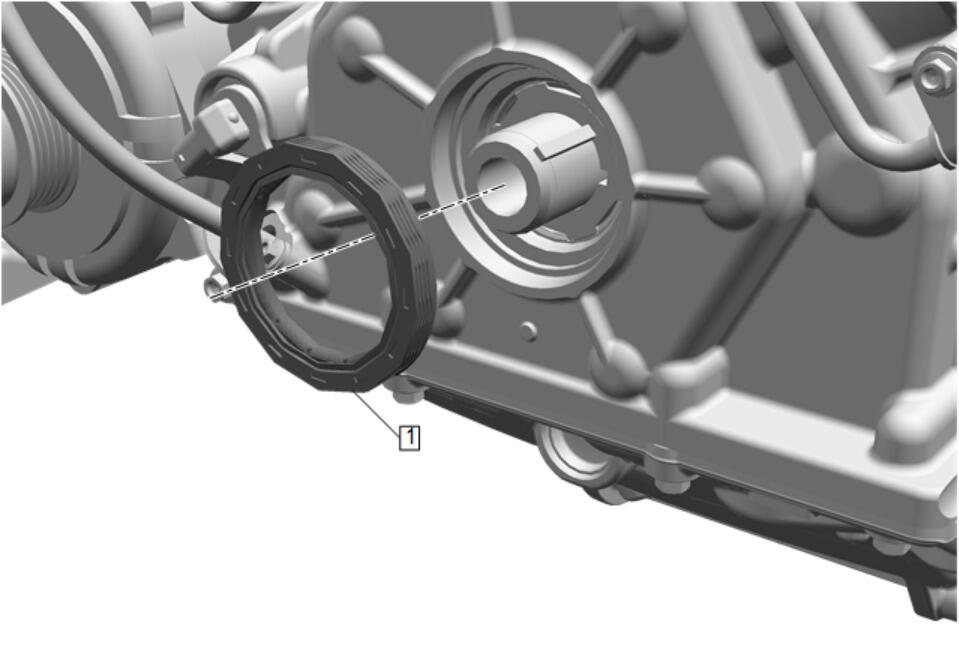

  2. GM5253462Courtesy of GENERAL MOTORS COMPANY

    Remove the crankshaft front cover oil seal (1) with a suitable tool.
