Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not lubricate the crankshaft front oil seal or the crankshaft balancer sealing surfaces.

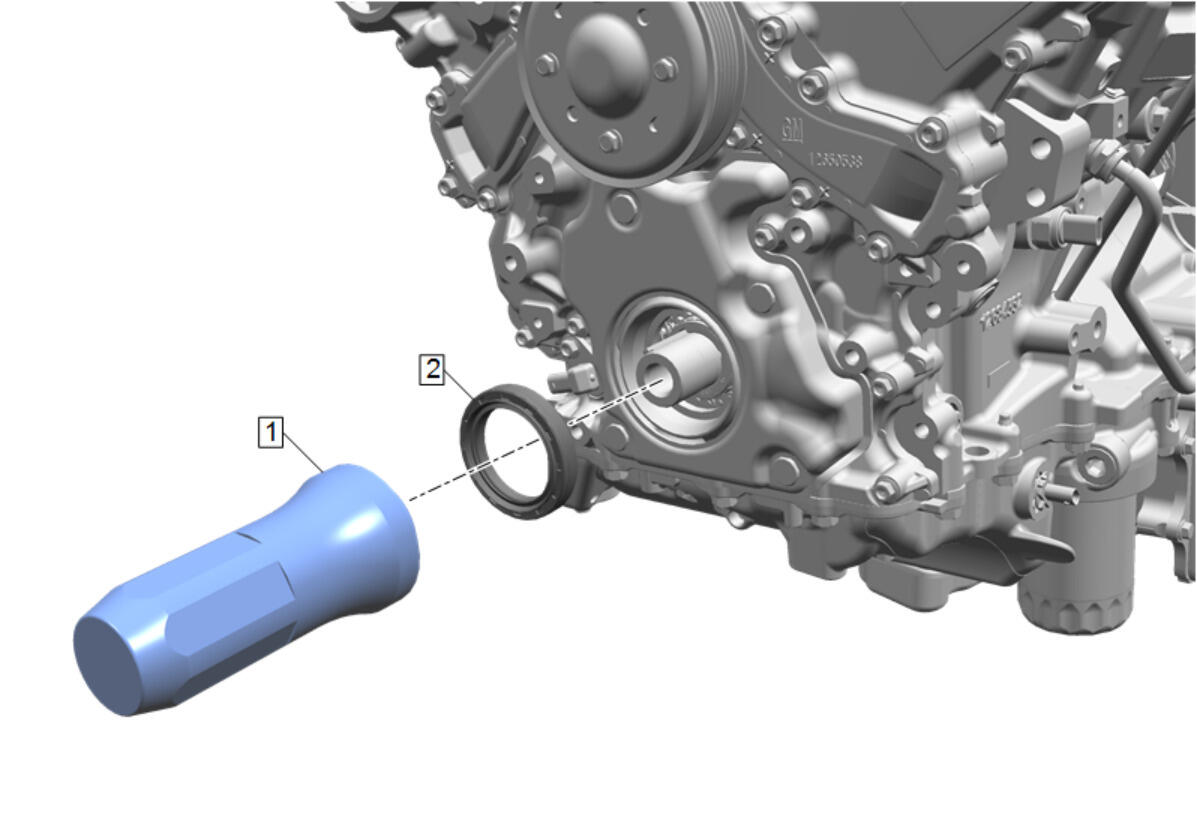

Use the EN-29184 Oil Seal Installer (1) or equivalent to install the crankshaft front oil seal (2).
Crankshaft Balancer - Install - Crankshaft Balancer Replacement
