Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Fig 1: Identifying Drive Belt Routing
Courtesy of GENERAL MOTORS COMPANY

Drive Belt (1) - Remove - Drive Belt Replacement
Courtesy of GENERAL MOTORS COMPANY

Starter (2) - Remove - Starter Replacement (LGX)
Courtesy of GENERAL MOTORS COMPANY

Install the EN-46106 tool (1) through the starter mounting hole.
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Do not discard the crankshaft balancer bolt immediately. The Balancer bolt will be used during the balancer installation.

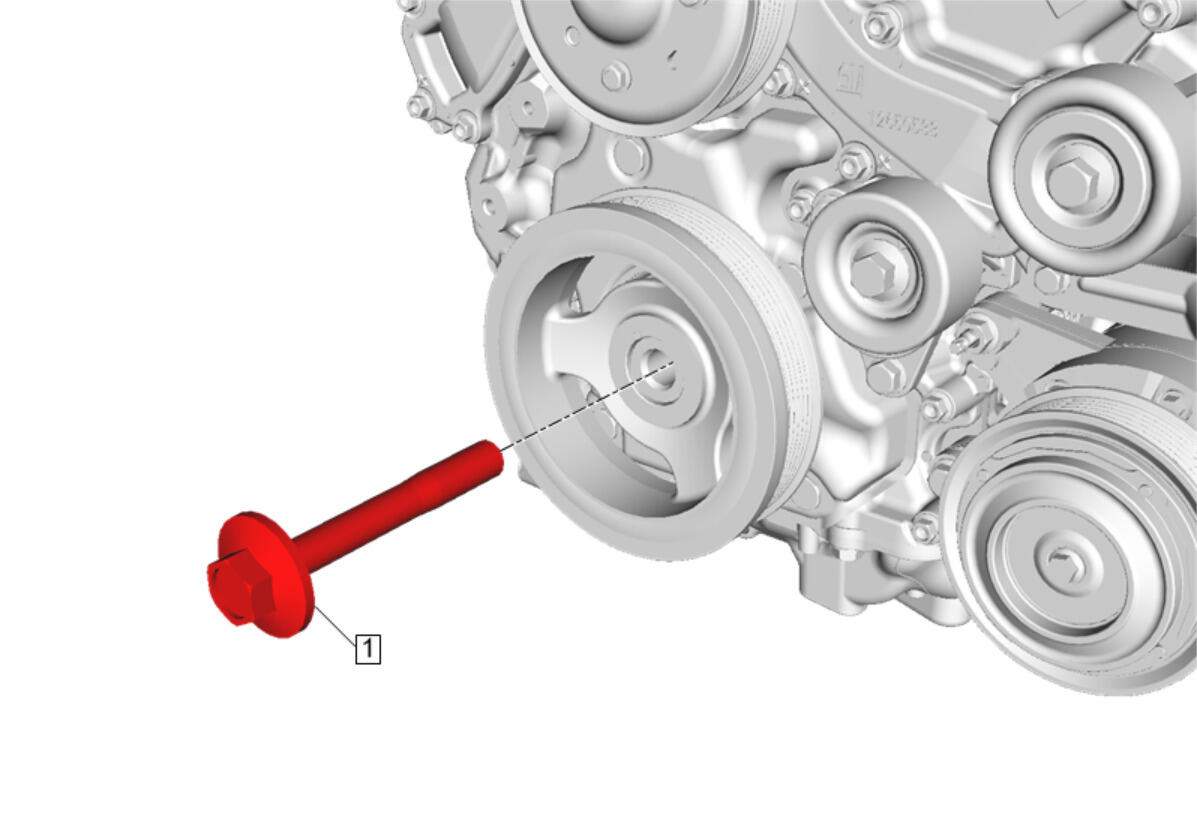

Crankshaft Balancer Bolt (1) - Remove
Courtesy of GENERAL MOTORS COMPANY

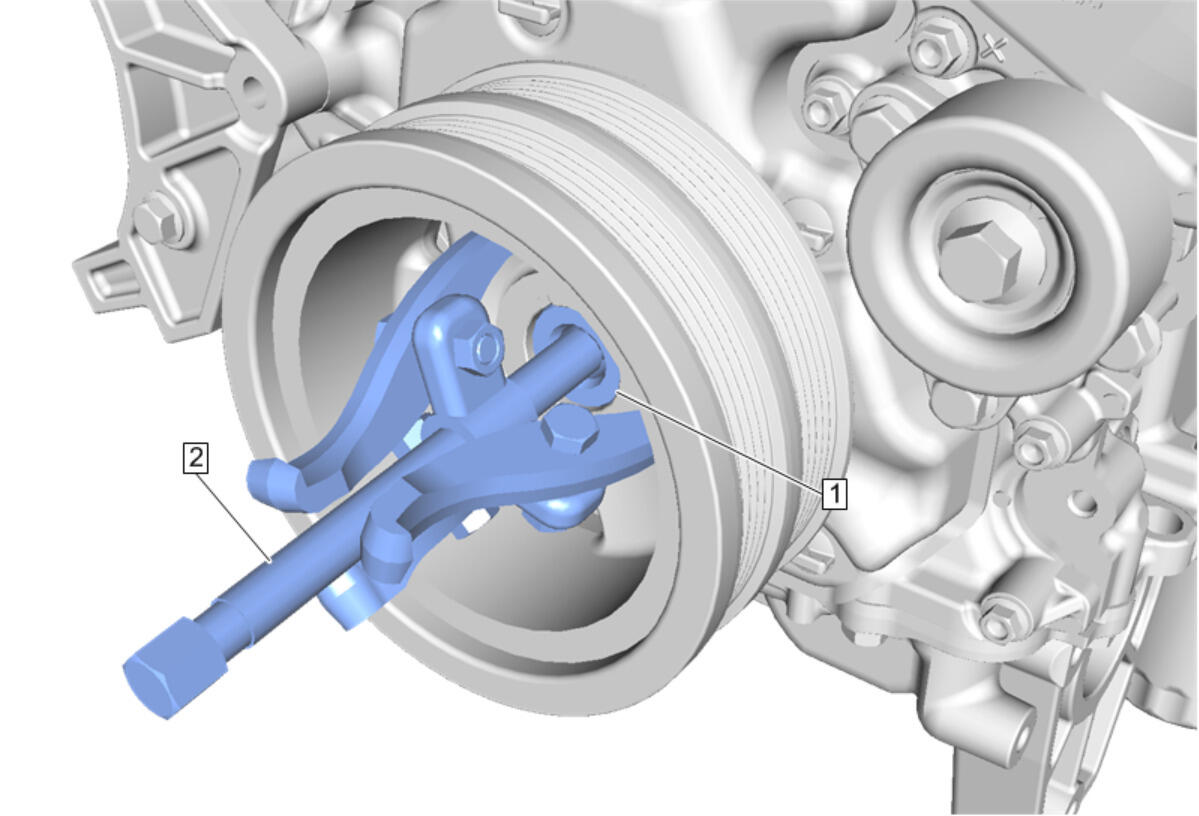

Install the EN-44226-5 protector (1) in the nose of the crankshaft.
Install the EN-41816 remover (2) to remove the crankshaft balancer.
Tighten the center bolt of the EN-41816 remover to pull the crankshaft balancer off of the crankshaft.
Remove the EN-41816 remover from the crankshaft balancer.
Remove the EN-44226-5 protector from the crankshaft.
