Installation Procedure
WARNING: This page is about a different variant/trim than selected.
-
Courtesy of GENERAL MOTORS COMPANY
Place a bead 8 mm (0.3150 in) in width by 4 mm (0.1575 in) in height of RTV sealant equivalent, on the engine front cover split lines (1). Adhesives, Fluids, Lubricants, and Sealers
- Camshaft Cover Seal (2) - Install a NEW seal.
- Camshaft Cover (3) - Install
- Camshaft Cover Bolt (4) - Loosely install [18x]
- Camshaft Cover Bolt (4) - Tighten in the sequence shown. [18x] 15 N.m (11 lb ft)
- Position and install the engine wiring harness to the camshaft cover.

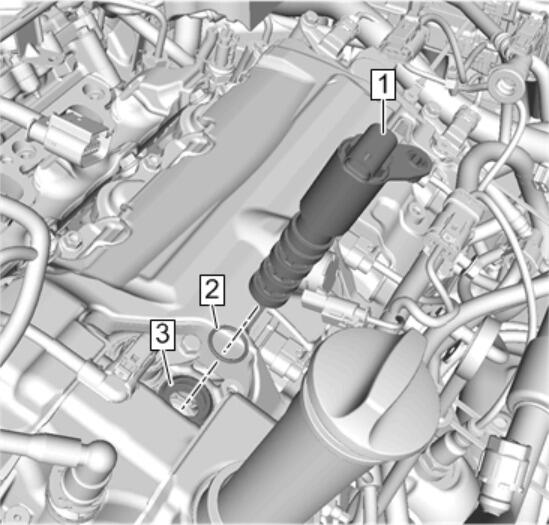

Camshaft Position Actuator Valve Solenoid (1) - Install - Camshaft Position Actuator Valve Solenoid Replacement - Bank 2 (Left Side) Intake
Camshaft Position Actuator Valve Solenoid (1) - Install - Camshaft Position Actuator Valve Solenoid Replacement - Bank 2 (Left Side) Exhaust
Ignition Coil (2) - Install [3x] - Ignition Coil Replacement - Bank 2
- Positive Crankcase Ventilation Tube @ Camshaft Cover - Connect
Camshaft Housing Cover Insulator - Left Side (1) - Install - Camshaft Housing Cover Insulator Replacement - Left Side
CAUTION:
Refer to Fastener Caution .
