Removal Procedure

WARNING: This page is about a different variant/trim than selected.

Oil Pan - Remove - Oil Pan Replacement (AWD) , or Oil Pan Replacement (FWD)
Courtesy of GENERAL MOTORS COMPANY

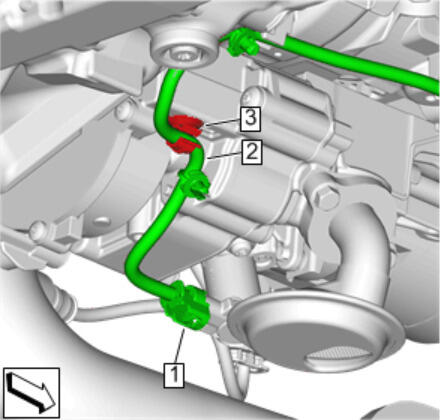

Disconnect the oil pump flow control solenoid valve harness electrical connector (1) from the oil pump flow control solenoid valve.
Remove the oil pump flow control solenoid valve harness (2) from the retainer (3).
Courtesy of GENERAL MOTORS COMPANY

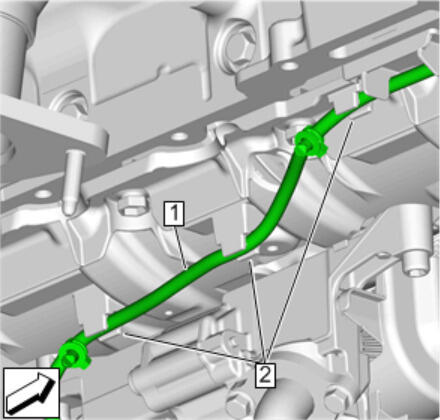

Remove the oil pump flow control solenoid valve harness (1) from the crankshaft oil deflector retainers (2).
Courtesy of GENERAL MOTORS COMPANY

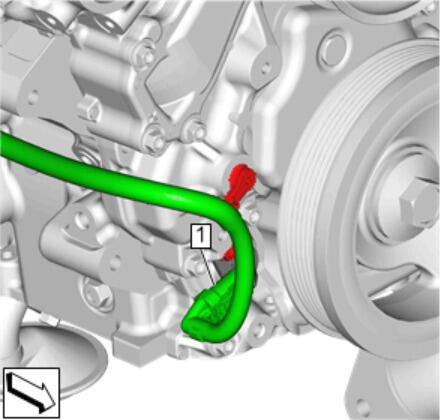

Disconnect the engine wiring harness electrical connector (1) from the oil pump flow control solenoid valve harness connector.
Courtesy of GENERAL MOTORS COMPANY

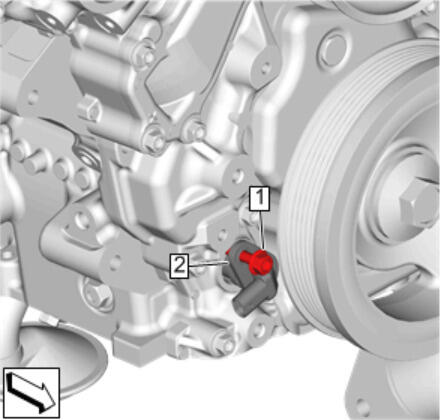

Remove the oil pump flow control solenoid valve harness bolt (1).
Remove the oil pump flow control solenoid valve harness connector (1) and guide the harness through the hole in the engine block.
