Removal Procedure
WARNING: This page is about a different variant/trim than selected.
- Relieve the fuel system pressure. Fuel Pressure Relief
- Drain the fuel tank. Fuel Tank Draining
- Raise and support the vehicle. Lifting and Jacking the Vehicle
- Driveline Torque Tube - Remove - Driveline Torque Tube Replacement
Wiring Harness (1) - Disconnect
- Fuel Tank Filler Hose Clamp (2) - Loosen
- Fuel Tank Filler Hose (3) - Remove

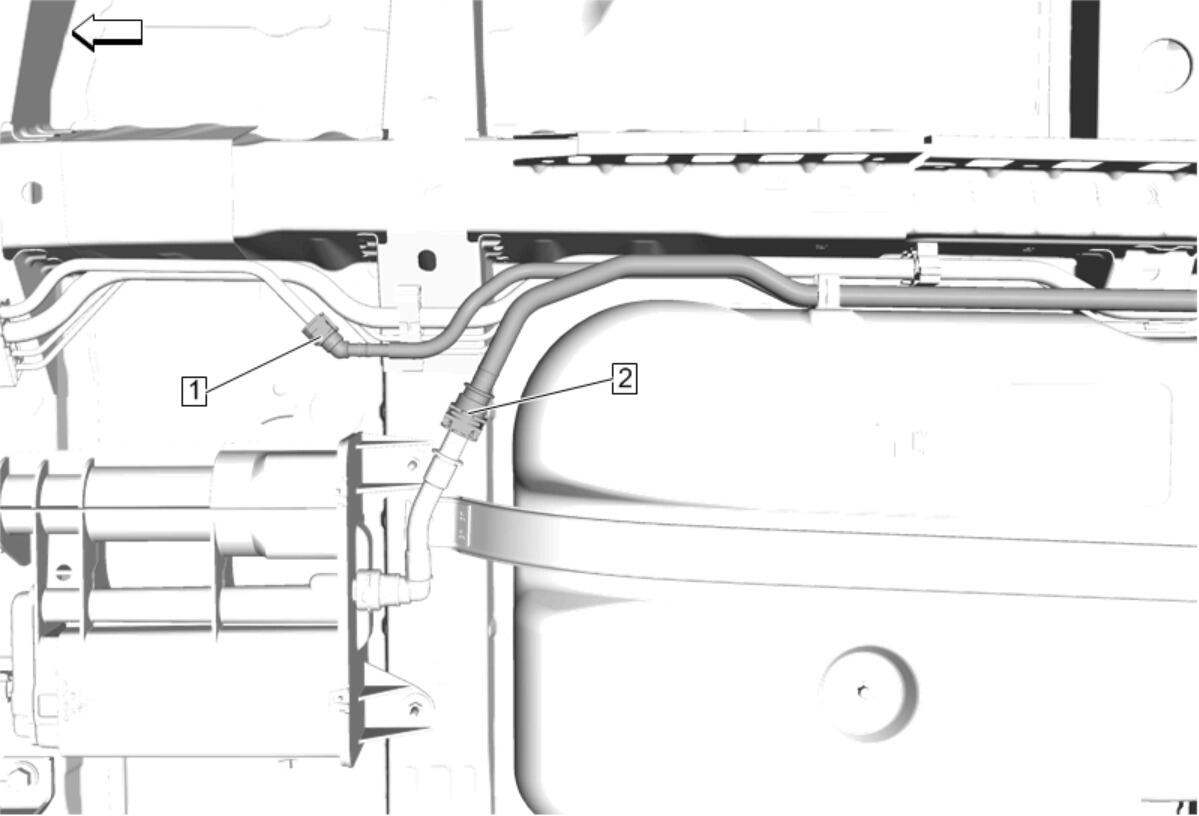

- Evaporative Emission Canister Vent Hose (4) - Disconnect - Plastic Collar Quick Connect Fitting Service
Fuel Pump Fuel Feed Hose (1) - Disconnect - Plastic Collar Quick Connect Fitting Service
- Evaporative Emission Canister Vent Hose (2) - Disconnect - Plastic Collar Quick Connect Fitting Service
Place a suitable adjustable jack under the fuel tank.
- Fuel Tank Strap Bolt (1) - Remove [4x]
- Fuel Tank Strap (2) - Remove [2x]
Fuel Tank (1) - Remove
- If replacing fuel tank transfer parts as necessary.
WARNING:
Refer to Diesel/Gasoline Vapors Warning .
WARNING:
Refer to Safety Glasses Warning .
