Evaporative Emission Canister Air Inlet Hose Replacement (FWD)

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Diesel/Gasoline Vapors Warning . WARNING: Refer to Safety Glasses Warning . Preliminary Procedure Raise and support the vehicle. Lifting and Jacking the Vehicle

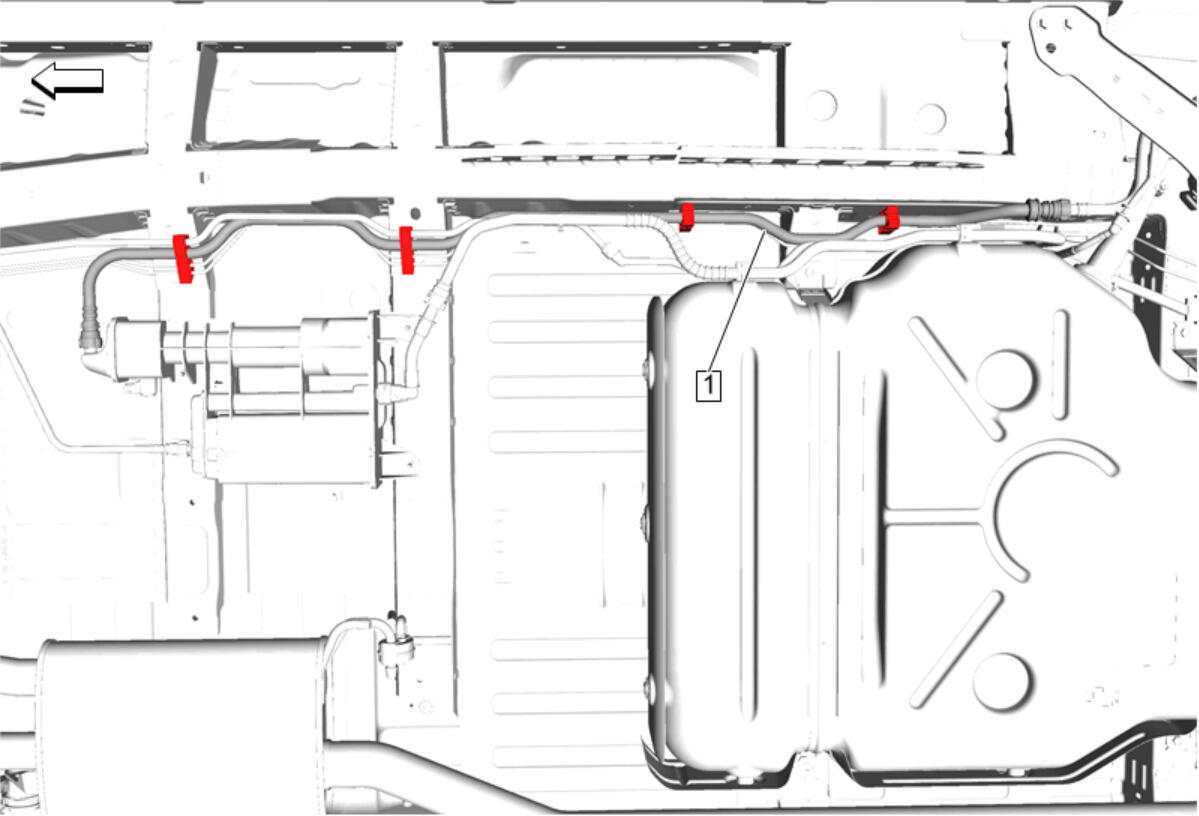

1	Evaporative Emission Canister Air Inlet Hose Procedure Disconnect the quick connect fittings and remove from the 4 retainers. Plastic Collar Quick Connect Fitting Service
