Removal Procedure

WARNING: This page is about a different variant/trim than selected.
  1. Front Bumper Fascia - Remove - Front Bumper Fascia Removal and Installation

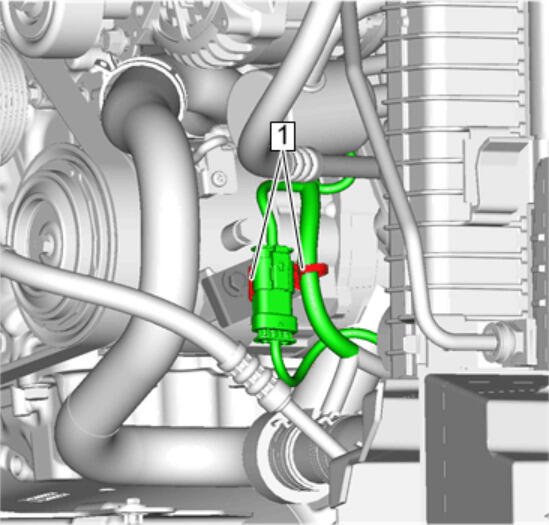

  2. GM4373897Courtesy of GENERAL MOTORS COMPANY

    Retainer (1) - Unclip [2x]

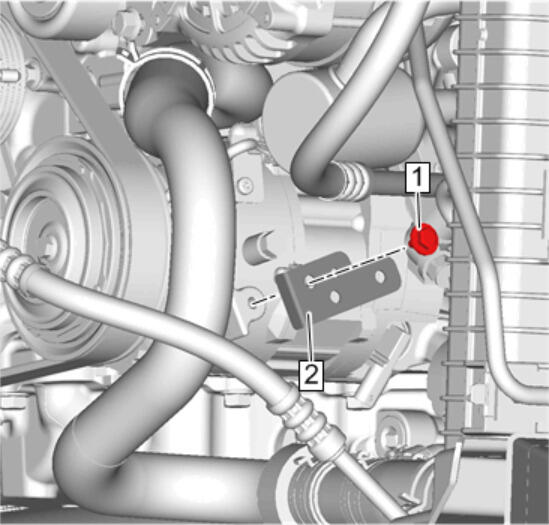

  3. GM4373918Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Oxygen Sensor Lead Clip Bolt (1) - Remove

  4. Engine Wiring Harness Oxygen Sensor Lead Bracket (2) - Remove
