Installation Procedure

WARNING: This page is about a different variant/trim than selected.

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Inspect the valve seal and replace as necessary.

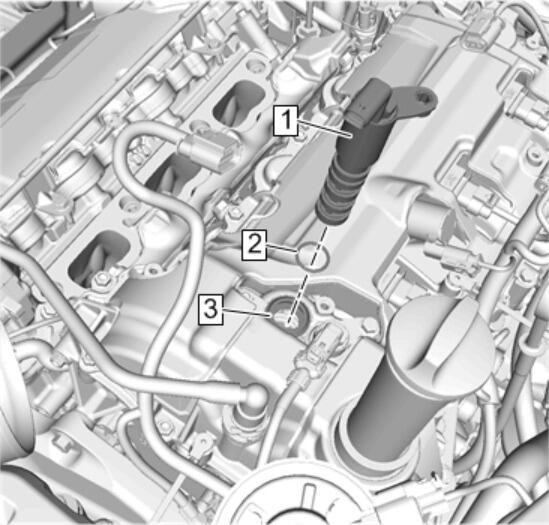

Camshaft Position Actuator Solenoid Valve Seal (3) - Install
Camshaft Position Actuator Solenoid Valve (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

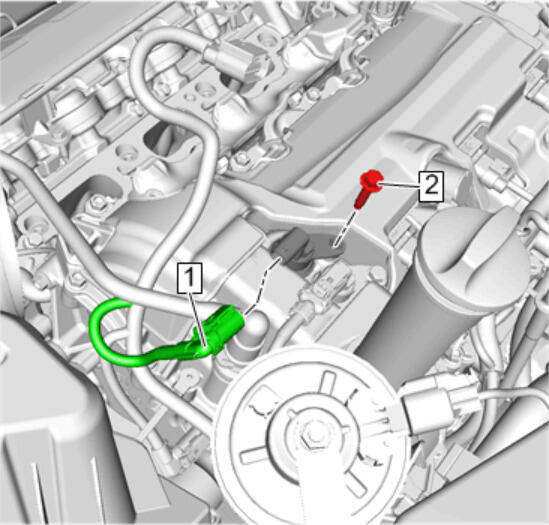

Camshaft Position Actuator Solenoid Valve Bolt (2) - Install and tighten to 10 N.m (89 lb in)
Electrical Connector (1) - Connect
Intake Manifold - Install - Intake Manifold Replacement
