Camshaft Position Actuator Valve Solenoid Replacement - Bank 1 (Right Side) Exhaust
WARNING: This page is about a different variant/trim than selected.

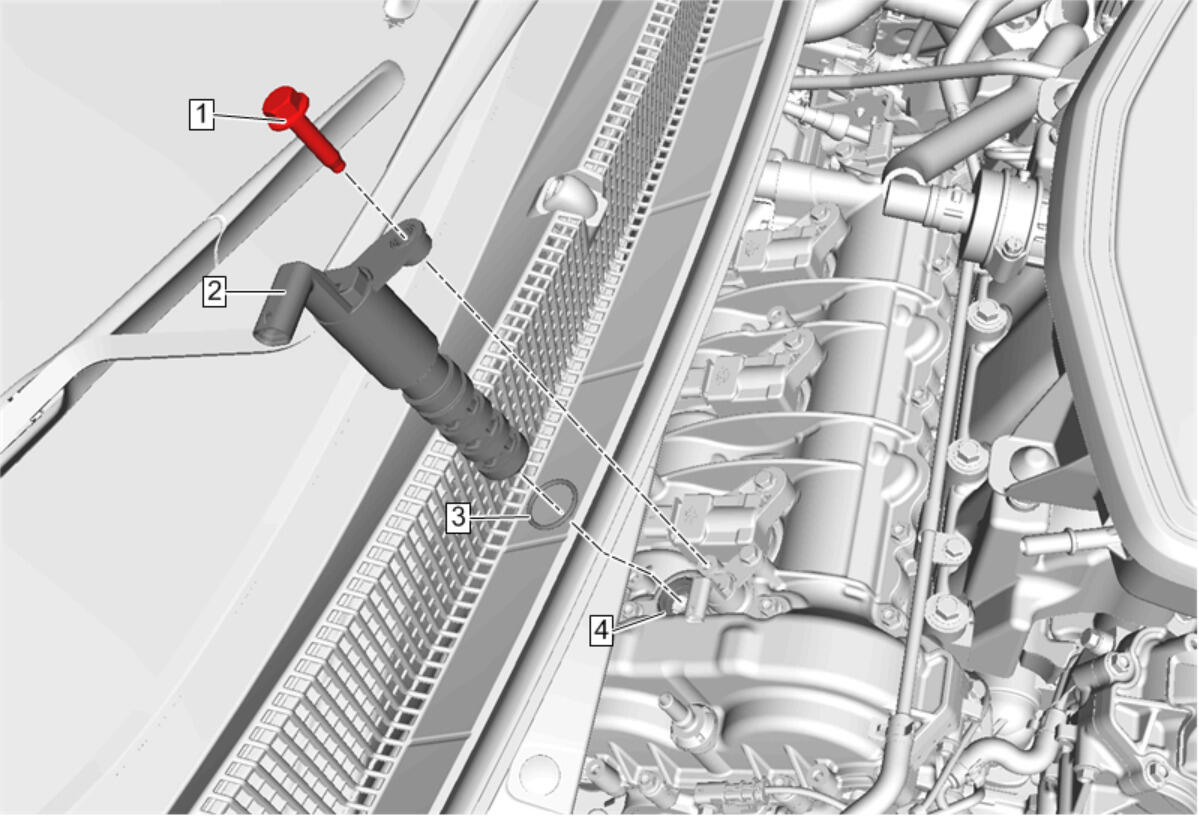

| Callout | Component Name |
|---|---|
| Preliminary Procedure Camshaft Housing Cover Insulator Replacement - Right Side |
|
| 1 | Camshaft Position Actuator Solenoid Valve Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 2 | Camshaft Position Actuator Solenoid Valve |
| 3 | O-Ring
NOTE:
Inspect the O-ring and replace if necessary. |
| 4 | Camshaft Position Actuator Solenoid Valve Seal
NOTE:
Inspect the camshaft position actuator solenoid valve seal and replace as necessary. |
