Section 12 (Engine Mechanical - 3.6L (LGX) - Schematic Wiring Diagrams)
>>
Schematic Wiring Diagrams
>>
Engine Mechanical Wiring Schematics
>>

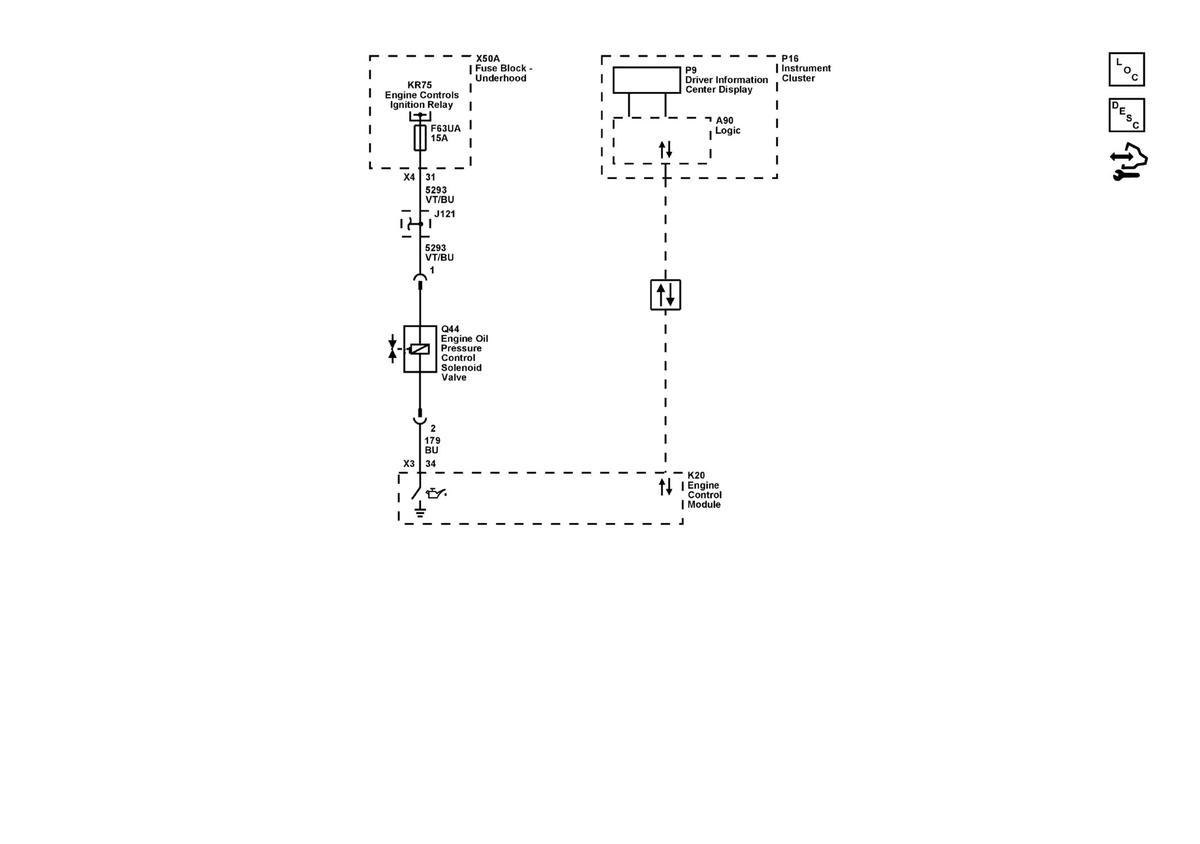

Oil Level Switch and Pressure Control (LGX)
Oil Level Switch and Pressure Control (LGX)
WARNING:
This page is about a different variant/trim than selected.
Courtesy of GENERAL MOTORS COMPANY
