Radiator Inlet Hose Replacement (LGX)

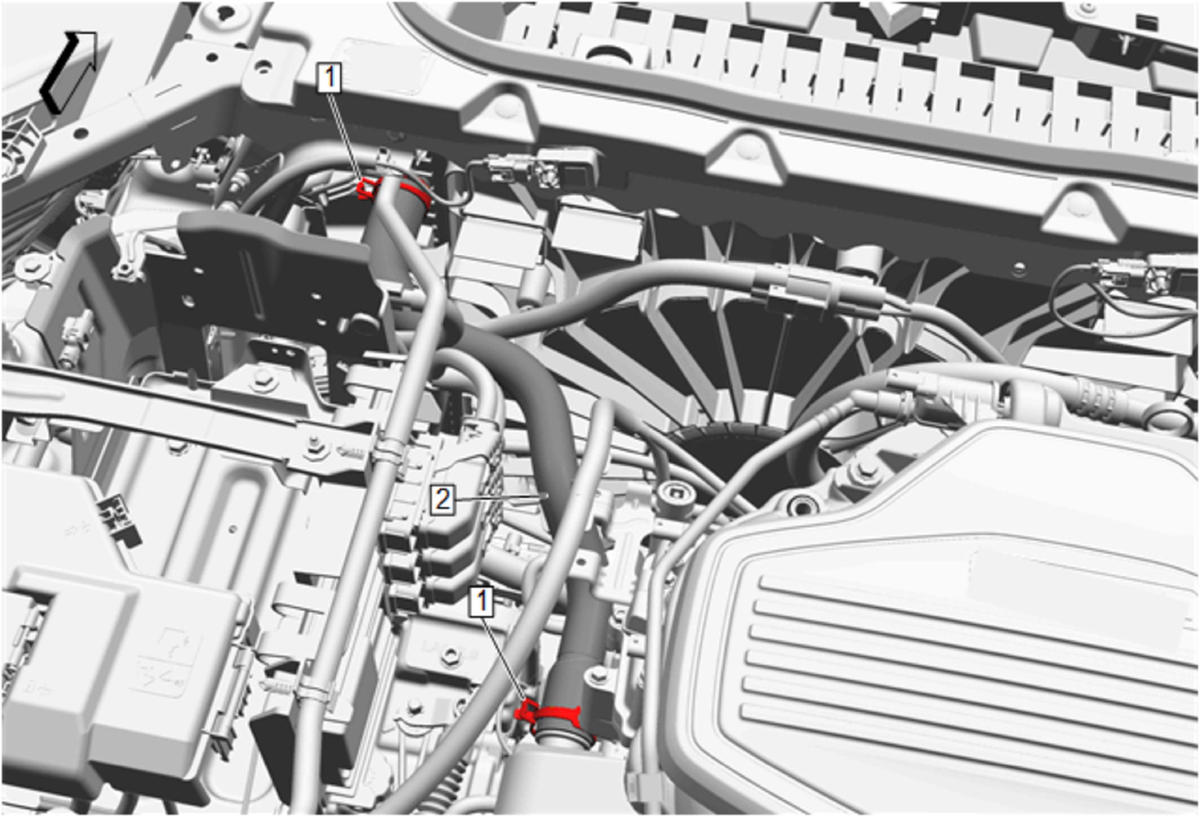

GM5341864Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
Preliminary Procedure
Drain the cooling system. Cooling System Draining and Filling (Static Fill LGX) , or Cooling System Draining and Filling (GE 47716 LGX)
1 Radiator Inlet Hose Clamp [2x]
Procedure
Hose Clamp Replacement Guidelines - Spring Type
2 Radiator Inlet Hose

Procedure

  1. Fill the cooling system to the proper level. Cooling System Draining and Filling (Static Fill LGX) , or Cooling System Draining and Filling (GE 47716 LGX)
  2. Start the engine and check for coolant leaks.
