Rear Tire Front Air Deflector Replacement

Courtesy of GENERAL MOTORS COMPANY

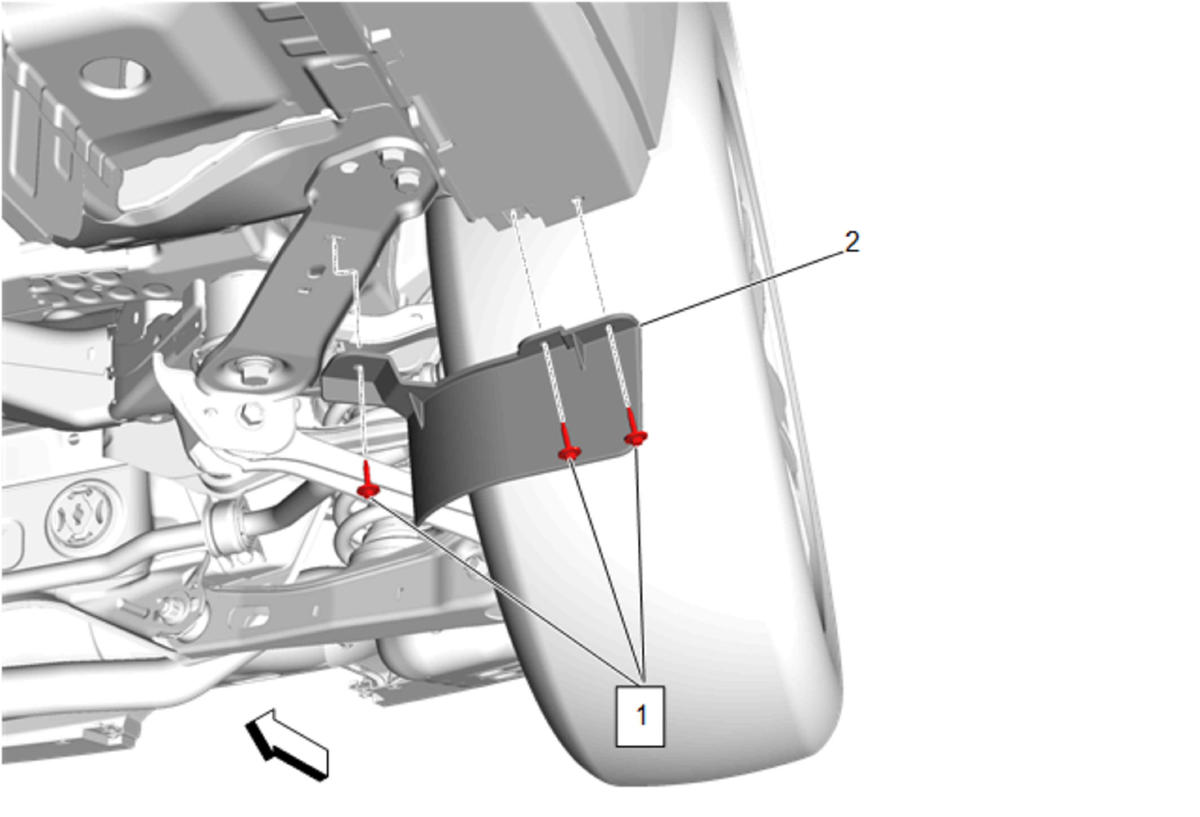

Callout	Component Name
Preliminary Procedure  Lifting and Jacking the Vehicle
1	Rear Tire Front Air Deflector Screw [3x] CAUTION: Refer to Fastener Caution Tighten  2.5 N.m (22 lb in)
2	Rear Tire Front Air Deflector
