Removal Procedure

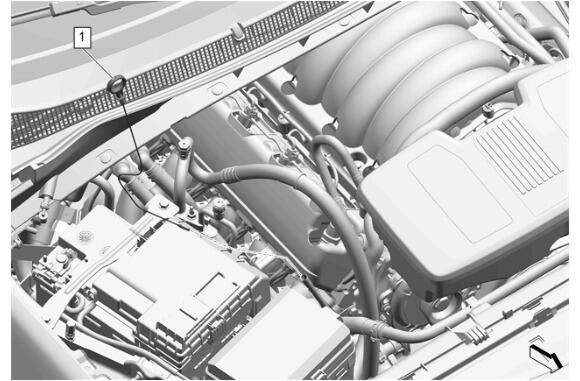

  1. GM5535974Courtesy of GENERAL MOTORS COMPANY

    Remove the oil level indicator. (1)

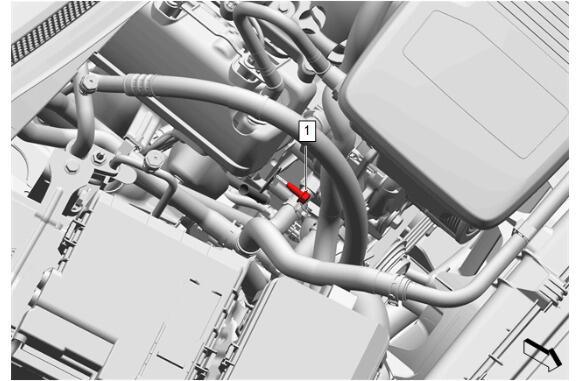

  2. GM5535975Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube Bolt (1) - Remove

  3. Raise and support the vehicle. Lifting and Jacking the Vehicle

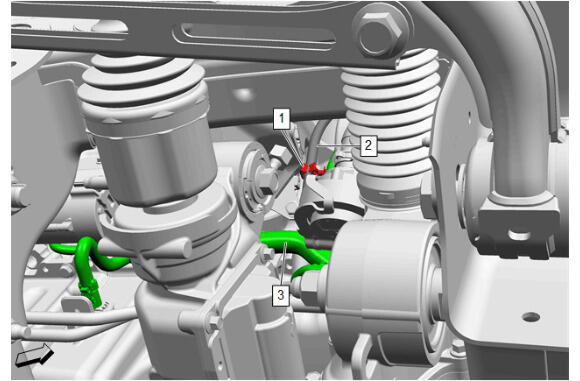

  4. GM5535977Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Retainer (1) @ Oil Level Indicator Tube (2) - Disconnect

  5. Engine Wiring Harness (3) - Reposition
  6. Lower the vehicle.

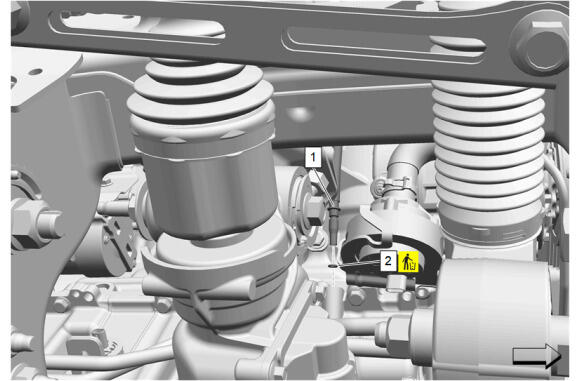

  7. GM5535978Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube (1) @ Oil Pan - Remove

  8. Oil Level Indicator Tube (1) - Remove
  9. Oil Level Indicator Seal (2) - Remove and DISCARD
