Removal Procedure

Courtesy of GENERAL MOTORS COMPANY

Air Cleaner Outlet Duct Bracket Bolt (1) - Remove
Remove engine wiring harness from air cleaner outlet duct bracket.
Courtesy of GENERAL MOTORS COMPANY

Positive Crankcase Ventilation Fresh Air Tube (1) - Disconnect - Plastic Collar Quick Connect Fitting Service
Air Cleaner Outlet Duct Clamp (2) - Loosen [ 2x ]
Air Cleaner Outlet Duct (3) - Remove
Courtesy of GENERAL MOTORS COMPANY

Plenum Front Panel Outer Reinforcement (1) - Remove - Plenum Front Panel Outer Reinforcement Removal and Installation
Courtesy of GENERAL MOTORS COMPANY

Evaporative Emission Canister Purge Tube Connector (1) @ Evaporative Emission Canister Purge Solenoid Valve - Disengage - Plastic Collar Quick Connect Fitting Service
Evaporative Emission Canister Purge Tube (2) @ Evaporative Emission Canister Purge Solenoid Valve - Remove and position aside
Courtesy of GENERAL MOTORS COMPANY

Engine Wiring Harness Connector (1) @ Throttle Body - Disconnect
Engine Wiring Harness Retainer (2) @ Intake Manifold Cover - Remove [ 2x ]
Engine Wiring Harness Connector (3) @ Manifold Absolute Pressure Sensor - Disconnect
Engine Wiring Harness Connector (4) @ Evaporative Emission Canister Purge Solenoid Valve - Disconnect
Courtesy of GENERAL MOTORS COMPANY

Engine Wiring Harness Retainer (1) @ Intake Manifold Cover (2) - Remove [ 4x ]
Courtesy of GENERAL MOTORS COMPANY

Engine Wiring Harness Retainer (1) @ Intake Manifold Cover (2) - Remove [ 3x ]
Courtesy of GENERAL MOTORS COMPANY

Engine Wiring Harness Retainer (1) @ Intake Manifold Cover (2) - Remove [ 4x ]
Courtesy of GENERAL MOTORS COMPANY

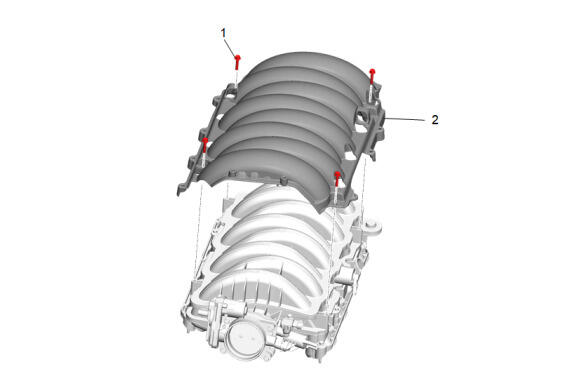

Intake Manifold Cover Bolt (1) - Remove [ 4x ]
Intake Manifold Cover (2) - Remove
