Installation Procedure

  1. GM5571633Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The 4 bank 2 fuel injector seals (1) should be clean and free of debris prior to installation.

    NOTE:

    Do NOT use any type of lubricant when installing the NEW 4 bank 2 fuel injector seals (1) on the fuel injector.

    Fuel Injector Seal (1) - Install NEW [ 4x ]

  2. GM5044586Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The 8 bank 2 fuel injector nozzle housing seals (2) should be clean and free of debris prior to installation.

    NOTE:

    Do NOT use any type of lubricant when installing NEW 8 bank 2 fuel injector nozzle housing seals (2) on the fuel injector.

    Install the 8 bank 2 fuel injector nozzle housing seals (2) as follows:

    1. Install EN-51105-1  Injector Seal Installer and Sizer (3) onto the fuel injector tip, covering the first recessed area closest to the tip.
    2. Place a new seal (2) on the EN-51105-1  Injector Seal Installer and Sizer.
    3. Using EN-49245-3  Fuel Injection Seal Installer/Sizer (1), install the seal onto the second recessed area (4) of the fuel injector.
      4. NOTE:

      EN-49245-4  Fuel Injection Seal Installer/Sizer is two sided, and either direction will size the seal correctly.

    4. Compress the seal with your fingers, then size the seal using EN-49245-4  Fuel Injection Seal Installer/Sizer (5).
    5. GM5044590Courtesy of GENERAL MOTORS COMPANY
      NOTE:

      Do NOT use any type of lubricant when installing NEW fuel injector nozzle housing seals (2) on the injector.

      Install EN-51105-2  Injector Seal Installer and Sizer (3) onto the fuel injector tip.

    6. Place a NEW fuel injector nozzle housing seal (2) on EN-51105-2  Injector Seal Installer and Sizer.
    7. Using EN-49245-3  Fuel Injection Seal Installer/Sizer (1), install the fuel injector nozzle housing seal onto the first recessed area (4) of the fuel injector.
      8. NOTE:

      The EN-49245-4  Fuel Injection Seal Installer/Sizer is two sided, and either direction will size the seal correctly.

    8. Compress the seal with your fingers, then size the fuel injector nozzle housing seal using the EN-49245-4  Fuel Injection Seal Installer/Sizer (5).

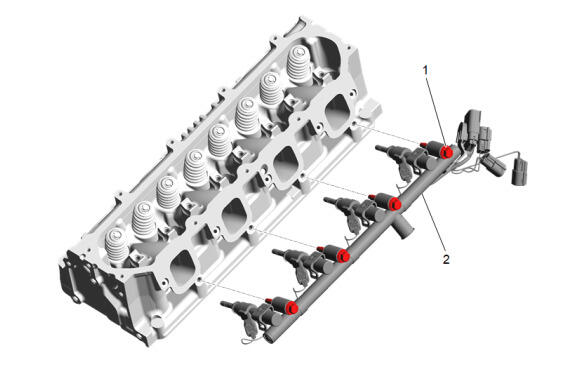

  3. GM5617245Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The 4 bank 2 fuel injection fuel rail bolts (1) are retained into the fuel injection fuel rail (2). Care should be taken to ensure that the thread locking is installed after the 4 bank 2 fuel injection fuel rail bolts (1) are installed to the bank 2 fuel injection fuel rail (2).

    Install the 4 fuel injection fuel rail bolts (1) to the bank 2 fuel injection fuel rail (2).

  4. Prepare the 4 bank 2 fuel injection fuel rail bolts (1) for installation as follows:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  5. Install the bank 2 fuel injection fuel rail (2) to the right side cylinder head.
  6. Fuel Injection Fuel Rail Bolt (1) - Hand tighten [ 4x ]
    7. CAUTION:

    Refer to Fastener Caution

  7. Fuel Injection Fuel Rail Bolt (1) - Tighten [ 4x ] - Fastener Specifications

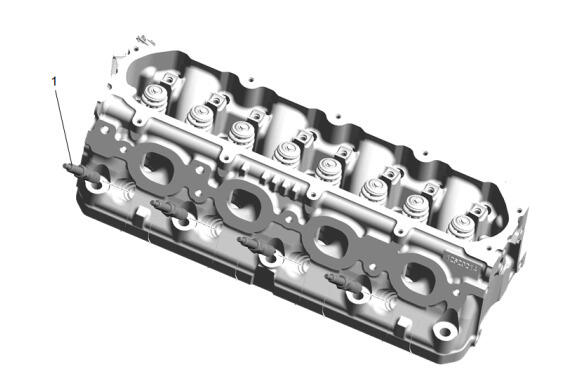

  8. GM5617246Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Component Fastener Tightening Caution

    Gas Engine Ignition Spark Plug (1) - Install and tighten [ 4x ] - Fastener Specifications

  9. GM5584910Courtesy of GENERAL MOTORS COMPANY

    Cylinder Head Gasket (2) - Install NEW

  10. Cylinder Head (1) - Install
  11. GM5584908Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    This vehicle is equipped with torque-to-yield or single use fasteners. Install a NEW torque-to-yield or single use fastener when installing this component. Failure to replace the torque-to-yield or single use fastener could cause damage to the vehicle or component.

    Cylinder Head Bolt (1) - Install NEW and hand tighten [ 10x ]

  12. Cylinder Head Bolt (1) - Tighten in sequence [ 10x ] - Fastener Specifications
  13. Connect the electrical wiring harness connectors to the bank 2 fuel injection fuel rail.
  14. GM5585062Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Generator Bolt (1) - Install and tighten - Fastener Specifications

  15. GM5584907Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness (2) @ Cylinder Head - Connect

  16. Engine Wiring Harness Ground Bolt (1) - Install and tighten - Ground Repair
  17. GM5569717Courtesy of GENERAL MOTORS COMPANY

    Lubricate the flange of the 8 valve rocker arm bolts with clean engine oil. Adhesives, Fluids, Lubricants, and Sealers

  18. Lubricate the 8 valve rocker arms and push rods with clean engine oil. Adhesives, Fluids, Lubricants, and Sealers
    19. NOTE:
    • When using the valve train components again, always install the components to the original location and position.
    • Valve lash is net build. No valve adjustment is required.
    • Ensure the push rods seat properly to the valve lifter sockets.
    • The rocker arm bolts are not serviced separately.
    • DO NOT tighten the rocker arm bolts at this time.
  19. Valve Push Rod (1) - Install [ 8x ]
  20. GM5569716Courtesy of GENERAL MOTORS COMPANY

    Valve Rocker Arm (2) - Install [ 8x ]

  21. Valve Rocker Arm Pivot Support Bolt (1) - Hand tighten [ 8x ]
  22. Valve Rocker Arm Pivot Support Bolt (1) - Tighten [ 8x ] - Fastener Specifications
  23. GM5549964Courtesy of GENERAL MOTORS COMPANY

    Valve Rocker Arm Cover Gasket (2) @ Valve Rocker Arm Cover (1) - Install NEW

  24. GM5549960Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Valve Rocker Arm Cover- Right Side (2) - Install

  25. Valve Rocker Arm Cover Bolt (1) - Hand tighten [ 10x ]
  26. Valve Rocker Arm Cover Bolt (1) - Tighten in sequence [ 10x ] - Fastener Specifications
  27. Engine Wiring Harness Connector @ Ignition Coil - Connect [ 4x ]
  28. GM5549959Courtesy of GENERAL MOTORS COMPANY

    Heater Inlet and Outlet Hose Bracket (2) - Reposition

  29. Heater Hose Clip Bracket Bolt (1) - Install and tighten - Fastener Specifications
  30. GM5535975Courtesy of GENERAL MOTORS COMPANY

    Oil Level Indicator Tube @ Cylinder Head - Right Side - Install

  31. Oil Level Indicator Tube Bolt (1) - Install and tighten - Fastener Specifications
  32. GM5536408Courtesy of GENERAL MOTORS COMPANY

    Valve Rocker Arm Cover Insulator (3) - Install

  33. Install the 3 upper intake manifold sight shield grommets (2) to the 3 valve rocker arm cover insulator retainers (1).
  34. GM5614523Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do NOT reuse the fuel feed intermediate pipe (1). If the 2 fuel feed intermediate pipe nuts (3) are loosened or the fuel feed intermediate pipes are removed, the fuel feed intermediate pipes MUST be replaced.

    Fuel Feed Intermediate Pipe (1) - Install NEW

    1. Slide the 2 fuel feed intermediate pipe nuts (3) back along fuel feed intermediate pipe (1) to reveal the 2 formed ends (2) of the fuel feed intermediate pipe (1).
    2. Carefully install the 2 formed ends (2) of the fuel feed intermediate pipe (1) into the sockets of the left and right fuel injection fuel rail. Take care not to hit the 2 formed ends (2) of the fuel feed intermediate pipe (1) on the threaded sockets on the fuel injection fuel rails.
    3. Hold the fuel feed intermediate pipe (1) firmly in place and hand tighten the 2 fuel feed intermediate pipe nuts (3).
  35. Fuel Feed Pipe Bolt (4) - Tighten - Fastener Specifications
  36. Fuel Feed Intermediate Pipe Nut (3) - Tighten [ 2x ] - Fastener Specifications
  37. GM5608922Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Do NOT reuse the fuel feed intermediate pipe (1). If the 2 fuel feed intermediate pipe nuts (2) are loosened or the fuel feed intermediate pipes are removed, the fuel feed intermediate pipes MUST be replaced.

    Fuel Feed Intermediate Pipe (1) - Install NEW

    1. Slide the 2 fuel feed intermediate pipe nuts (2) back along fuel feed intermediate pipe (1) to reveal the 2 formed ends (3) of the fuel feed intermediate pipe (1).
    2. Carefully install the 2 formed ends (3) of the fuel feed intermediate pipe (1) into the sockets of the fuel pump (4) and the fuel feed intermediate pipe (5). Take care not to hit the 2 formed ends (3) of the fuel feed intermediate pipe (1) on the threaded sockets of the fuel pump (4) and fuel feed intermediate pipe (5).
    3. Hold the fuel feed intermediate pipe (1) firmly in place and hand tighten the 2 fuel feed intermediate pipe nuts (2).
  38. Fuel Feed Intermediate Pipe Nut (2) - Tighten [ 2x ] - Fastener Specifications
  39. Connect fuel injection fuel rail connectors as needed.
  40. GM5557530Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    The noise cancelling foam component MUST be replaced if it has been exposed to engine fluids. Failure to replace the noise cancelling foam component that has been exposed to engine fluids may result in an engine fire resulting in catastrophic engine damage, and possible injury or death.

    Fuel Pump Insulator (1) - Install

  41. Prepare the 10 intake manifold bolts for installation as follows:
    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  42. Remove the covers from the cylinder head passages.
  43. GM5541471Courtesy of GENERAL MOTORS COMPANY

    Intake Manifold Gasket (1) - Install NEW [ 8x ]

  44. GM5540978Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The aid of an assistant may be helpful in holding the engine harness up out of the way so the upper intake manifold cover does not get caught against the engine harness.

    Position the intake manifold and Intake manifold cover (1) to install harness retainers.

  45. GM5540975Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Retainer (1) @ Intake Manifold Cover (2) - Install [ 3x ]

  46. Move the intake manifold and intake manifold cover (2) into place.
  47. GM5540977Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    Some components not shown for graphic clarity.

    Intake Manifold Bolt (1) - Hand tighten [ 10x ]

  48. Intake Manifold Bolt (1) - Tighten in sequence [ 10x ] - Fastener Specifications
  49. GM5527888Courtesy of GENERAL MOTORS COMPANY

    Positive Crankcase Ventilation Tube Connector (2) @ Intake Manifold - Install - Plastic Collar Quick Connect Fitting Service

  50. GM5540974Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Retainer (1) @ Intake Manifold Cover (2) - Install [ 3x ]

  51. GM5540973Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Retainer (1) @ Intake Manifold Cover (2) - Install [ 4x ]

  52. GM5540971Courtesy of GENERAL MOTORS COMPANY

    Engine Wiring Harness Connector (4) @ Evaporative Emission Canister Purge Solenoid Valve - Connect

  53. Engine Wiring Harness Connector (3) @ Manifold Absolute Pressure Sensor - Connect
  54. Engine Wiring Harness Retainer (2) @ Intake Manifold Cover - Install [ 2x ]
  55. Engine Wiring Harness Connector (1) @ Throttle Body - Connect
  56. GM5538400Courtesy of GENERAL MOTORS COMPANY

    Evaporative Emission Canister Purge Tube (2) @ Evaporative Emission Canister Purge Solenoid Valve - Install

  57. Evaporative Emission Canister Purge Tube Connector (1) @ Evaporative Emission Canister Purge Solenoid Valve - Engage - Plastic Collar Quick Connect Fitting Service
  58. GM5001379Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct (3) - Install

  59. Air Cleaner Outlet Duct Clamp (2) - Tighten [ 2x ] - Fastener Specifications
  60. GM5001375Courtesy of GENERAL MOTORS COMPANY

    Air Cleaner Outlet Duct Bracket Bolt (1) - Install and tighten - Fastener Specifications

  61. Install engine wiring harness to air cleaner outlet duct bracket.
  62. GM5527948Courtesy of GENERAL MOTORS COMPANY

    Positive Crankcase Ventilation Fresh Air Tube (1) - Install

  63. Positive Crankcase Ventilation Fresh Air Tube (3) @ Positive Crankcase Ventilation Fitting - Connect - Plastic Collar Quick Connect Fitting Service
  64. Positive Crankcase Ventilation Fresh Air Tube (2) @ Air Cleaner Outlet Duct - Connect - Plastic Collar Quick Connect Fitting Service
  65. GM5571687Courtesy of GENERAL MOTORS COMPANY

    Plenum Front Panel Outer Reinforcement (1) - Install - Plenum Front Panel Outer Reinforcement Removal and Installation

  66. Raise and support the vehicle. Lifting and Jacking the Vehicle
  67. GM5584902Courtesy of GENERAL MOTORS COMPANY

    Retainer Clip (1) @ Cylinder Head - Right Side (2) - Install

  68. GM5001113Courtesy of GENERAL MOTORS COMPANY

    Exhaust System Seal- Right Side (1) - Install NEW

  69. GM4992392Courtesy of GENERAL MOTORS COMPANY

    Exhaust Manifold Gasket- Right Side (2) - Install NEW

  70. Install the right side exhaust manifold (1) through the wheel opening.
  71. GM4992369Courtesy of GENERAL MOTORS COMPANY

    If NEW threaded components are being installed, loosen the adhesive using a metal pick or similar tool before proceeding. If threaded components are reused, prepare the threaded components using the following steps:

    1. Remove any loose cured adhesive from the external threads of the components using a lint free cloth.
    2. Thread the cleaned components into the internal mating threads and remove to loosen trapped cured adhesive.
    3. Apply thread locking adhesive to the external threads of the components. Adhesives, Fluids, Lubricants, and Sealers
    4. Ensure there are no gaps in the thread locking adhesive once applied to the component.
  72. Exhaust Manifold Bolt- Right Side (1) - Install NEW and hand tighten [ 5x ]
  73. Exhaust Manifold Bolt- Right Side (1) - Tighten in sequence [ 5x ] - Fastener Specifications

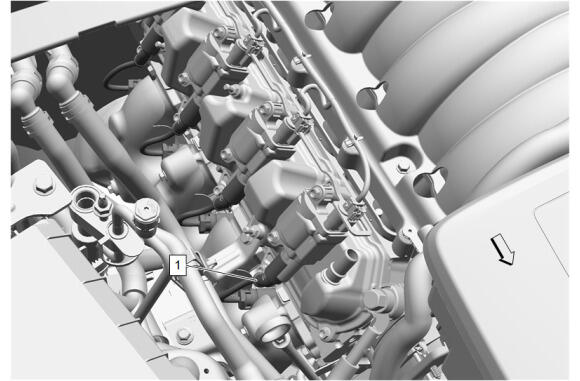

  74. GM5541807Courtesy of GENERAL MOTORS COMPANY

    Inspect the inside of the spark plug rubber boots for a thin, even coat of grease. If there is no grease present or additional grease is necessary, apply a thin coating of dielectric grease evenly to the inside of the spark plug rubber boots up to a depth of 15 mm from the end of the boots. Adhesives, Fluids, Lubricants, and Sealers

  75. Push the 4 boots of the spark plug wires (1) onto the 4 gas engine ignition spark plugs (2) until 2 audible clicks are heard.
  76. GM5584486Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Pipe Nut-Right Side (1) - Install and hand tighten [ 3x ]

  77. Exhaust Front Pipe Nut- Right Side (1) - Tighten [ 3x ] - Fastener Specifications
  78. GM5568855Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    A special anti-seize compound is used in the HO2S threads. The compound consists of liquid graphite and glass beads. The graphite tends to burn away, but the glass beads remain, making the sensor easier to remove. New, or service replacement sensors already have the compound applied to the threads. If the sensor is removed from an exhaust component and if for any reason the sensor is to be reinstalled, the threads must have anti-seize compound applied before reinstallation. Adhesives, Fluids, Lubricants, and Sealers

    CAUTION:

    Refer to Component Fastener Tightening Caution

    Install and tighten the heated oxygen sensor (1) using a suitable tool. Fastener Specifications

  79. Connect the heated oxygen sensor electrical connector.
  80. GM5508826Courtesy of GENERAL MOTORS COMPANY

    Exhaust Front Pipe Heat Shield- Right Side (2) - Install

  81. Exhaust Heat Shield Bolt- Right Side (1) - Install and tighten - Fastener Specifications
  82. GM4992288Courtesy of GENERAL MOTORS COMPANY

    Install the right exhaust manifold heat shield (1) through the wheel opening.

  83. GM4992215Courtesy of GENERAL MOTORS COMPANY

    Exhaust Manifold Heat Shield Bolt- Right Side (1) - Install and hand tighten [ 3x ]

  84. Exhaust Manifold Heat Shield Bolt- Right Side (1) - Tighten [ 3x ] - Fastener Specifications
  85. Wiring Harness - Position the wiring harness.
  86. Front Wheelhouse Liner- Right Side - Install Front Wheelhouse Liner Replacement
  87. Engine Oil and Oil Filter - Install NEW - Engine Oil and Oil Filter Replacement
  88. Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)
  89. Fill the cooling system to the proper level. Cooling System Draining and Filling (GE 47716 L84, L87) , or Cooling System Draining and Filling (Static L84, L87)
  90. Start the engine and check for coolant leaks.
  91. Check for oil leaks.
  92. Inspect for fuel leaks.
  93. Inspect the exhaust system for leaks.
  94. Run the windshield wipers for two complete cycles then turn off the windshield wipers.
  95. Ensure the windshield wipers are in the full park position.
  96. Perform the throttle body idle air flow compensation reset. Throttle Body Idle Air Flow Compensation Reset
scientia non olet · About LEMON Manuals
