Inspection Procedure

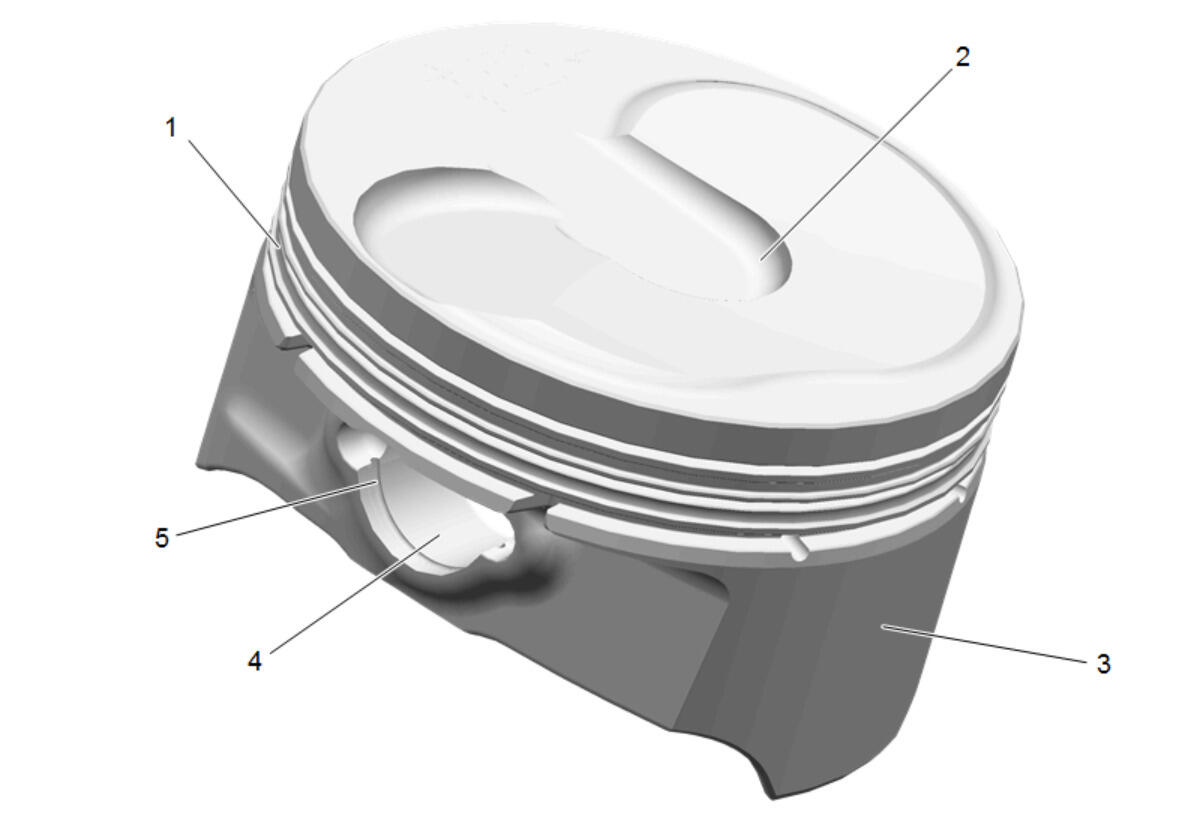

Inspect the pistons for the following conditions:
- Cracked ring lands, skirts or pin bosses
- Ring grooves for nicks, burrs that may cause binding (1)
- Warped or worn ring lands (1)
- Eroded areas at the top of the piston (2)
- Scuffed or damaged skirt coating (3)
- Worn piston pin bores or worn piston pins (4)
- Piston pin retainer grooves for burrs (5)
- Replace pistons that show any signs of damage or excessive wear.
