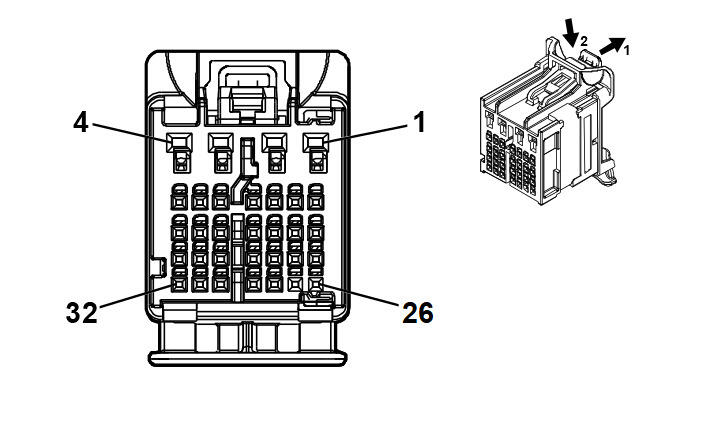

K9 Body Control Module X7
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 35397992
- Service Connector: 13534979
- Description: 32-Way F 0.5 MQS, 1.2 OCS Series (PU with GY Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| II |
84729890 |
J-35616-12 (BU) |
J-38125-553 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.5 |
BU |
2689 |
Fuel Door Actuator Lock Control |
II |
- |
| 3 - 15 |
- |
- |
- |
Not Occupied |
- |
- |
| 16 |
0.35 |
YE |
5810 |
Park Enable Signal |
I |
9C1 |
| 17 |
0.35 |
GY / YE |
6188 |
Liftgate Window/Rear Compartment Lid Motor Unlatch Control |
I |
- |
| 18 |
0.35 |
WH / VT |
1430 |
Exterior Courtesy Lamp Control |
I |
- |
| 19 |
0.35 |
GN / VT |
2857 |
Body Control Module LIN Bus 11 |
I |
- |
| 20 - 23 |
- |
- |
- |
Not Occupied |
- |
- |
| 24 |
0.5 |
YE / BU |
4783 |
Rear Footwell Accent Lighting Control |
I |
S0M |
| 25 - 26 |
- |
- |
- |
Not Occupied |
- |
- |
| 27 |
0.35 |
VT / BU |
7598 |
Glass Breakage Sensor 2 Signal |
I |
- |
| 28 - 29 |
- |
- |
- |
Not Occupied |
- |
- |
| 30 |
0.35 |
GY / WH |
4630 |
AC Power Outlet Switch Signal |
I |
- |
| 31 - 32 |
- |
- |
- |
Not Occupied |
- |
- |
