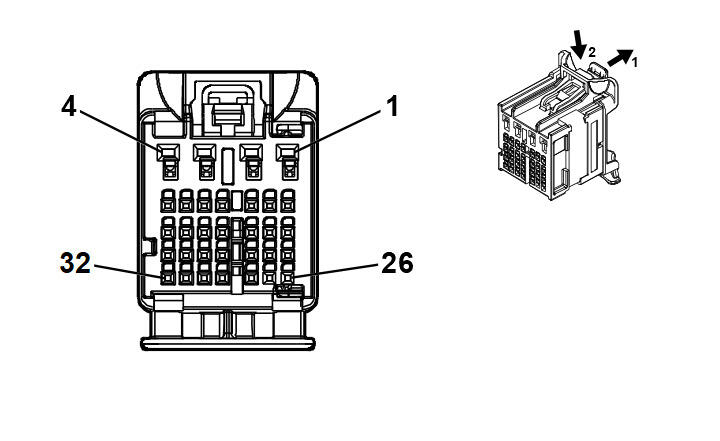

K9 Body Control Module X6
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body
- OEM Connector: 35392287
- Service Connector: 13534981
- Description: 32-Way F 0.5 MQS, 1.2 OCS Series (BN with GY Inner Connector)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19370262 |
EL-35616-58 (BK) |
EL-38125-58 |
| II |
84729890 |
J-35616-12 (BU) |
J-38125-553 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
0.75 |
VT / WH |
1094 |
Right Rear Door Lock Actuator Lock Control |
II |
- |
| 3 |
0.75 |
GY / BK |
2680 |
Lock Actuators Unlock Control 2 |
II |
- |
| 4 |
- |
- |
- |
Not Occupied |
- |
- |
| 5 |
0.35 |
YE / BU |
5797 |
Rear Closure Handle Switch Open Signal |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.35 |
BN / GN |
3568 |
Rear Closure Passive Entry Antenna High Signal |
I |
- |
| 8 |
0.35 |
GN / GY |
3569 |
Rear Closure Passive Entry Antenna Low Signal |
I |
- |
| 9 - 10 |
- |
- |
- |
Not Occupied |
- |
- |
| 11 |
0.35 |
GN / BU |
6133 |
Body Control Module LIN Bus 2 |
I |
- |
| 12 - 16 |
- |
- |
- |
Not Occupied |
- |
- |
| 17 |
0.35 |
BU / BN |
8917 |
Left Front Door Ajar Switch Signal 2 |
I |
- |
| 18 - 21 |
- |
- |
- |
Not Occupied |
- |
- |
| 22 |
0.35 |
BN / GN |
4064 |
Hood Status B Signal |
I |
- |
| 23 - 27 |
- |
- |
- |
Not Occupied |
- |
- |
| 28 |
0.35 |
BU |
2675 |
Left Front Exterior Door Handle Switch Unlock Signal |
I |
- |
| 29 - 30 |
- |
- |
- |
Not Occupied |
- |
- |
| 31 |
0.35 |
GY / BU |
4995 |
Right Rear Door Exterior Switch Unlock Signal |
I |
- |
| 32 |
- |
- |
- |
Not Occupied |
- |
- |
