K9 Body Control Module X4

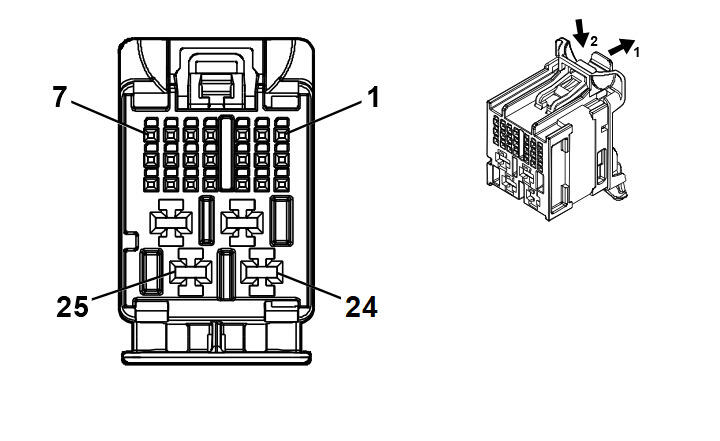

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | 13575435 | J-35616-4A (PU) | J-38125-557 |
| II | 19370262 | EL-35616-58 (BK) | EL-38125-58 |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.35 | BN / BK | 3552 | Interior Passive Entry Antenna 1 High Signal | II | - |
| 2 | 0.35 | WH | 3553 | Interior Passive Entry Antenna 1 Low Signal | II | - |
| 3 | 0.35 | BK / VT | 1449 | Steering Wheel Resistor Ladder Low Reference | II | - |
| 4 | - | - | - | Not Occupied | - | - |
| 5 | 0.35 | GN / VT | 5199 | Run/Crank Relay Coil Control | II | - |
| 6 | - | - | - | Not Occupied | - | - |
| 7 | 0.35 | BN / BK | 4996 | Immobilizer Antenna Signal [+] | II | - |
| 8 - 9 | - | - | - | Not Occupied | - | - |
| 10 | 0.35 | GY / GN | 4083 | Retained Accessory Power Relay 2 Coil Control | II | - |
| 11 - 13 | - | - | - | Not Occupied | - | - |
| 14 | 0.35 | WH / GY | 4997 | Immobilizer Antenna Low Signal | II | - |
| 15 | 0.35 | BU / VT | 1788 | Traction Control Switch Signal 1 | II | - |
| 16 | 0.35 | GN / WH | 4115 | Body Control Module LIN Bus 5 | II | - |
| 17 - 18 | - | - | - | Not Occupied | - | - |
| 19 | 0.35 | BU / YE | 4979 | AUTOSAR CAN Bus [+] 2 Serial Data | II | - |
| 20 | 0.35 | WH | 4978 | AUTOSAR CAN Bus [-] 2 Serial Data | II | - |
| 21 | - | - | - | Not Occupied | - | - |
| 22 | 0.5 | RD / WH | 2740 | Battery Positive Voltage | I | - |
| 23 | 0.75 1.5 |
RD / BU RD / BU |
2540 2540 |
Battery Positive Voltage Battery Positive Voltage |
I I |
5W4/9C1 -5W4/9C1 |
| 24 | 2.5 | BK / WH | 1851 | Signal Ground | I | - |
| 25 | 2.5 | BK | 1850 | Ground | I | - |
