K9 Body Control Module X3

Courtesy of GENERAL MOTORS COMPANY

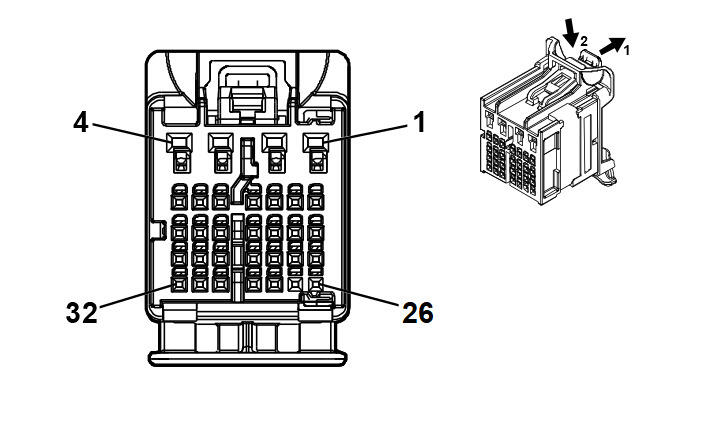

Connector Part Information

Terminal Part Information

Terminal Type ID	Terminated Lead	Diagnostic Test Probe	Terminal Removal Tool
I	19370262	EL-35616-58 (BK)	EL-38125-58
II	84729890	J-35616-12 (BU)	J-38125-553

Pin	Size	Color	Circuit	Function	Terminal Type ID	Option
1	-	-	-	Not Occupied	-	-
2	0.5	BN / BU	4892	Auxiliary Battery Relay Control	II	-
3 - 4	-	-	-	Not Occupied	-	-
5	0.35	GN / BN	2853	Body Control Module LIN Bus 7	I	-
6	0.35	BN / BU	391	Rear Window Wiper Switch Signal	I	-
7	0.35	WH / BN	7555	Headlamp Switch Signal	I	-
8 - 9	-	-	-	Not Occupied	-	-
10	0.35	GN / BK	2858	Body Control Module LIN Bus 12	I	-
11 - 12	-	-	-	Not Occupied	-	-
13	0.35	WH	3152	Lane Departure Warning Indicator Control	I	-
14	0.35	GN / BN	5852	Rear Parking Assist Disable LED Signal	I	-
15	0.35	GN	1110	Stop/Start Indicator Control	I	-
16	0.35	GN / BU	761	Blower Speed Feedback Signal	I	-
17	-	-	-	Not Occupied	-	-
18	0.35	YE	7556	Headlamp Switch Reference	I	-
19	0.35	BU / BK	5719	Ignition Mode Switch Start LED Signal	I	-
20	0.35	WH / VT	6821	Surveillance Switch Signal	I	-
21	-	-	-	Not Occupied	-	-
22	0.35	BN / GY	8021	Police Microphone Enable Signal	I	-
23	0.35	BU	1111	Stop/Start Switch Signal	I	-
24	0.35	WH / BU	3691	Trailer Brake Apply Signal	I	-
25 - 26	-	-	-	Not Occupied	-	-
27	0.35	GY / WH	3153	Lane Departure Warning Disable Switch Signal	I	-
28	-	-	-	Not Occupied	-	-
29	0.35	GY / VT	8022	Police Roof Lamp Control	I	-
30	0.35	BU / YE	6844	ABS/Traction Control Hill Descent Control Switch Signal	I	-
31	0.35	GY / GN	2555	Rear Parking Assist Disable Signal	I	-
32	-	-	-	Not Occupied	-	-
