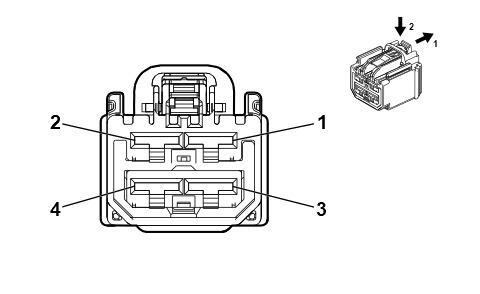

K8AB Blower Motor Control Module - Rear X2 (C69)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Auxiliary HVAC
- OEM Connector: 13524647
- Service Connector: Service by Harness -
- Description: 4-Way F 6.3 YESC Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-42 (RD) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
- |
- |
Not Occupied |
- |
- |
| 2 |
3.0 |
RD / YE |
1740 |
Battery Positive Voltage |
I |
- |
| 3 |
0.5 |
BN |
2211 |
Rear Blower Motor Speed Control |
I |
- |
| 4 |
3.0 |
BK |
1450 |
Ground |
I |
- |
