K8AB Blower Motor Control Module - Rear X1 (C69)
 Courtesy of GENERAL MOTORS COMPANY
|

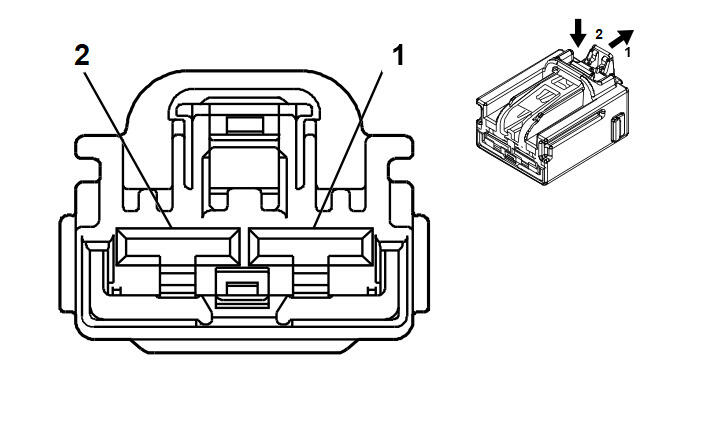

Connector Part Information
- Harness Type: Rear Blower Motor
- OEM Connector: 13514655
- Service Connector: Service by Harness -
- Description: 2-Way F 6.3 Series (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-42 (RD) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
2.5 |
GY / BN |
101 |
Blower Motor Control 2 |
I |
- |
| 2 |
2.5 |
BU / BK |
5988 |
Rear Blower Motor Low Reference |
I |
- |
