K4 Running Board Control Module X3 (B3L)
 Courtesy of GENERAL MOTORS COMPANY
|

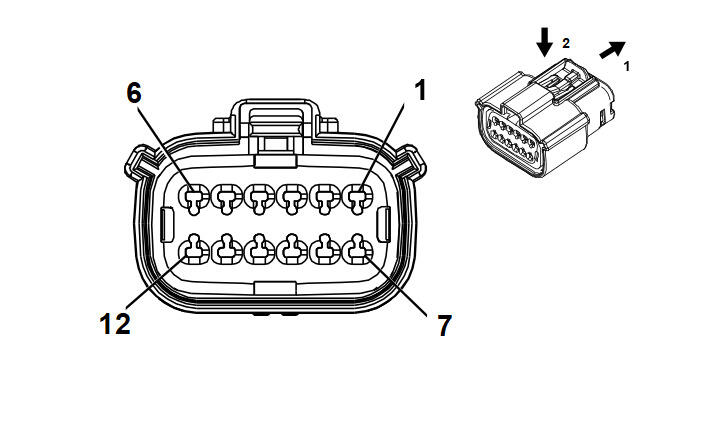

Connector Part Information
- Harness Type: Chassis
- OEM Connector: 35435906
- Service Connector: 19352907
- Description: 12-Way F 1.5 MX Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
19368973 |
J-35616-2A (GY) |
J-38125-217 |
| I |
19368973 |
J-35616-2A (GY) |
J-38125-217 |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
GN / RD |
7464 |
Right Running Board Step Motor Hall Sensor 5V Reference |
I |
- |
| 2 |
0.5 |
VT |
7465 |
Right Running Board Step Motor Hall Sensor Signal |
I |
- |
| 3 |
0.5 |
YE / BK |
7463 |
Right Running Board Step Motor Hall Sensor Low Reference |
I |
- |
| 4 |
0.5 |
BN |
4748 |
Left Running Board Step Courtesy Lamp Control |
I |
- |
| 5 |
0.5 |
GY / VT |
4749 |
Right Running Board Step Courtesy Lamp Control |
I |
- |
| 6 |
- |
- |
- |
Not Occupied |
- |
- |
| 7 |
0.5 |
VT / RD |
7468 |
Left Running Board Step Motor Hall Sensor 5V Reference |
I |
- |
| 8 |
0.5 |
YE |
7467 |
Left Running Board Step Motor Hall Sensor Signal |
I |
- |
| 9 |
0.5 |
YE / BN |
7466 |
Left Running Board Step Motor Hall Sensor Low Reference |
I |
- |
| 10 - 12 |
- |
- |
- |
Not Occupied |
- |
- |
