Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

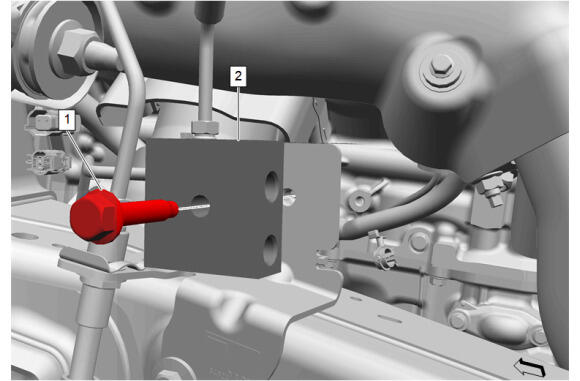

Rear Brake Pipe Connector (2) - Install

CAUTION:

Fastener Caution

Rear Brake Pipe Connector Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

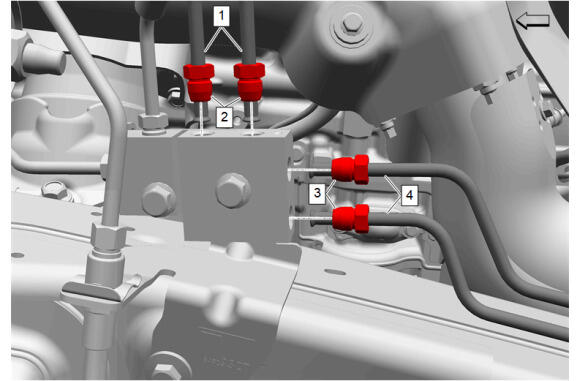

Remove the caps from the front and rear brake pipe (4) and the rear brake rear pipe (2).
Rear Brake Rear Pipe (4) @ Rear Brake Pipe Connector - Install [ 2x ]
Rear Brake Rear Pipe Nut (3) @ Rear Brake Pipe Connector - Install and tighten [ 2x ] - Fastener Specifications
Front And Rear Brake Pipe (1) @ Rear Brake Pipe Connector - Install
Front And Rear Brake Pipe Nut (2) @ Rear Brake Pipe Connector - Install and tighten [ 2x ] - Fastener Specifications
Install the front wheelhouse liner.
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

NOTE:
Quantity of fasteners may vary based on option content.

Front Wheelhouse Liner Retainer (2) - Install
Front Wheelhouse Liner Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Front Wheelhouse Liner Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

{If equipped} Front Tire Front Air Deflector Bolt (1) - Install and tighten - Fastener Specifications
Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)
Bleed the brake system. Hydraulic Brake System Bleeding
Install the front tire and wheel assembly. Tire and Wheel Removal and Installation (Aluminum Wheel)
Remove the support and lower the vehicle.
Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
