Removal Procedure

  1. Prepare the brake system control module for removal. Control Module References
  2. Disconnect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)
  3. Front Wheelhouse Liner - Remove - Front Wheelhouse Liner Replacement

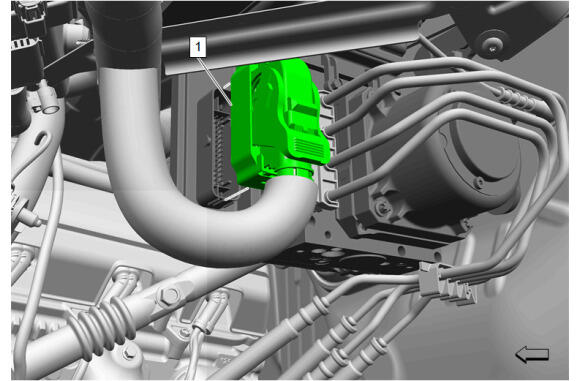

  4. GM5549263Courtesy of GENERAL MOTORS COMPANY

    Electrical Connector (1) @ Brake System Control Module - Disconnect

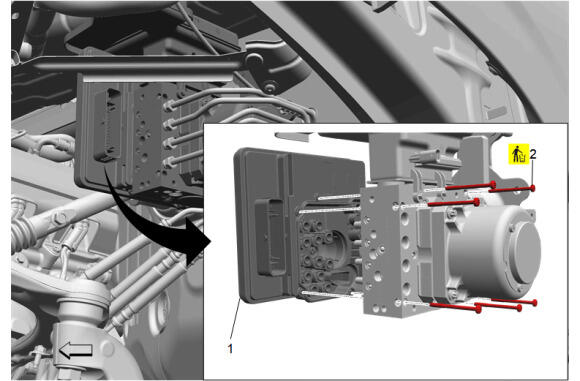

  5. GM5646112Courtesy of GENERAL MOTORS COMPANY

    Electronic Brake Control Module Bolt (2) - Remove and DISCARD [ 6x ]

  6. Brake System Control Module (1) - Remove
