Hood Adjustment
- Hood Hinge Bolt - Loosen [4x]

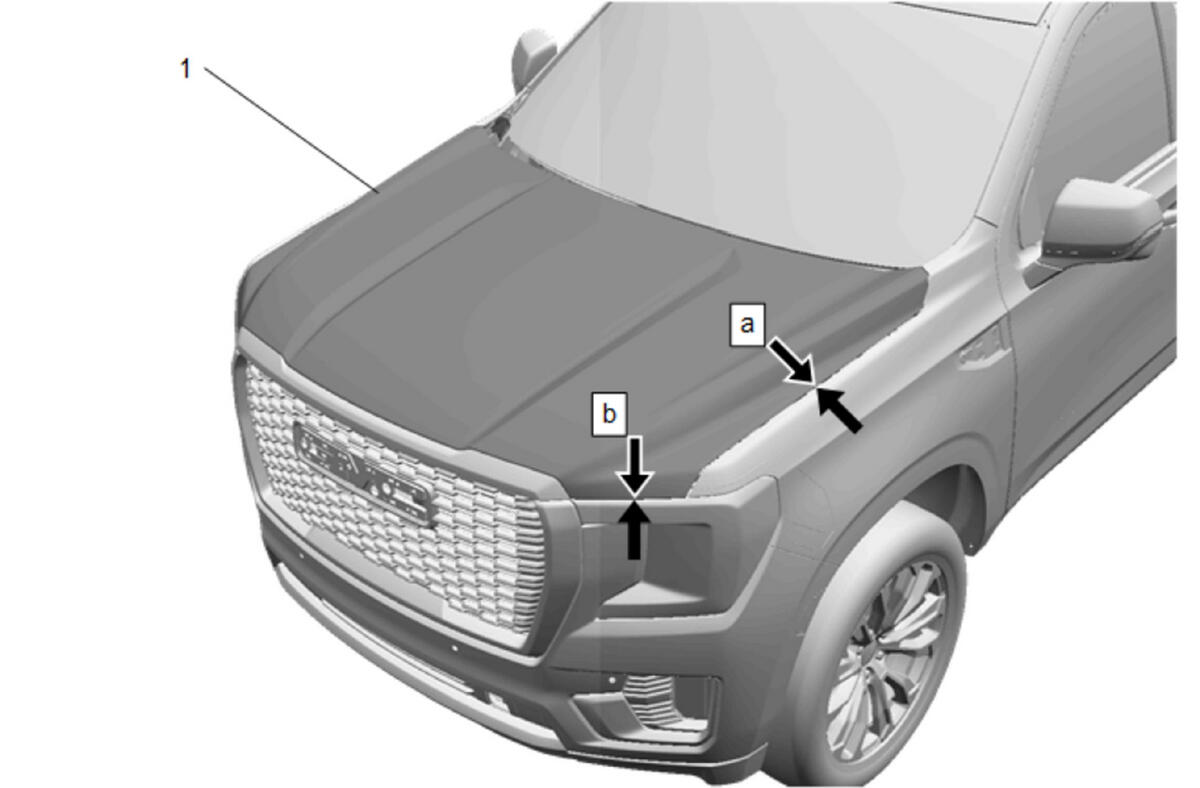

Adjust the hood (1) in order to obtain an even gap on both sides between the hood and the fenders, headlamps and the front bumper fascia:
- Hood to front fender (a) 4.0 mm ± 1.0 mm (0.15 in ± 0.04 in)
- Hood to headlamp (b) 6.0 mm ± 1.5 mm (0.23 in ± 0.06 in)
- Hood Hinge Bolt - Tighten [4x] - Fastener Specifications
Hood Primary and Secondary Latch Bolt (1) - Loosen [2x]
- Hood Primary and Secondary Latch - Adjust
- Adjust the hood bumpers as necessary.
Hood Primary and Secondary Latch Bolt (1) - Tighten [2x] - Fastener Specifications
CAUTION:
Refer to Fastener Caution .
