Removal Procedure

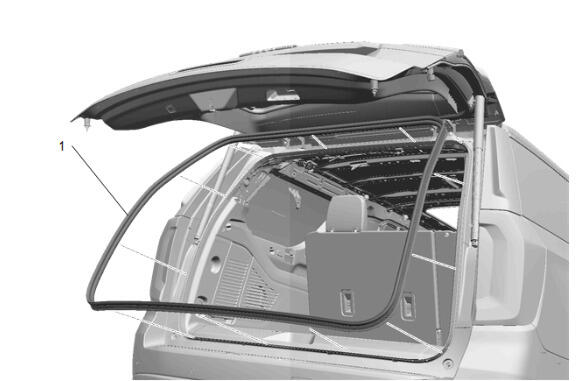

  1. GM5601010Courtesy of GM

    Start at the upper corner of the liftgate opening and pull the liftgate weatherstrip (1) away from the liftgate opening flange.
