Removal Procedure

Remove the front tire and wheel assembly. Tire and Wheel Removal and Installation (Aluminum Wheel)
Courtesy of GM

{If equipped} Front Tire Front Air Deflector Bolt (1) - Remove
Courtesy of GM

Front Wheelhouse Liner Bolt (1) - Remove [3x]
Courtesy of GM

NOTE:
Quantity of fasteners may vary based on option content.

Front Wheelhouse Liner Bolt (1) - Remove [3x]
Front Wheelhouse Liner Retainer (2) - Remove
Courtesy of GM

Front Wheelhouse Liner Bolt (1) - Remove [3x]
Courtesy of GM

Front Wheelhouse Liner Bolt (1) - Remove [3x]
Courtesy of GM

Front Wheelhouse Liner (1) - Remove
Courtesy of GM

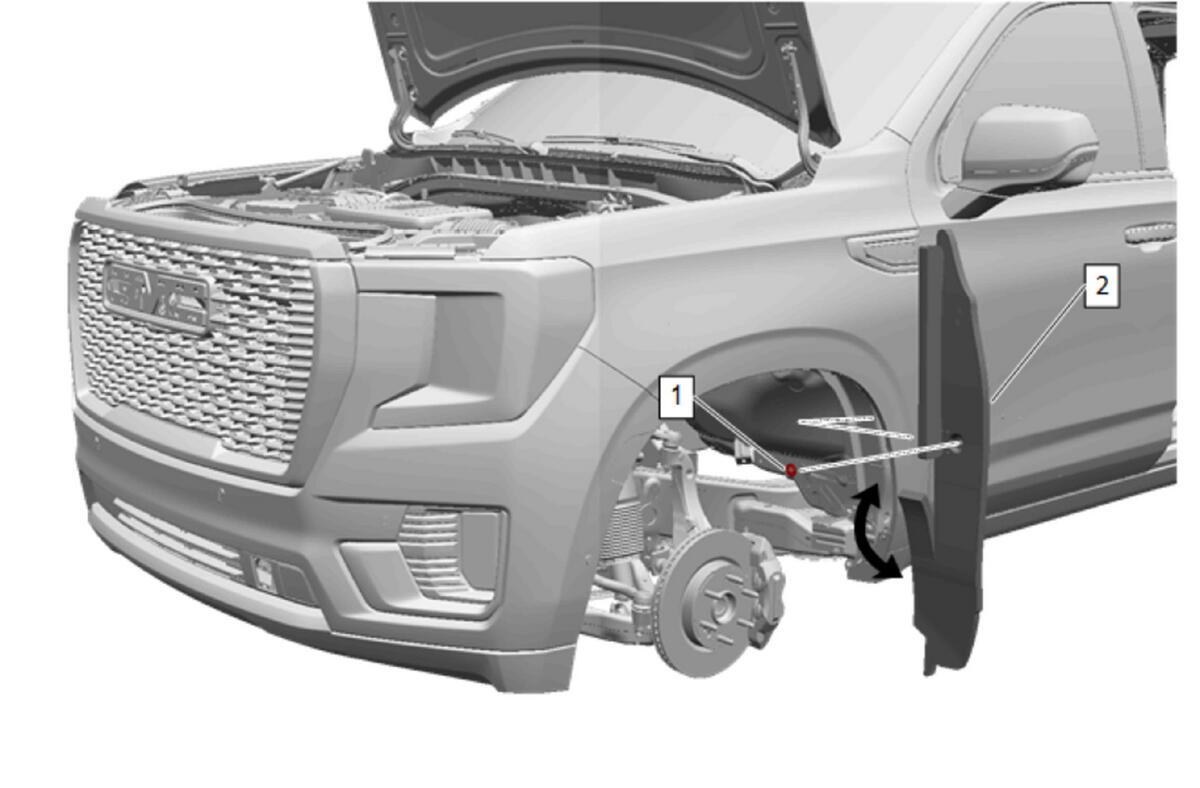

Front Fender Insulator Retainer (1) - Remove
Pull the front fender insulator (2) down and out from the front fender.
