Installation Procedure

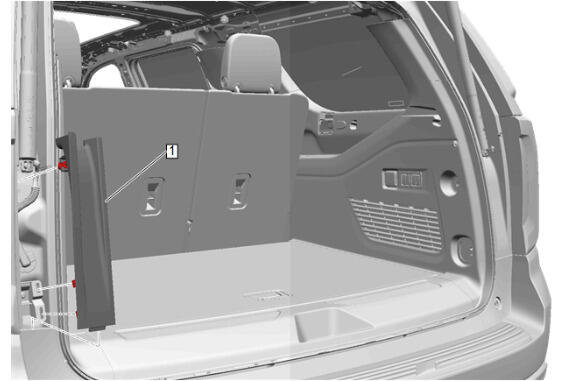

  1. GM5599644Courtesy of GM

    Back Body Opening Side Lower Gutter (1) - Install

  2. GM5599564Courtesy of GM
    NOTE:

    Component removed for graphic clarity.

    Back Body Opening Side Center Gutter (1) - Install

  3. Close the rear compartment lid.
