Removal Procedure

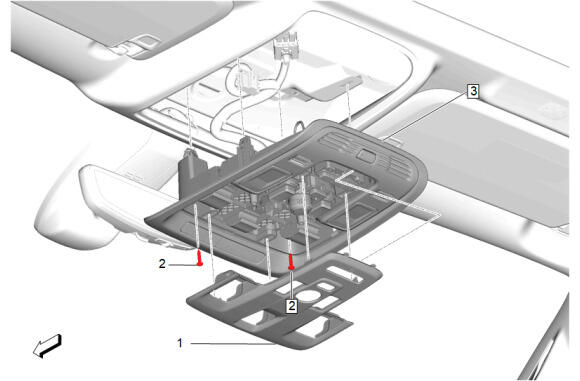

  1. GM5581770Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  2. Roof Console Opening Trim Plate (1) - Remove
  3. Roof Console Bolt (2) - Remove [ 2x ]
  4. Roof Console (3) - Remove
  5. Disconnect the electrical connectors.

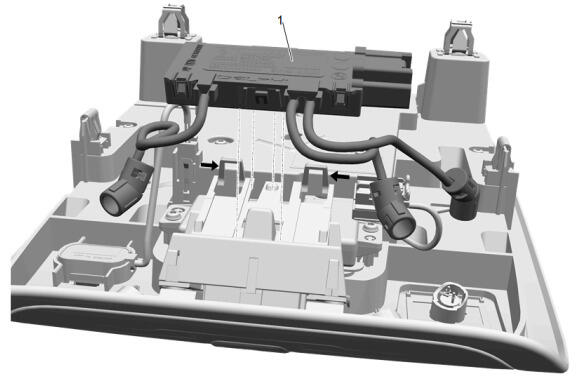

  6. GM5579711Courtesy of GENERAL MOTORS COMPANY

    {with UTV} Reposition the content theft deterrent sensor:

    1. Release the retaining tabs.
    2. Content Theft Deterrent Sensor (1) - Reposition

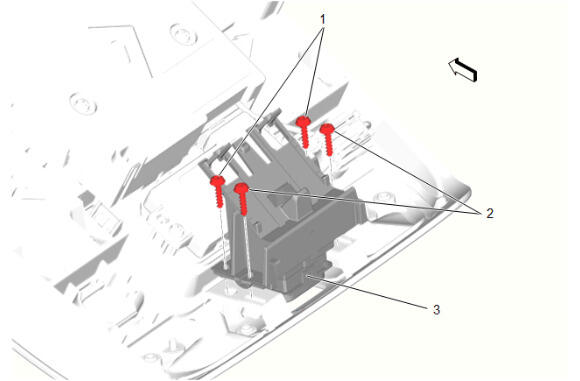

  7. GM5710851Courtesy of GENERAL MOTORS COMPANY

    Roof Console Bracket Bolt (1) - Remove [ 2x ]

  8. Roof Console Bracket Bolt (2) - Remove [ 2x ]
  9. Theft Intrusion Bracket (3) - Reposition

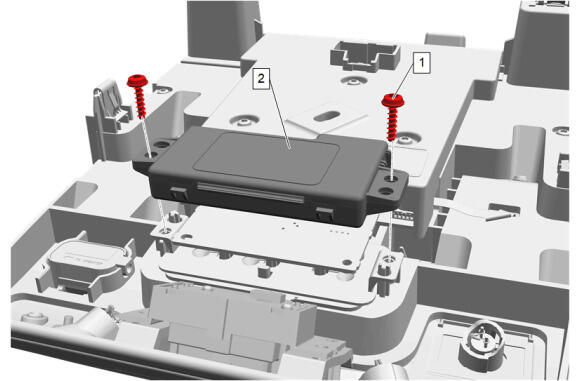

  10. GM5580412Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  11. Garage Door Opener Transmitter Bolt (1) - Remove [ 2x ]
  12. Garage Door Opener Transmitter (2) - Remove

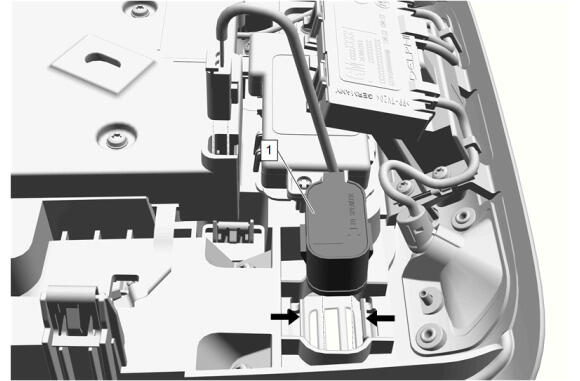

  13. GM5573742Courtesy of GENERAL MOTORS COMPANY

    Disconnect the electrical connector.

  14. Release the retaining tabs.
  15. Mobile Telephone Microphone (1) - Remove
