Removal Procedure

WARNING:

Refer to SIR Warning .

CAUTION:

If a vehicle is equipped with a head curtain inflator module ensure that the inflator module and tether are undamaged. If tether or curtain airbag are damaged in any way, they must be replaced.

CAUTION:

Use care when working around the head curtain inflator module. Sharp tools may puncture the curtain airbag. If the head curtain inflator module is damaged in any way, it must be replaced.

  1. Disable the SIR system. SIR Disabling and Enabling
  2. GM5589207Courtesy of GENERAL MOTORS COMPANY

    Pull down the windshield garnish molding (1) rearwards to release the tether from the A pillar.

  3. Access the windshield garnish bolt (2) on the backside of the windshield garnish molding (1).
  4. Windshield Garnish Molding Bolt (2) - Remove
  5. Disconnect the electrical connector.
  6. Windshield Garnish Molding (1) - Remove
  7. GM5590605Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  8. Disconnect the electrical connector.
  9. Instrument Panel Extension (1) - Remove
  10. GM5605303Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker Bolt (1) - Remove [ 2x ]

  11. Radio Front Center Speaker (2) - Remove
  12. Disconnect the electrical connector.
  13. GM5591131Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel Bolt (1) - Remove [ 2x ]

  14. Instrument Panel Upper Bolt (2) - Remove [ 4x ]
  15. Using a flat-bladed plastic trim tool, release the retaining clips.
  16. Instrument Panel Instrument Cluster Hood (3) - Remove
  17. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Remove

  18. GM5596335Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  19. Instrument Panel Fuse Block Access Hole Cover (1) - Remove
  20. GM5596404Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Bolt (1) - Remove [ 3x ]

  21. Instrument Panel Upper Trim Panel (2) - Remove
  22. GM5598940Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  23. Instrument Panel Fuse Block Access Hole Cover (1) - Remove
  24. GM5598941Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad Bolt (1) - Remove

  25. Using a flat-bladed plastic trim tool, release the retaining clips.
  26. Disconnect the electrical connector.
    27. NOTE:

    Use care not to bend or deform the thin area of the instrument panel trim pad.

  27. Instrument Panel Trim Pad (2) - Remove
  28. GM5596337Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Pad Bolt (1) - Remove

  29. Using a flat-bladed plastic trim tool, release the retaining clips.
  30. Disconnect the electrical connectors.
  31. Instrument Panel Trim Pad (2) - Remove
  32. GM5600995Courtesy of GENERAL MOTORS COMPANY

    Extend the steering column to its furthest point to allow the instrument panel steering column upper trim cover to clear the instrument panel.

  33. Using a small plastic trim tool, separate the instrument panel steering column upper trim cover (1) from the instrument panel steering column lower trim cover.
  34. GM5600999Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate Bolt (1) - Remove [ 7x ]

  35. GM5601001Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate (1) - Remove

  36. Disconnect the electrical connector.
  37. GM5599068Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Bolt (1) - Remove [ 5x ]

  38. Instrument Panel Center Trim Plate Applique (2) - Remove
  39. GM5605112Courtesy of GENERAL MOTORS COMPANY

    Pull down the windshield garnish molding (1) rearwards to release the tether from the A pillar.

  40. Access the windshield garnish bolt (2) which is located on the backside of the windshield garnish molding (1) and secures the tether to the A pillar.
  41. Windshield Garnish Molding Bolt (2) - Remove
  42. Disconnect the electrical connector.
  43. Windshield Garnish Molding (1) - Remove
  44. GM5591127Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  45. Radio Front Center Speaker Grille (1) - Remove
  46. GM5591130Courtesy of GENERAL MOTORS COMPANY

    Radio Front Speaker Bolt (1) - Remove [ 2x ]

  47. Radio Front Speaker (2) - Remove
  48. Disconnect the electrical connector.
  49. GM5604837Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  50. Front Floor Console Applique (1) - Remove
  51. GM5604951Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Trim Plate Bolt (1) - Remove [ 3x ]

  52. Rear Floor Console Applique (2) - Remove
  53. GM5604984Courtesy of GENERAL MOTORS COMPANY

    Using a flat-bladed plastic trim tool, release the retaining clips.

  54. Instrument Panel Lower Trim Panel (1) - Remove
  55. GM5521782Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Bolt (1) - Remove [ 2x ]

  56. Using a flat-bladed plastic trim tool, release the retaining clips.
  57. Instrument Panel Lower Trim Panel Outer Filler (2) - Remove
  58. GM5525893Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Bolt (1) - Remove [ 10x ]

  59. GM5525896Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (1) - Remove

  60. GM5605113Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Airbag Bolt (1) - Remove [ 3x ]

  61. Disconnect the instrument panel airbag electrical connector from the instrument panel harness.
  62. GM5591826Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet Bolt (1) - Remove [ 2x ]

  63. Instrument Panel Center Air Outlet (2) - Remove
  64. GM5605115Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel Bolt (1) - Remove [ 10x ]

  65. Disconnect the electrical connectors and release the wiring harness retainers as necessary.
  66. GM5605117Courtesy of GENERAL MOTORS COMPANY
    NOTE:

    The instrument panel upper trim panel and instrument panel airbag will be removed as an assembly. Instrument panel airbag is a single use component. The airbag will need to be removed and scrapped.

    Instrument Panel Upper Trim Panel (2) - Remove

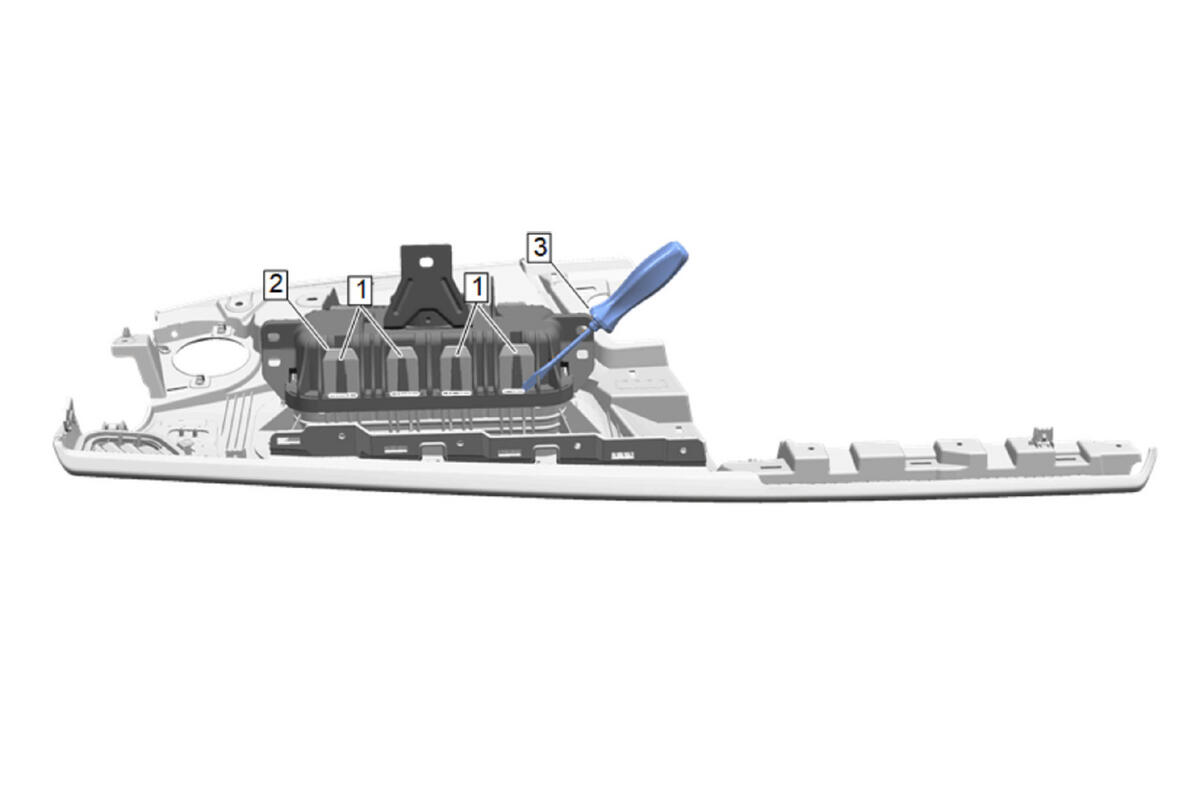

  67. GM5608014Courtesy of GENERAL MOTORS COMPANY

    Insert the flat tip driver (3) in between the airbag chute (2) and the air bag module hook (1) at the dotted line or base of hook.

  68. Tilt the flat tip driver forward until the air bag module hooks (1) break or bend enough to relieve the tension and allow for easier removal of the airbag from the chute.
  69. GM5608078Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Airbag (1) - Remove and DISCARD

  70. Inflatable Restraint Module Handling and Scrapping
