Installation Procedure

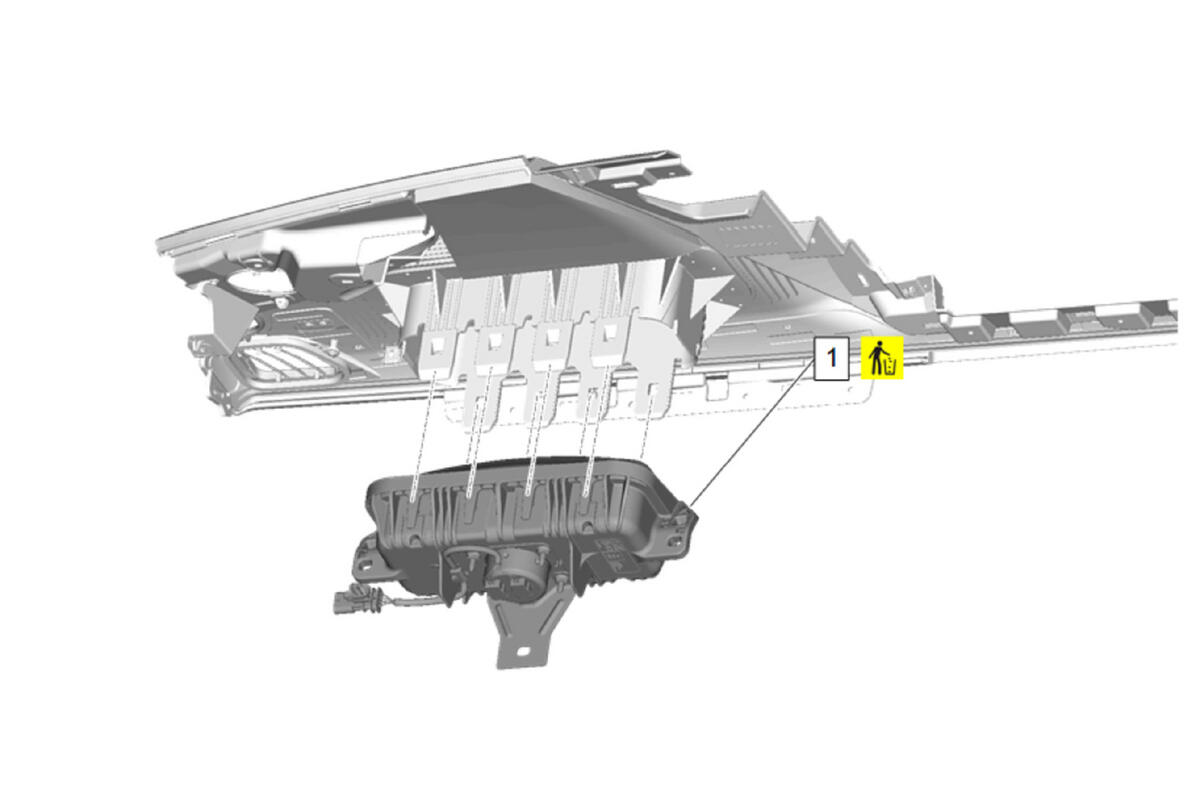

  1. GM5608078Courtesy of GENERAL MOTORS COMPANY
    WARNING:

    Never install the passenger airbag module into the instrument panel assembly that airbag module chute is cut. This may cause incorrect deployment when the passenger airbag is deployed.

    NOTE:

    When replacing instrument panel upper trim panel, always install a NEW instrument panel airbag. Instrument panel airbag is a single use component.

    Position the passenger air bag module (1) on the air bag chute.

    2. CAUTION:

    Make sure that the passenger airbag is installed into the chute completely.

  2. Push the passenger airbag module (1) into the airbag chute until the hooks of airbag module are seated completely.
  3. GM5605117Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (2) - Install

  4. Position the wiring harness and connect the harness retainers and the electrical connector.

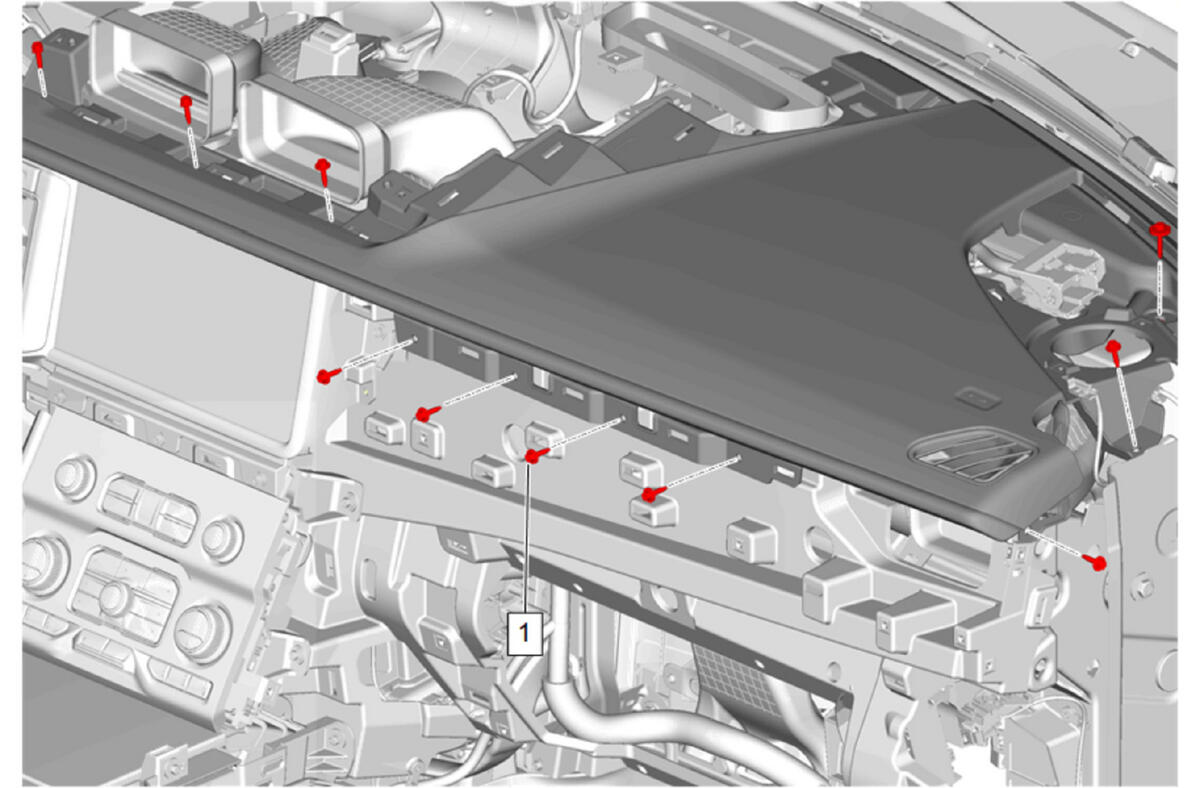

  5. GM5605115Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

    Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [ 10x ] - Fastener Specifications

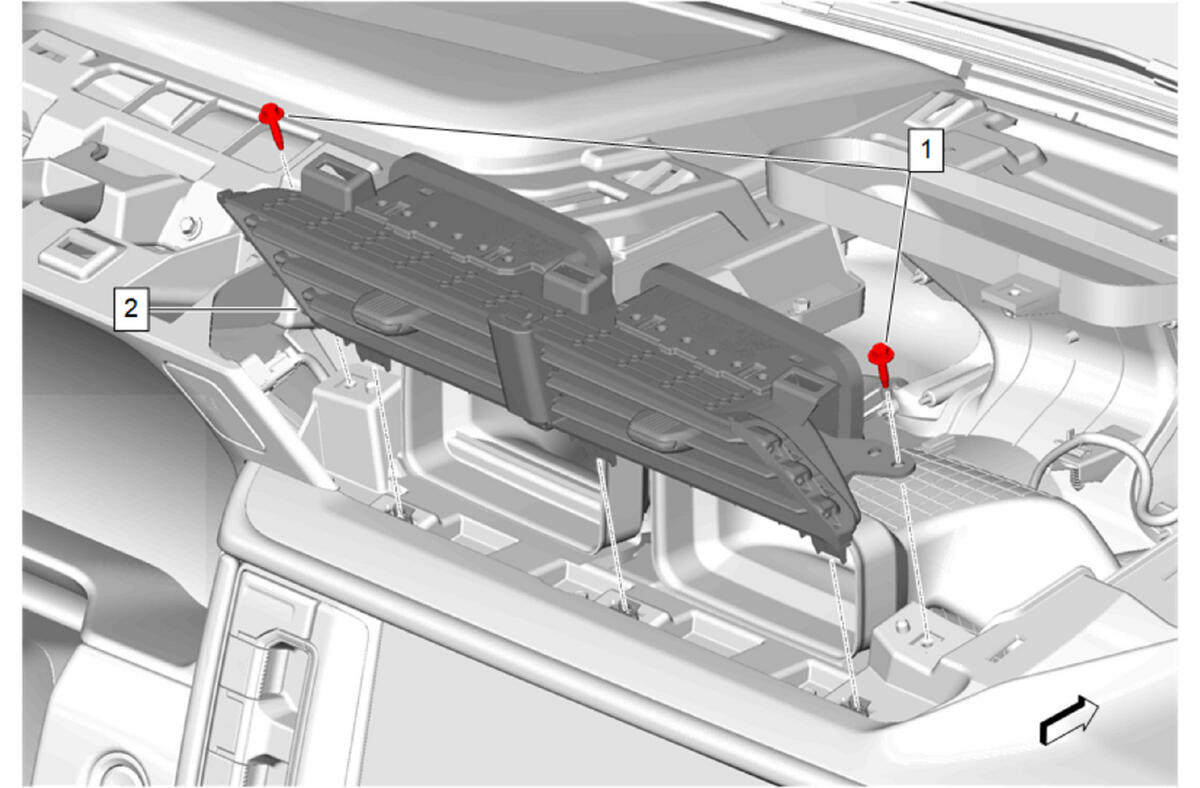

  6. GM5591826Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Air Outlet (2) - Install

  7. Instrument Panel Center Air Outlet Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

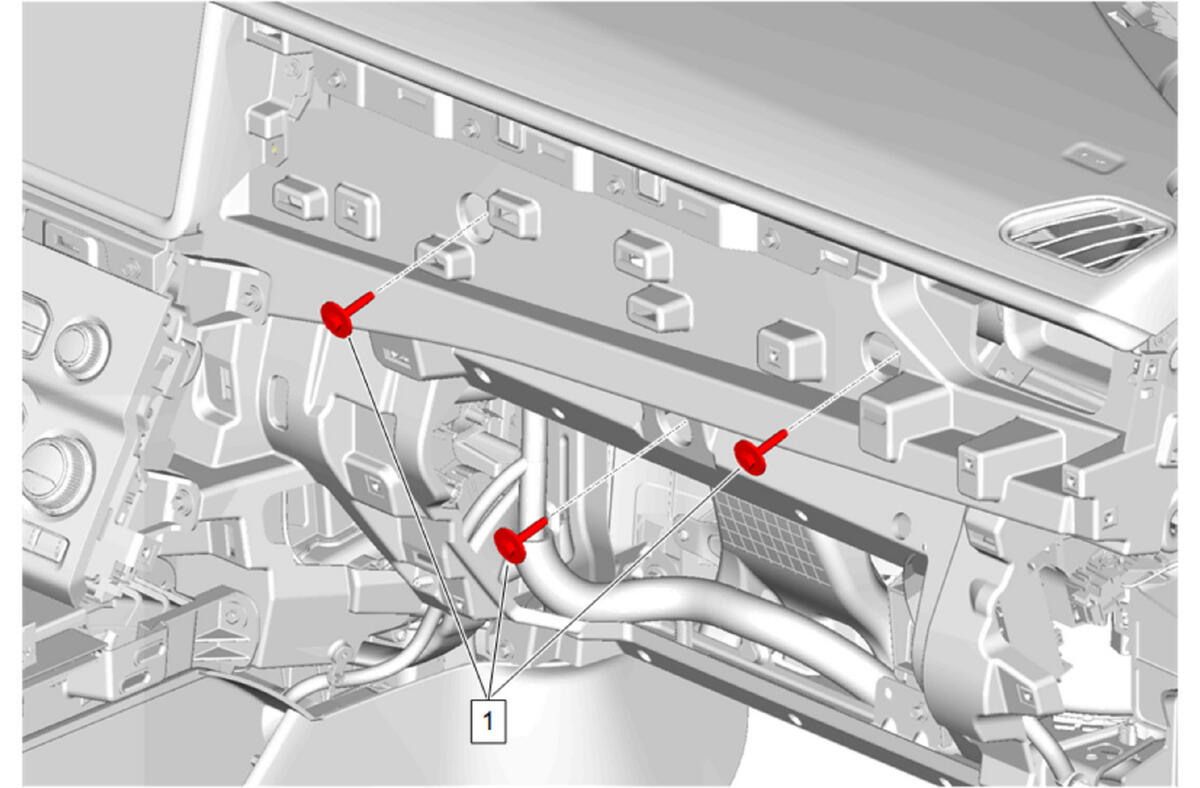

  8. GM5605113Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Airbag Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications

  9. Connect the instrument panel airbag electrical connector to the instrument panel harness.
  10. GM5525896Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment (1) - Install

  11. GM5525893Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Compartment Bolt (1) - Install and tighten [ 10x ] - Fastener Specifications

  12. GM5521782Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (2) - Install

  13. Instrument Panel Compartment Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  14. GM5604984Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel (1) - Install

  15. GM5604951Courtesy of GENERAL MOTORS COMPANY

    Rear Floor Console Applique (2) - Install

  16. Front Floor Console Trim Plate Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
  17. GM5604837Courtesy of GENERAL MOTORS COMPANY

    Front Floor Console Applique (1) - Install

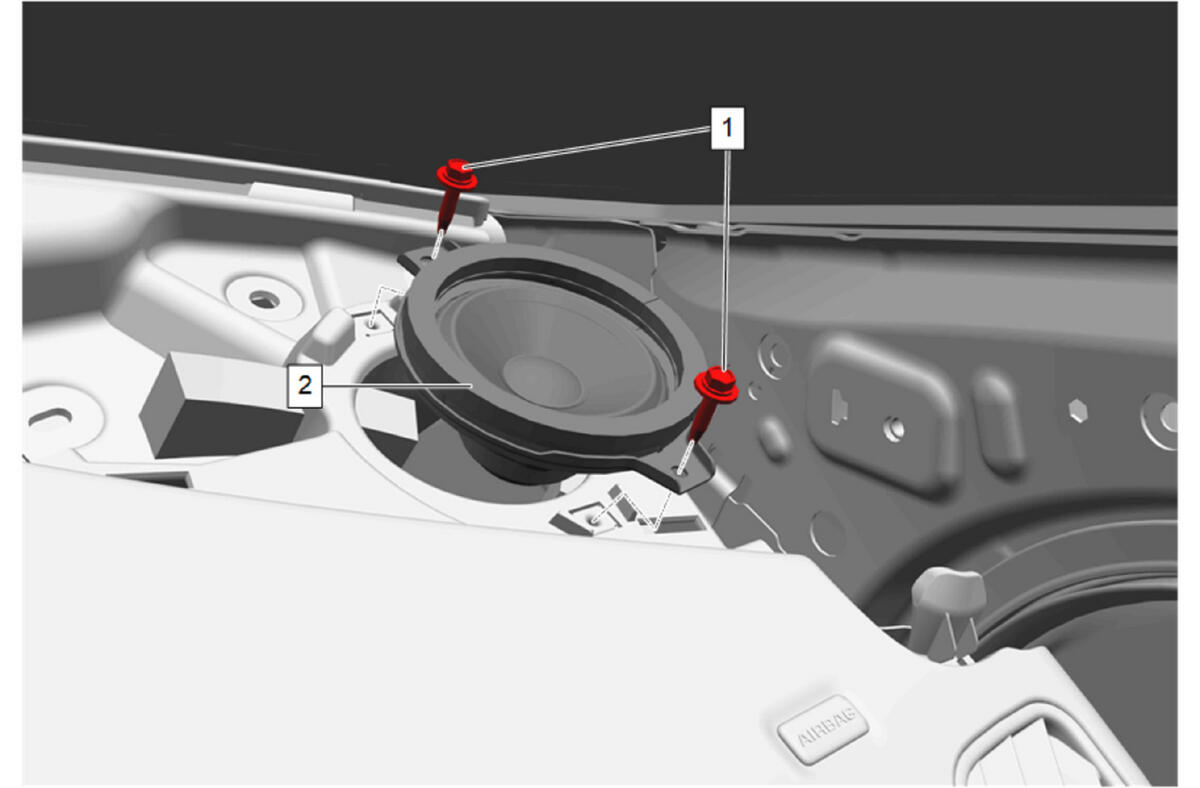

  18. GM5591130Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  19. Radio Front Speaker (2) - Install
  20. Radio Front Speaker Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications

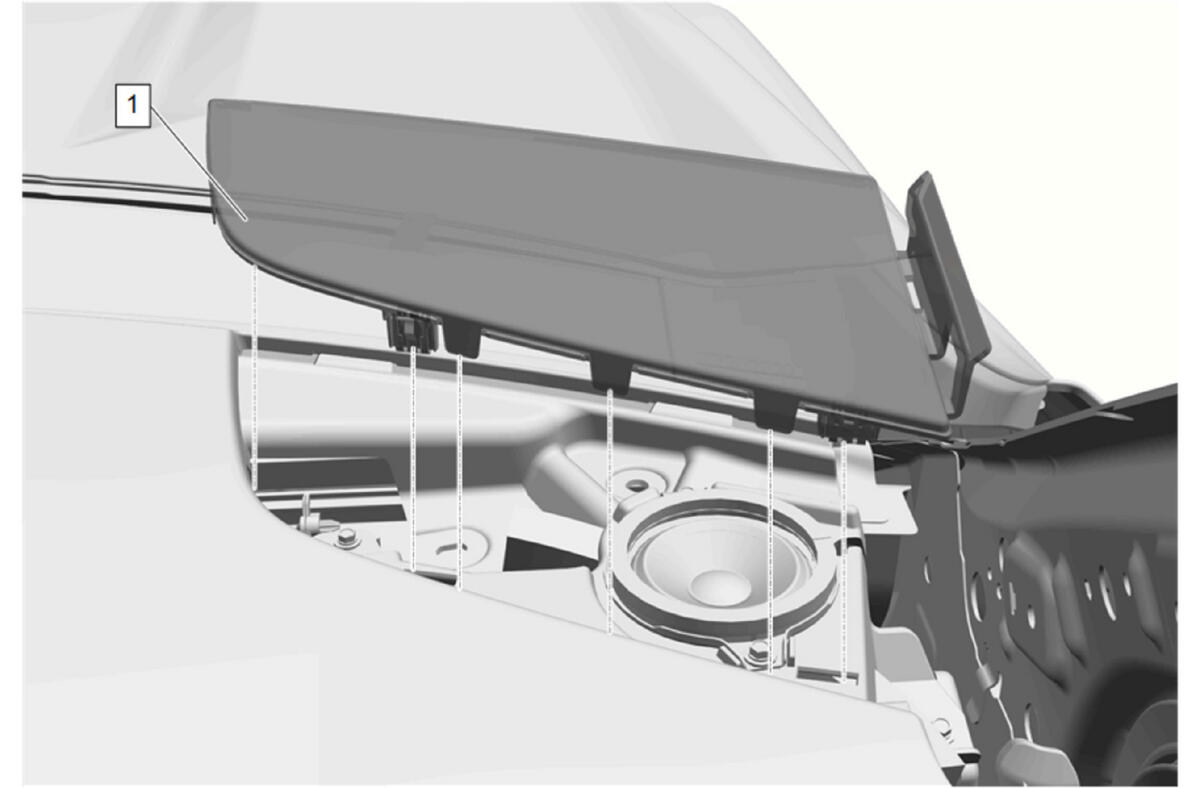

  21. GM5591127Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker Grille (1) - Install

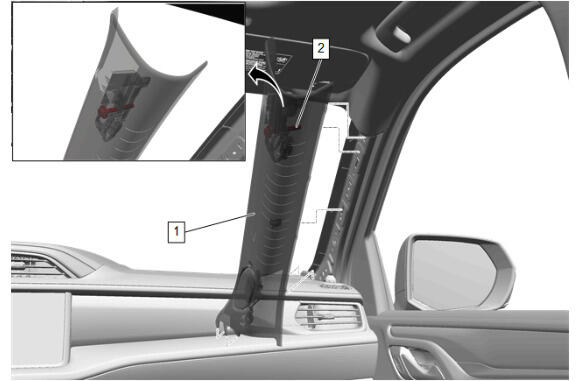

  22. GM5605112Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications

  23. Connect the electrical connector.
  24. Align the retaining clips with the slots in the A pillar and press the windshield garnish molding (1) into place.
  25. Windshield Garnish Molding (1) - Install
  26. GM5599068Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (2) - Install

  27. Instrument Panel Bolt (1) - Install and tighten [ 5x ] - Fastener Specifications
  28. GM5601001Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  29. Instrument Panel Cluster Trim Plate (1) - Install
  30. GM5600999Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Cluster Trim Plate Bolt (1) - Install and tighten [ 7x ] - Fastener Specifications

  31. GM5600995Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.

  32. GM5596337Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  33. Instrument Panel Trim Pad (2) - Install
  34. Instrument Panel Trim Pad Bolt (1) - Install and tighten - Fastener Specifications
  35. GM5598941Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  36. Instrument Panel Trim Pad (2) - Install
  37. Instrument Panel Trim Pad Bolt (1) - Install and tighten - Fastener Specifications
  38. GM5598940Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  39. GM5596404Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Upper Trim Panel (2) - Install

  40. Instrument Panel Upper Bolt (1) - Install and tighten [ 3x ] - Fastener Specifications
  41. GM5596335Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  42. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install

  43. GM5591131Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Instrument Cluster Hood (3) - Install

  44. Instrument Panel Upper Bolt (2) - Install and tighten [ 4x ] - Fastener Specifications
  45. Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  46. GM5605303Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  47. Radio Front Center Speaker (2) - Install
  48. Radio Front Center Speaker Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  49. GM5590605Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  50. Instrument Panel Extension (1) - Install
  51. GM5589207Courtesy of GENERAL MOTORS COMPANY

    Windshield Garnish Molding Bolt (2) - Install and tighten - Fastener Specifications

  52. Connect the electrical connector.
  53. Windshield Garnish Molding (1) - Install
  54. Enable the SIR System. SIR Disabling and Enabling
