Installation Procedure

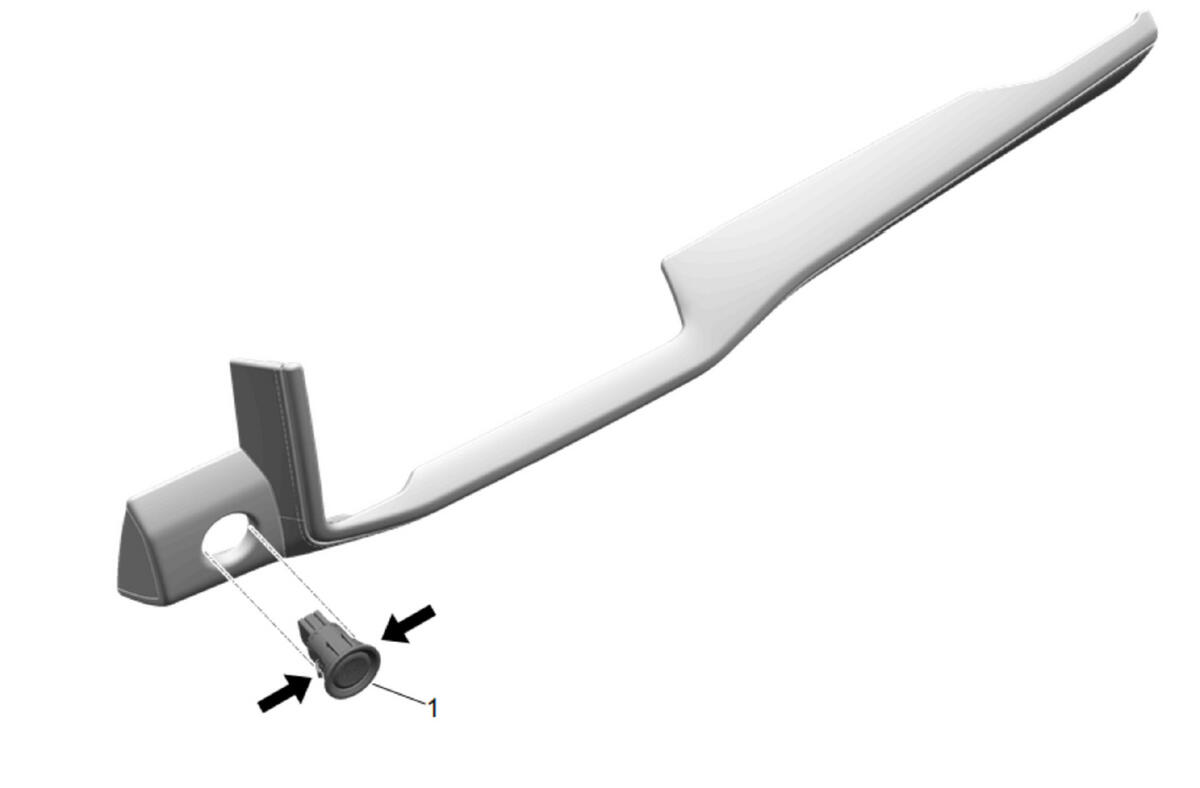

  1. GM5600630Courtesy of GENERAL MOTORS COMPANY

    On/Off Vehicle Switch (1) - Install

  2. GM5598941Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  3. Instrument Panel Trim Pad (2) - Install
    4. CAUTION:

    Refer to Fastener Caution .

  4. Instrument Panel Trim Pad Bolt (1) - Install and tighten - Fastener Specifications
  5. GM5598940Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install
