Installation Procedure

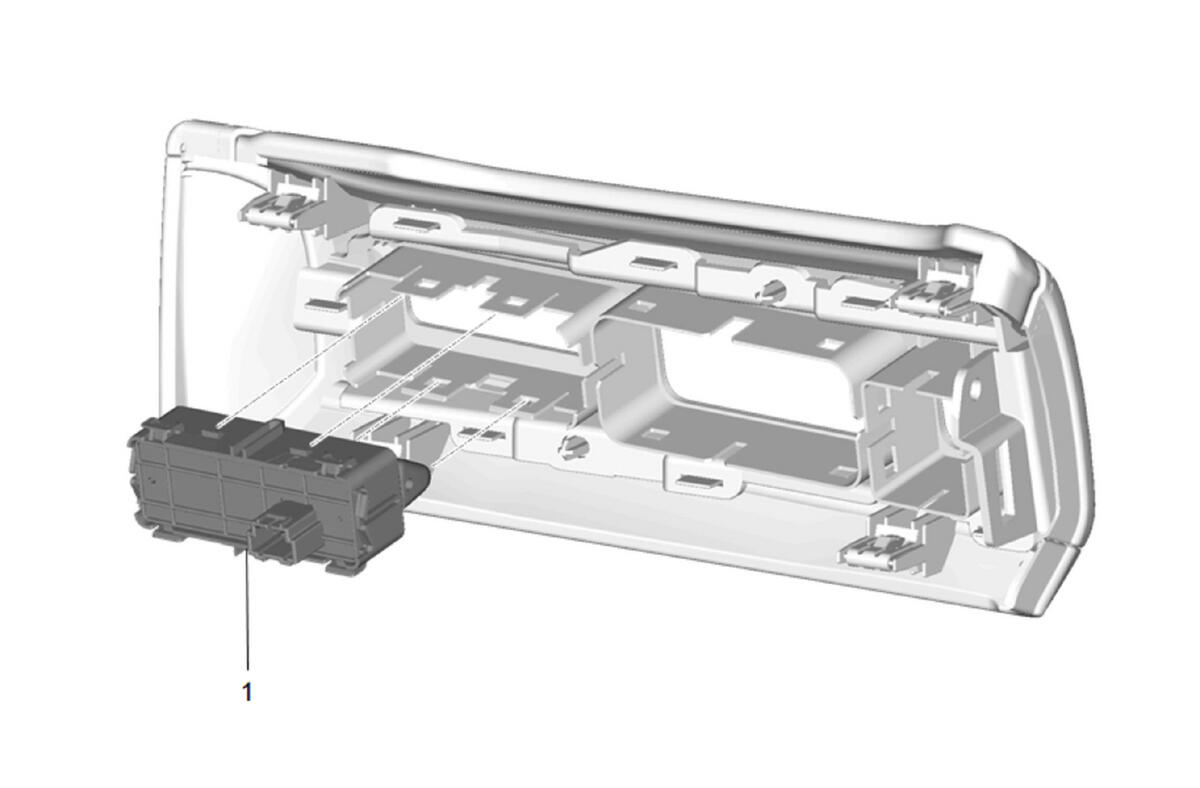

  1. GM5607306Courtesy of GENERAL MOTORS COMPANY

    Head-Up Display Switch (1) - Install

  2. Ensure the retaining tabs have fully secured.

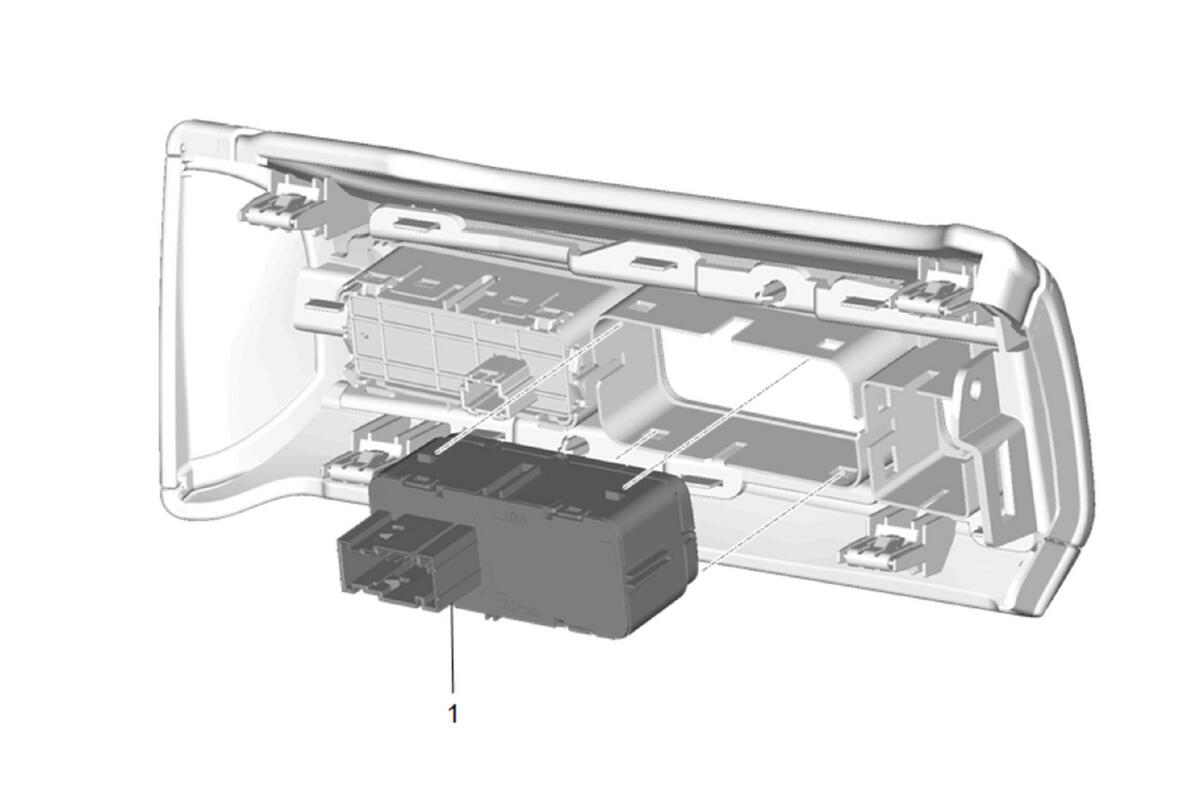

  3. GM5607304Courtesy of GENERAL MOTORS COMPANY

    Vehicle Stability Control System Switch (1) - Install

  4. Ensure the retaining tabs have fully secured.

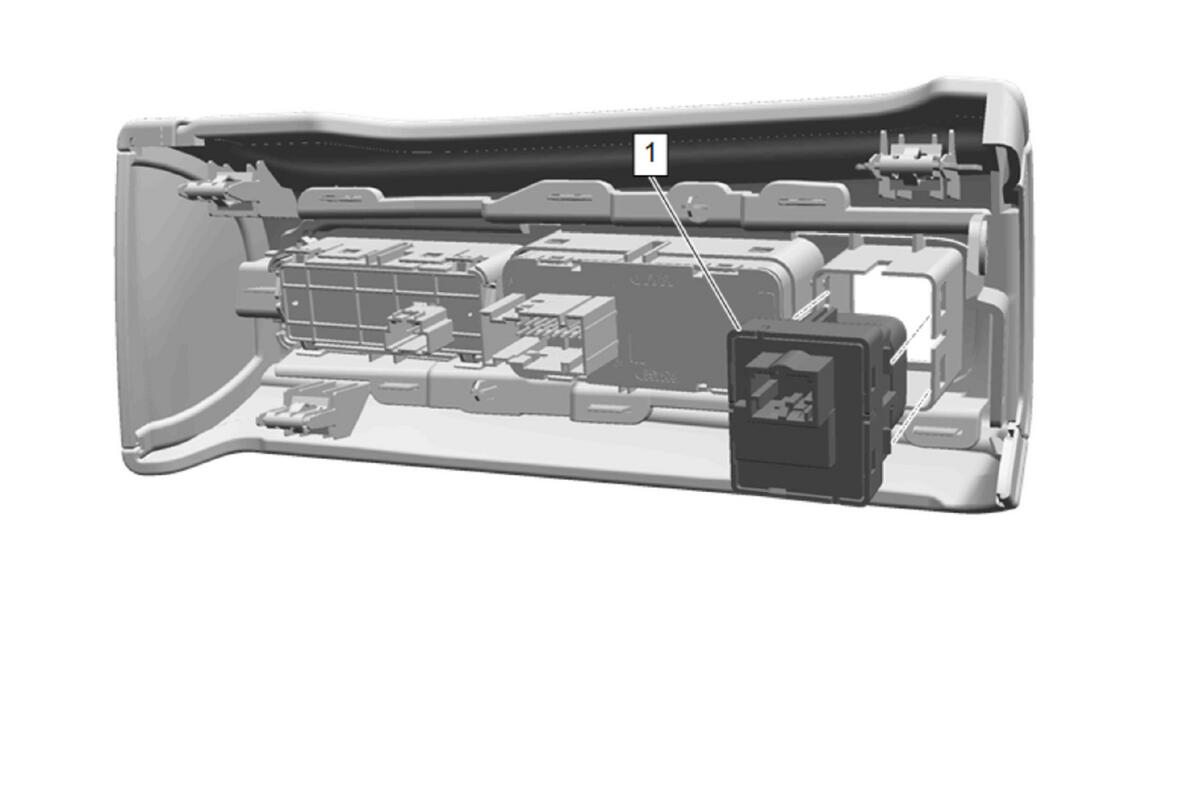

  5. GM5605311Courtesy of GENERAL MOTORS COMPANY

    Parking Brake Control Switch (1) - Install

  6. Ensure the retaining tabs have fully secured.
  7. GM5596337Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  8. Instrument Panel Trim Pad (2) - Install
    9. CAUTION:

    Refer to Fastener Caution .

  9. Instrument Panel Trim Pad Bolt (1) - Install and tighten - Fastener Specifications
  10. GM5596335Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  11. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install
