Installation Procedure

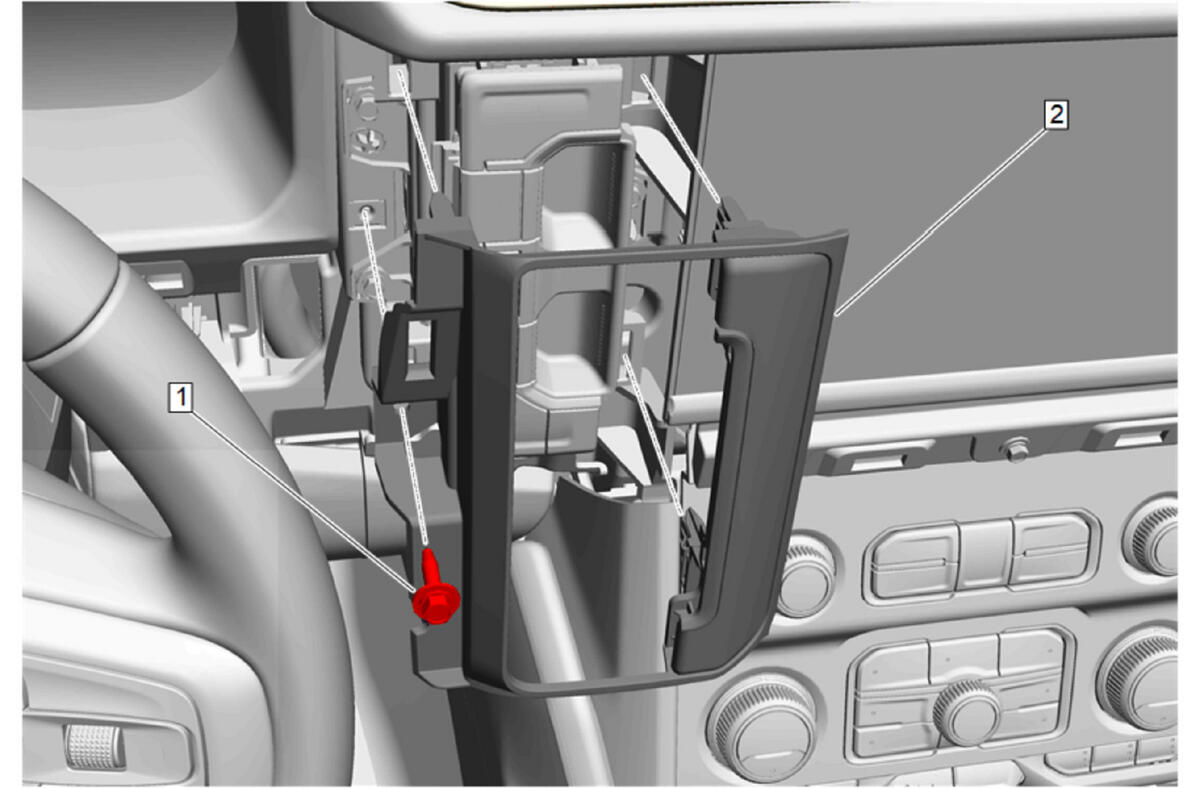

  1. GM5605214Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Transmission Shift Opening Cover (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Instrument Panel Accessory Bezel Bolt (1) - Install and tighten - Fastener Specifications
  3. GM5598941Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  4. Instrument Panel Trim Pad (2) - Install
  5. Instrument Panel Trim Pad Bolt (1) - Install and tighten - Fastener Specifications
  6. GM5598940Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install
