Installation Procedure

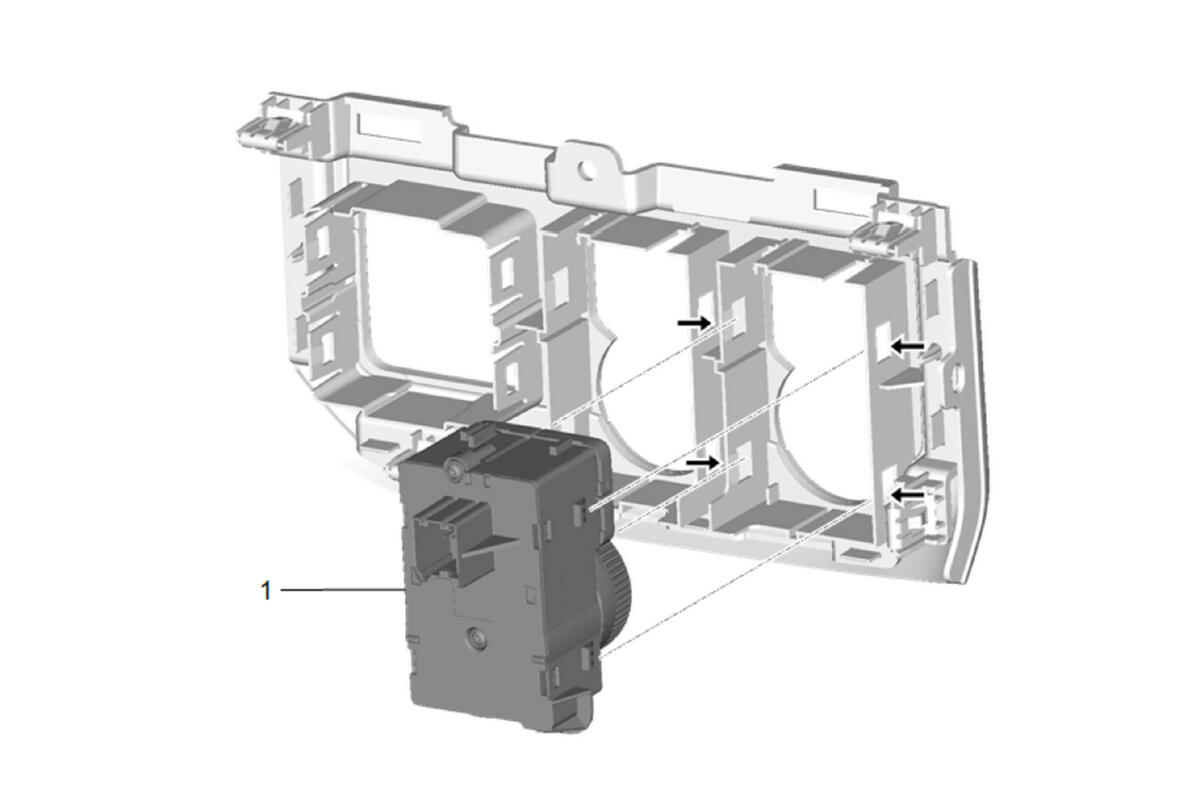

  1. GM5607302Courtesy of GENERAL MOTORS COMPANY

    Ride Control Switch (1) - Install

  2. Ensure the retaining tabs have fully secured.

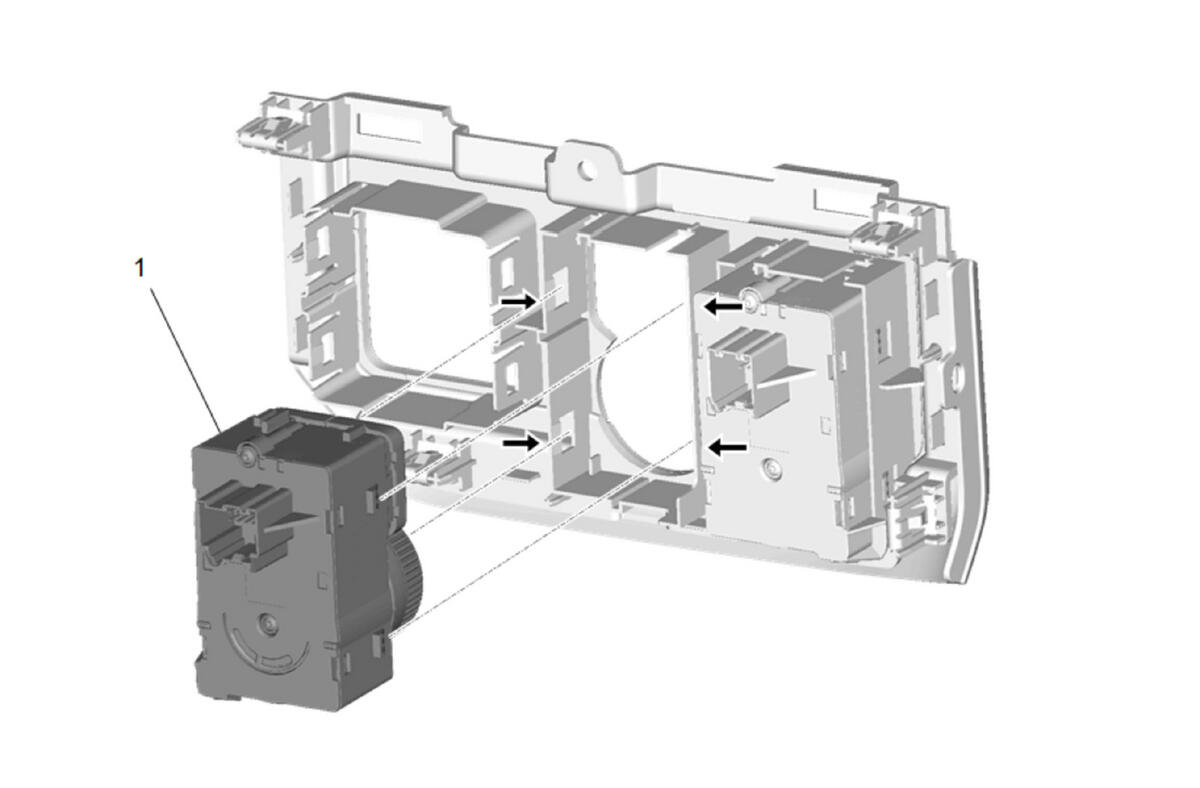

  3. GM5607299Courtesy of GENERAL MOTORS COMPANY

    Headlamp Switch (1) - Install

  4. Ensure the retaining tabs have fully secured.

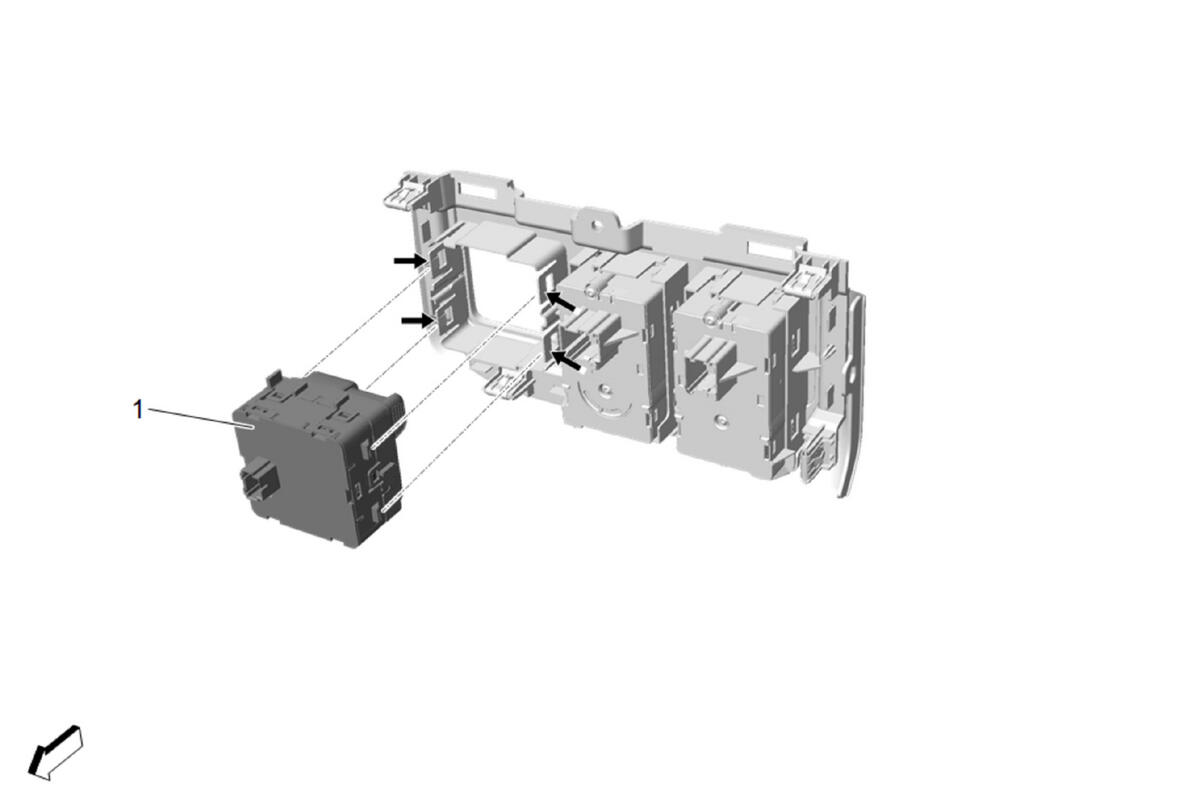

  5. GM5569085Courtesy of GENERAL MOTORS COMPANY

    Trailer Brake Control Switch (1) - Install

  6. Ensure the retaining tabs have fully secured.

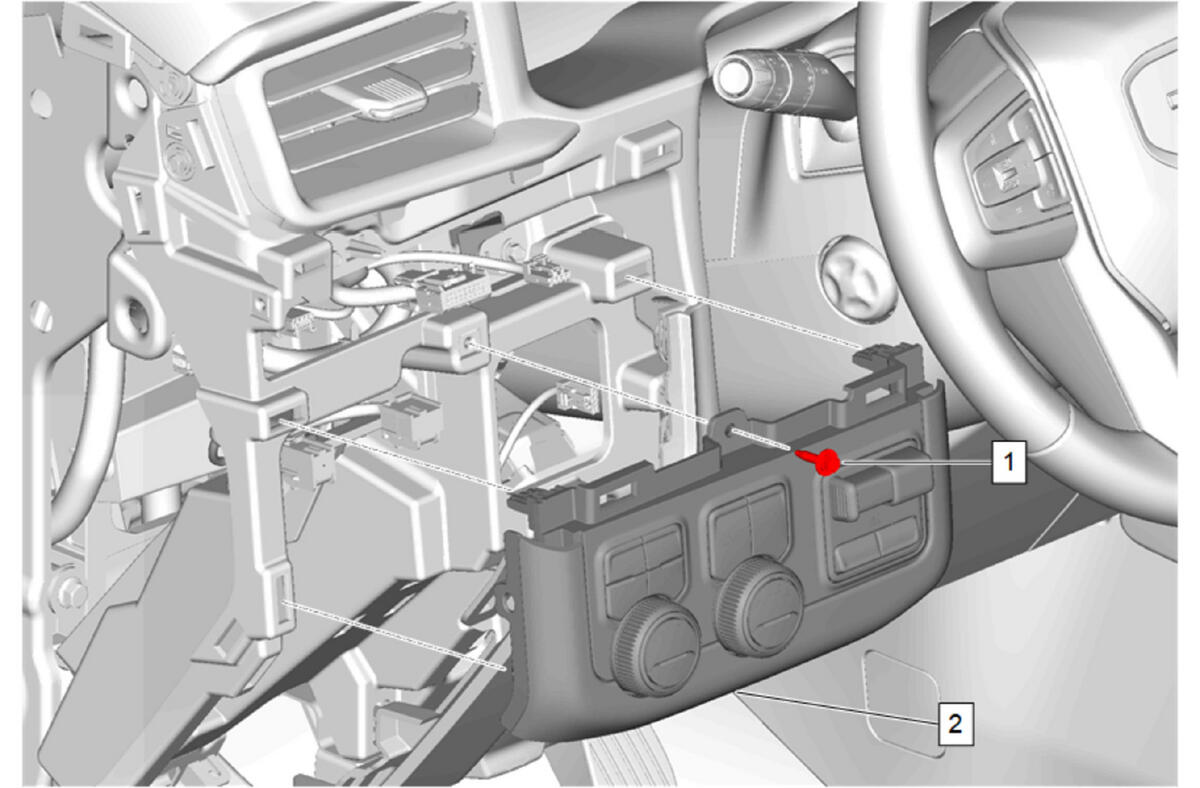

  7. GM5596403Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  8. Instrument Panel Switch Trim Plate (2) - Install
    9. CAUTION:

    Refer to Fastener Caution .

  9. Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten - Fastener Specifications

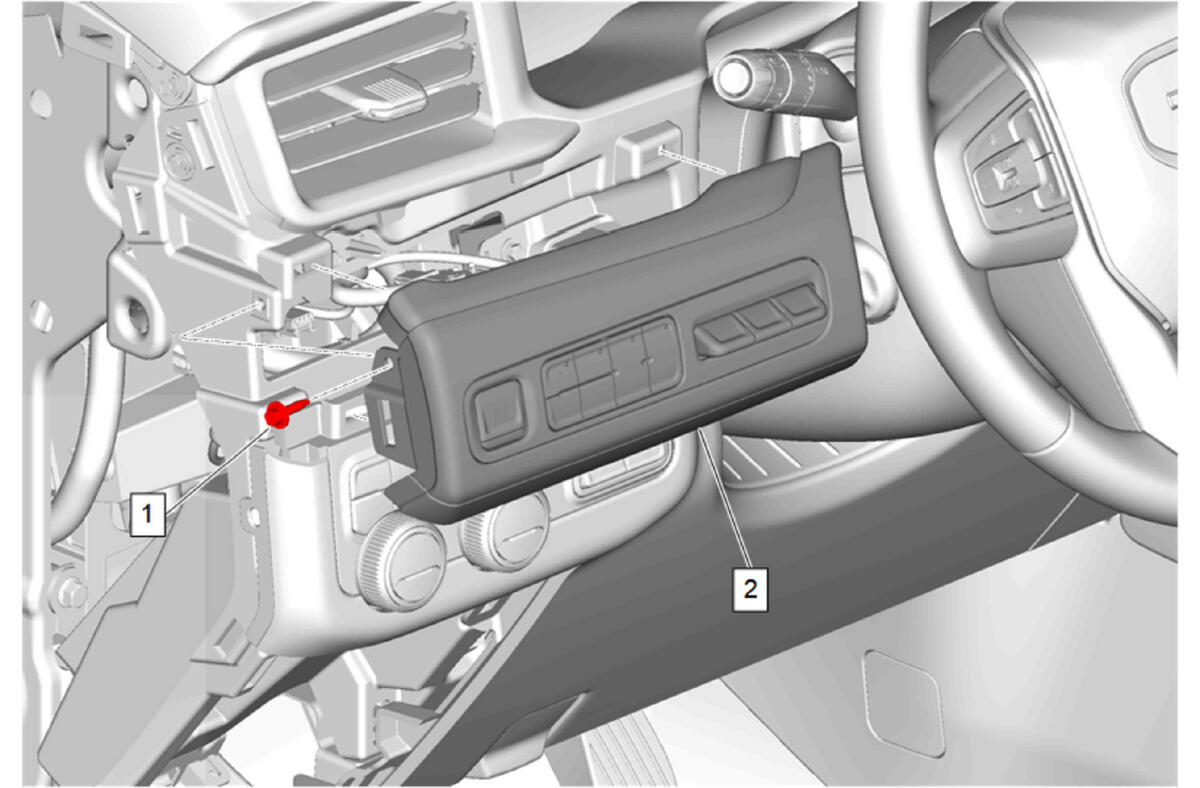

  10. GM5596337Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  11. Instrument Panel Trim Pad (2) - Install
  12. Instrument Panel Trim Pad Bolt (1) - Install and tighten - Fastener Specifications

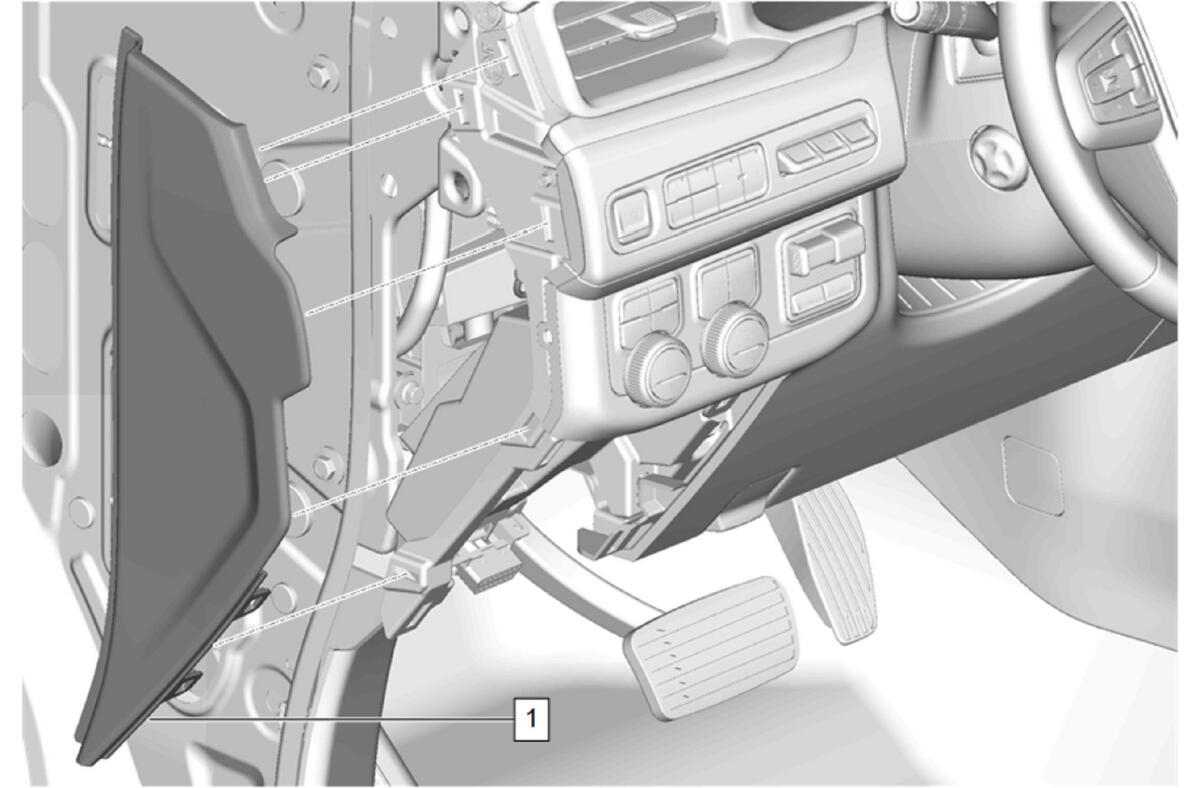

  13. GM5596335Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

  14. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install
