Installation Procedure

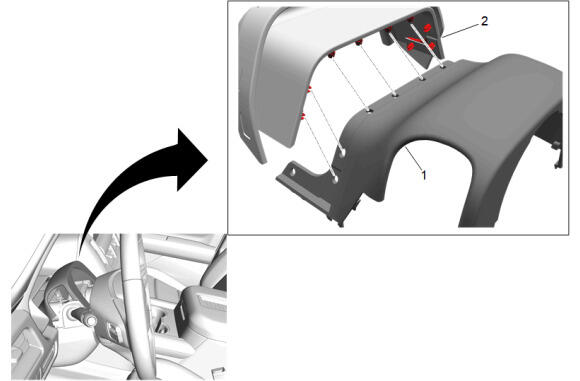

  1. GM5527242Courtesy of GENERAL MOTORS COMPANY

    Clip the instrument panel steering column opening closeout (2) to the instrument panel steering column upper trim cover (1).

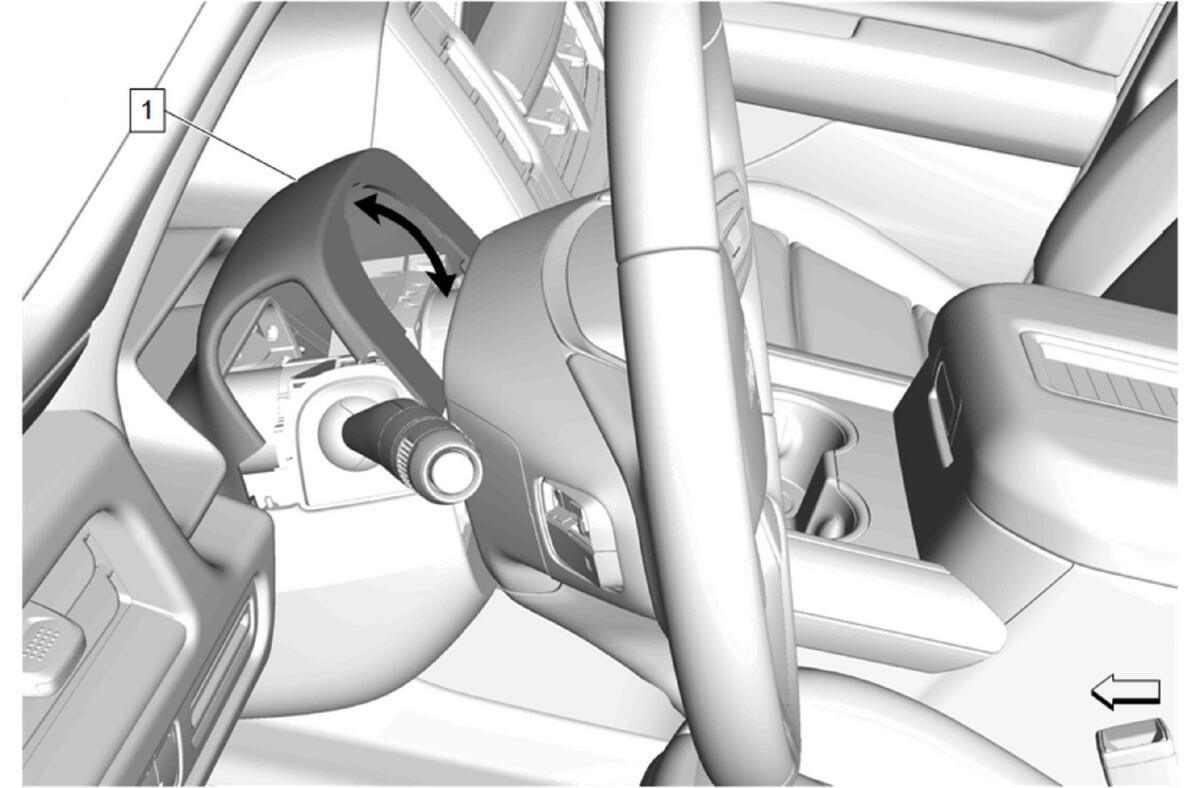

  2. GM5527241Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
