Installation Procedure

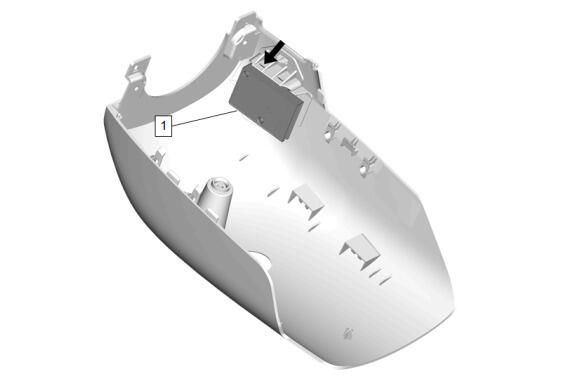

  1. GM5539789Courtesy of GENERAL MOTORS COMPANY

    Steering Column Tilt Wheel and Telescope Switch (1) - Install

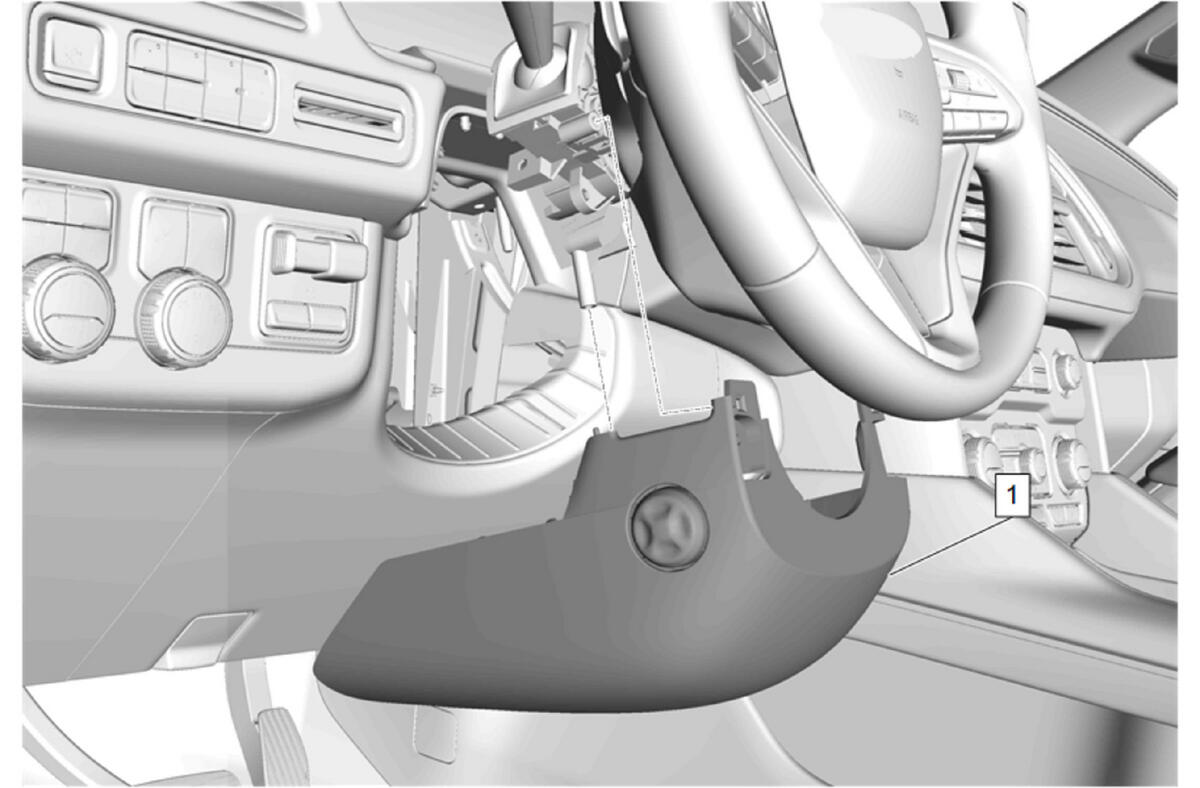

  2. GM5543910Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  3. Instrument Panel Steering Column Lower Trim Cover (1) - Install

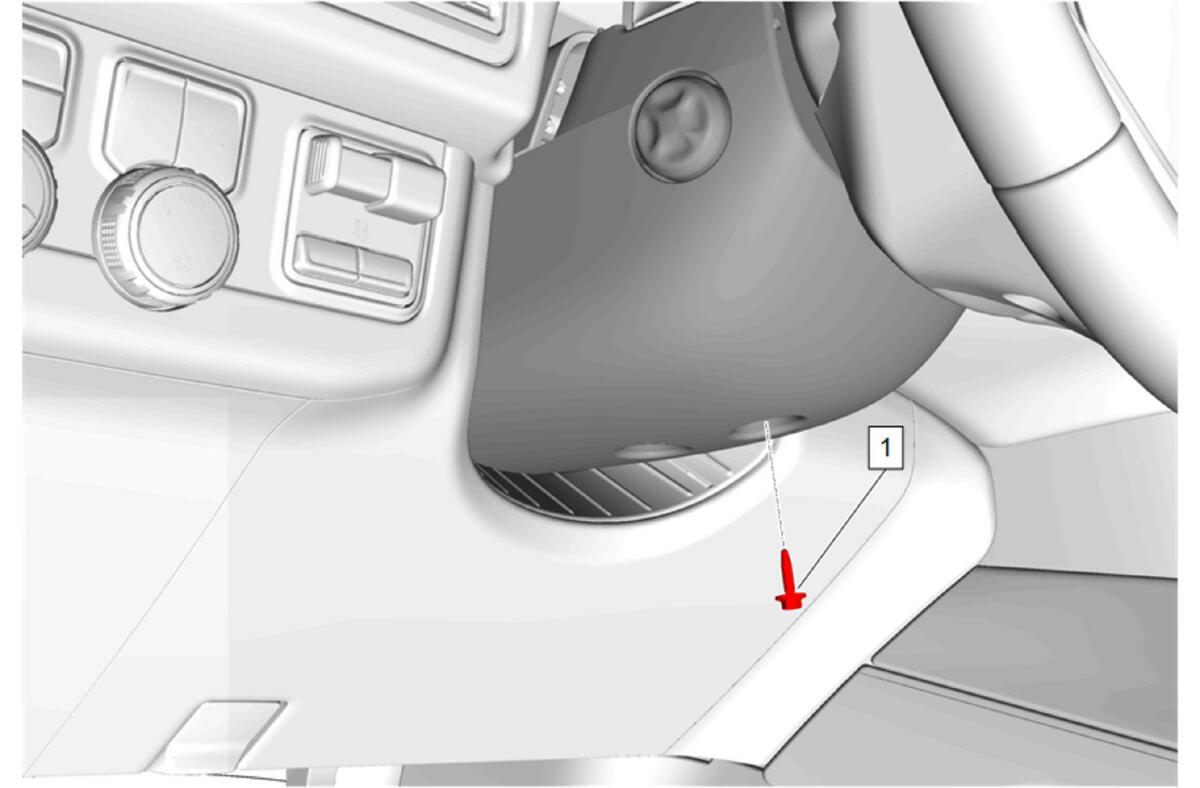

  4. GM5543905Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

  5. GM5528081Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the right of the centered position.

  6. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications

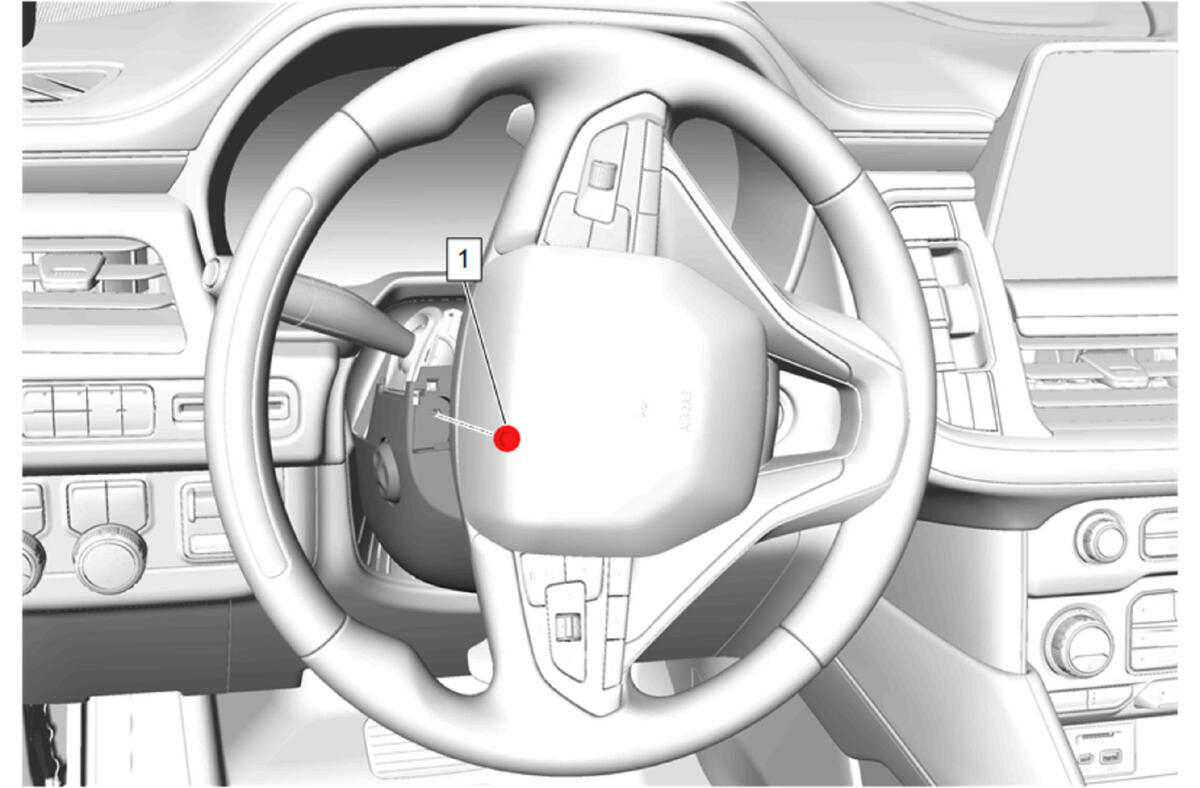

  7. GM5543904Courtesy of GENERAL MOTORS COMPANY

    Turn the steering wheel approximately 90 degrees to the left of the centered position.

  8. Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
  9. Turn the steering wheel to the centered position.
  10. GM5527242Courtesy of GENERAL MOTORS COMPANY

    Clip the instrument panel steering column opening closeout (2) to the instrument panel steering column upper trim cover (1).

  11. GM5527241Courtesy of GENERAL MOTORS COMPANY

    Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
