Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

NOTE:
Adjustment arm may need to be repositioned.

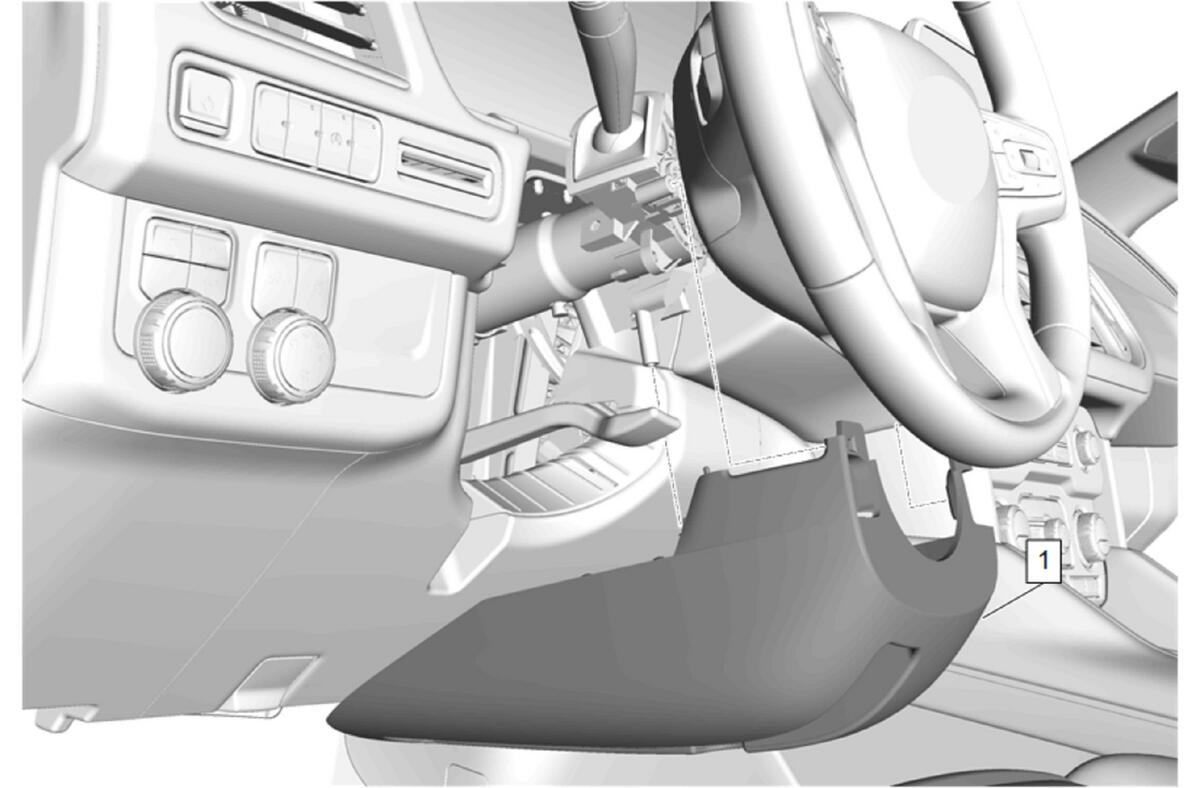

Instrument Panel Steering Column Lower Trim Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

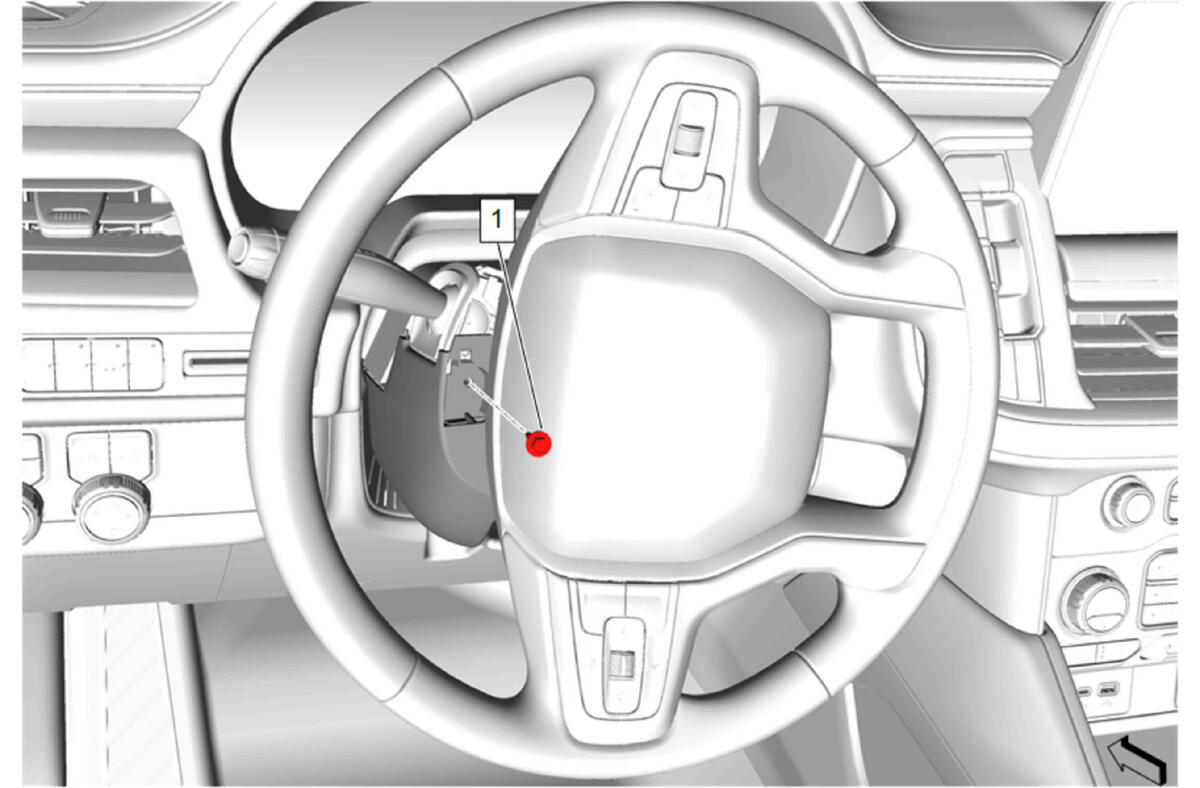

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Turn the steering wheel approximately 90 degrees to the right of the centered position.

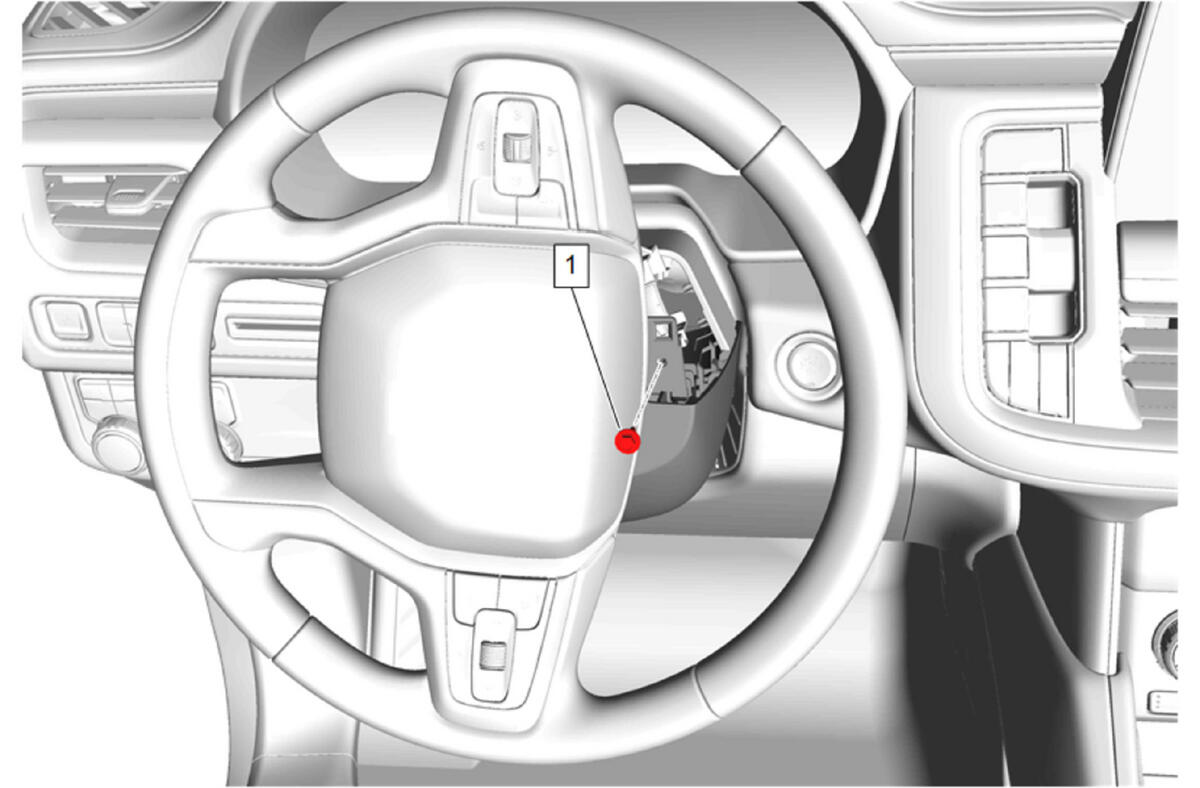

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Turn the steering wheel approximately 90 degrees to the left of the centered position.

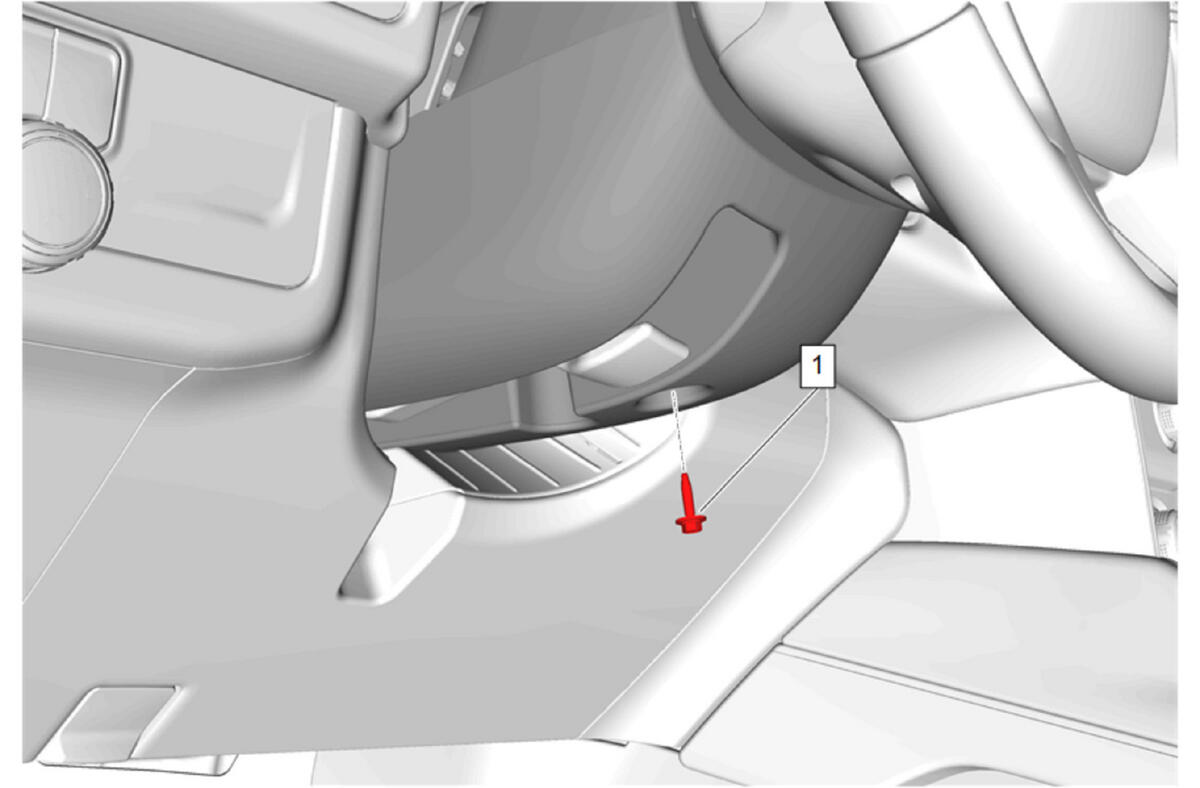

Instrument Panel Steering Column Lower Trim Cover Bolt (1) - Install and tighten - Fastener Specifications
Turn the steering wheel to the centered position.
Courtesy of GENERAL MOTORS COMPANY

Secure the instrument panel steering column upper trim cover (1) to the instrument panel steering column lower trim cover.
