Installation Procedure

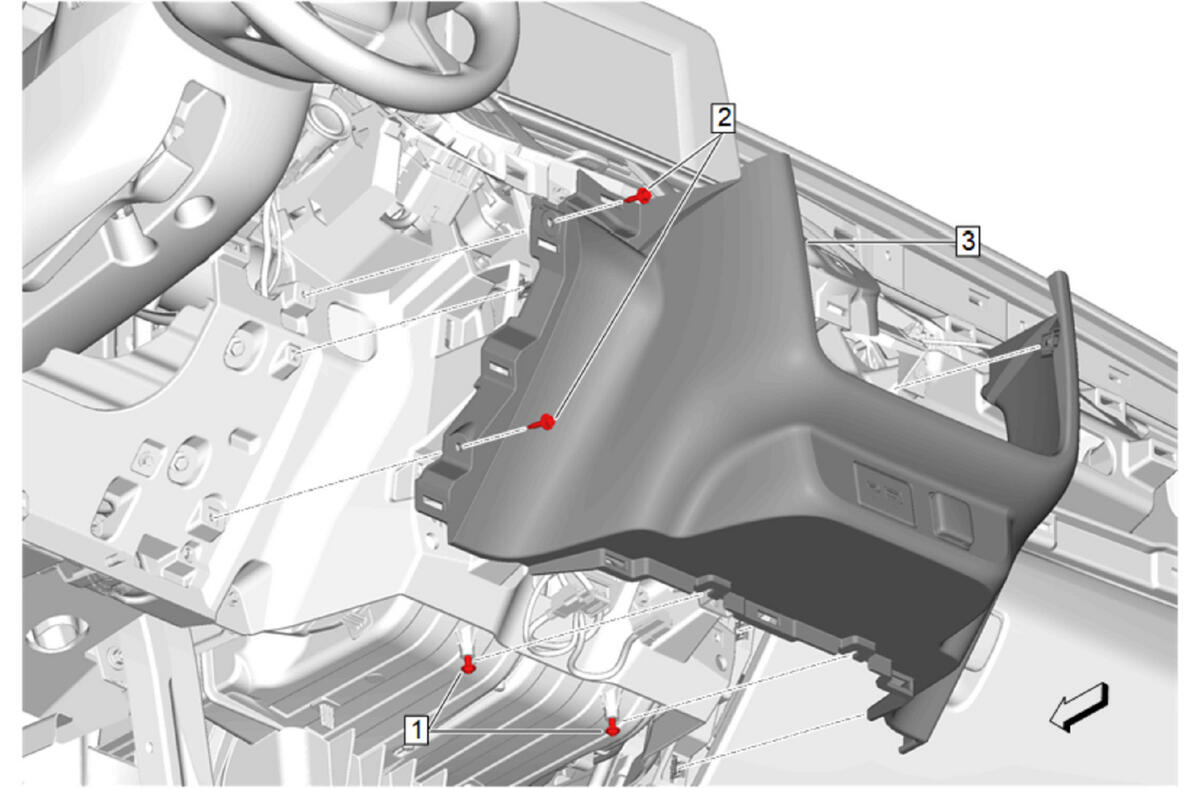

  1. GM5539601Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  2. Instrument Panel Lower Trim Panel (3) - Install
    3. CAUTION:

    Refer to Fastener Caution .

  3. Instrument Panel Lower Trim Panel Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications
  4. Instrument Panel Lower Trim Panel Bolt (1) - Tighten [ 2x ] - Fastener Specifications
  5. GM5520388Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  6. Instrument Panel Trim Pad (2) - Install
  7. Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [ 6x ] - Fastener Specifications
  8. GM5519541Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Center Trim Plate Applique (1) - Install

  9. GM5519543Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install

  10. GM5518395Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

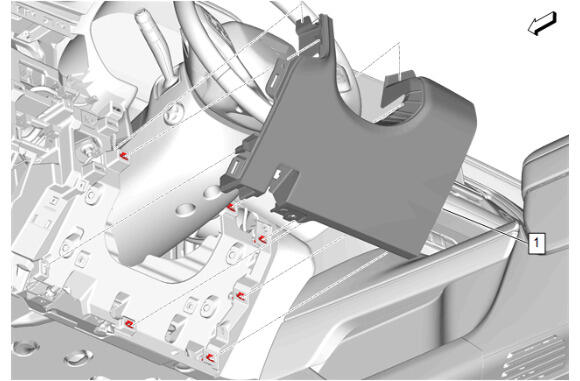

  11. GM5517090Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster (1) - Install

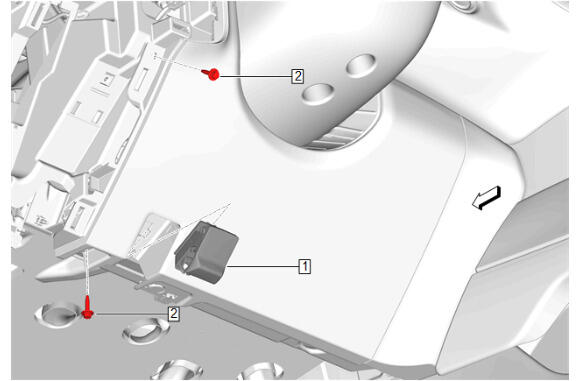

  12. GM5517088Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Knee Bolster Bolt (2) - Install and tighten [ 2x ] - Fastener Specifications

  13. Hood Primary Latch Release Cable Handle (1) - Install

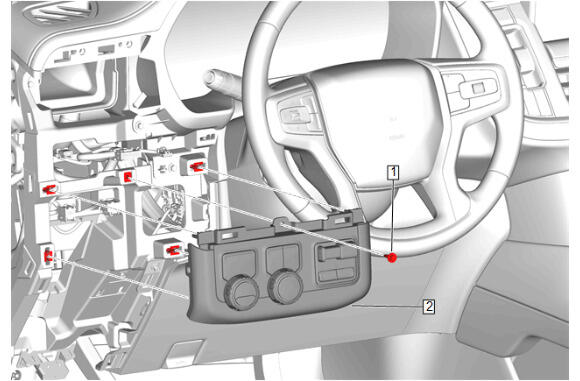

  14. GM5517140Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  15. Instrument Panel Switch Trim Plate (2) - Install
  16. Instrument Panel Switch Trim Plate Bolt (1) - Install and tighten - Fastener Specifications

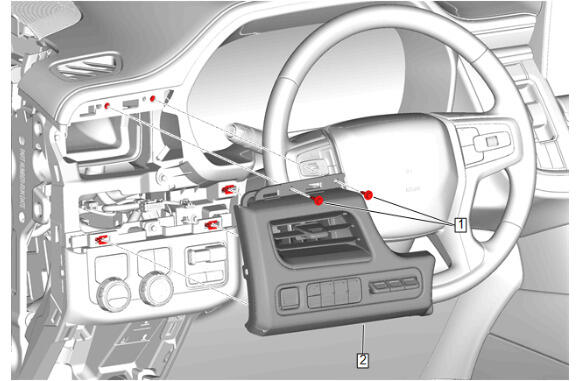

  17. GM5517141Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connectors.

  18. Instrument Panel Trim Pad (2) - Install
  19. Instrument Panel Trim Pad Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
  20. GM5517142Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Trim Plate Applique (1) - Install

  21. GM5517144Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Fuse Block Access Hole Cover (1) - Install

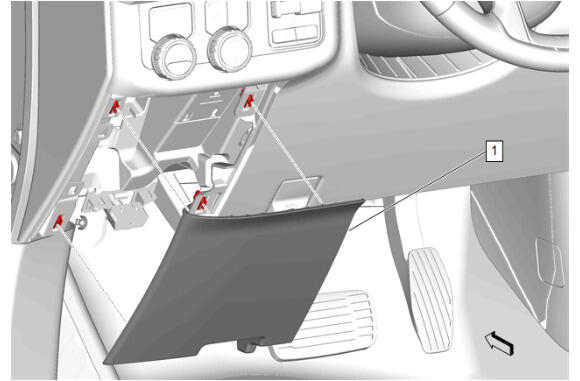

  22. GM5515686Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Trim Panel Outer Filler (1) - Install

  23. GM5539603Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel (2) - Install

  24. Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
