Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

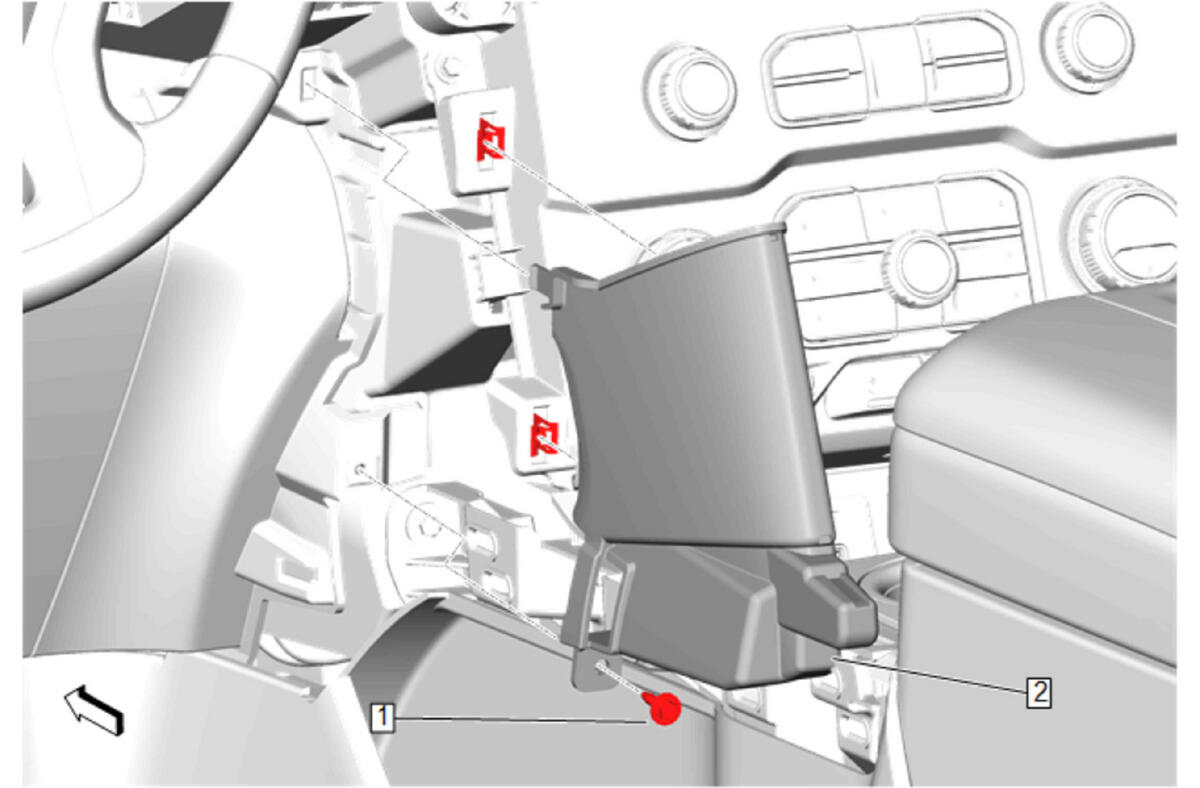

Instrument Panel Lower Center Trim Plate Applique (2) - Install

CAUTION:

Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Trim Pad (2) - Install
Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [ 6x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Center Trim Plate Applique (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Plate Applique (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Fuse Block Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Lower Applique (1) - Install
