Installation Procedure

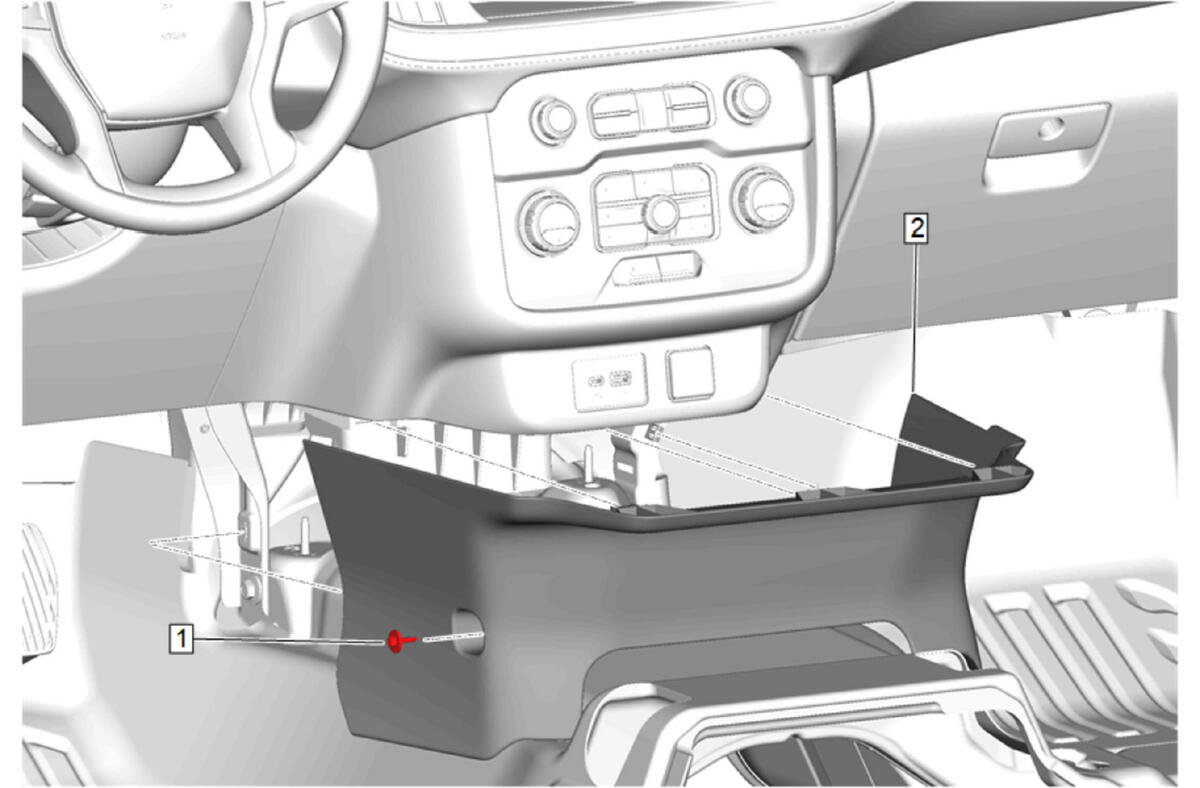

  1. GM5539603Courtesy of GENERAL MOTORS COMPANY

    Instrument Panel Lower Center Trim Panel (2) - Install

    2. CAUTION:

    Refer to Fastener Caution .

  2. Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
