Installation Procedure

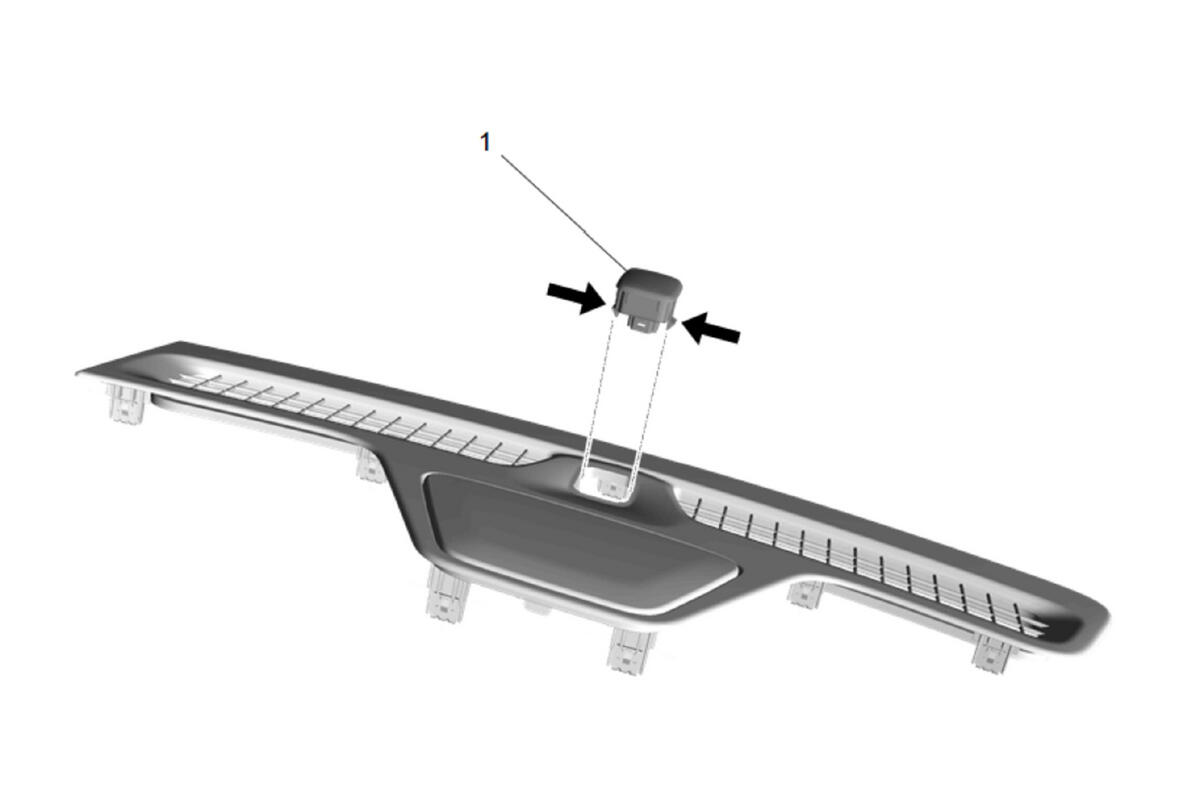

  1. GM5587605Courtesy of GENERAL MOTORS COMPANY

    Sun Load Temperature and Ambient Light and Security Indicator Sensor (1) - Install

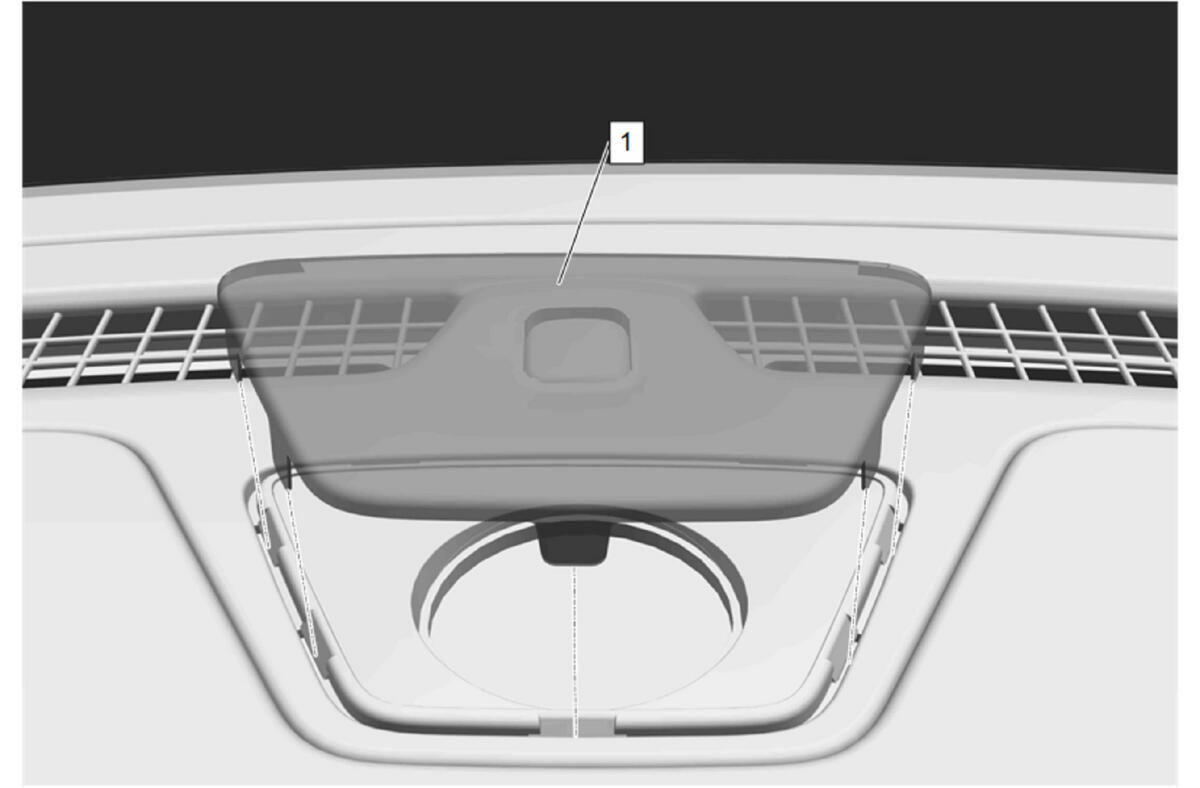

  2. GM5590463Courtesy of GENERAL MOTORS COMPANY

    Radio Front Center Speaker Grille (1) - Install

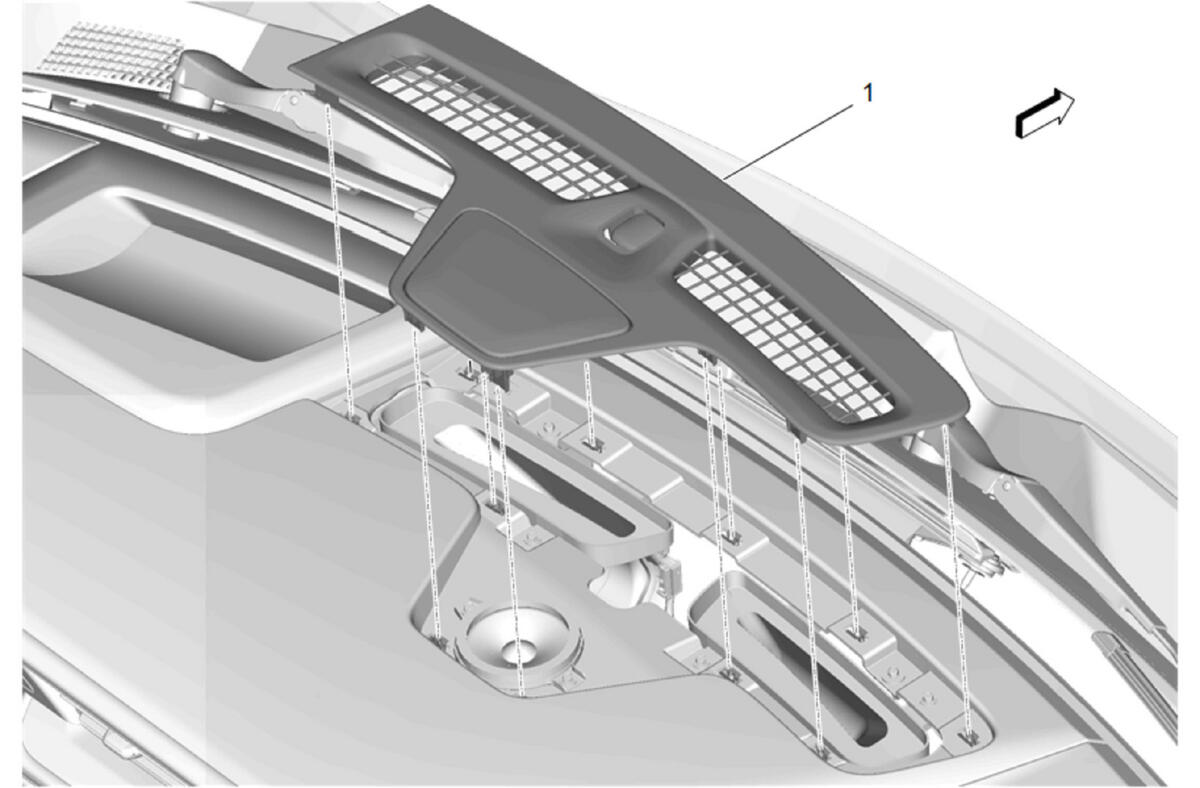

  3. GM5590605Courtesy of GENERAL MOTORS COMPANY

    Connect the electrical connector.

  4. Instrument Panel Extension (1) - Install
