Installation Procedure

Courtesy of GENERAL MOTORS COMPANY

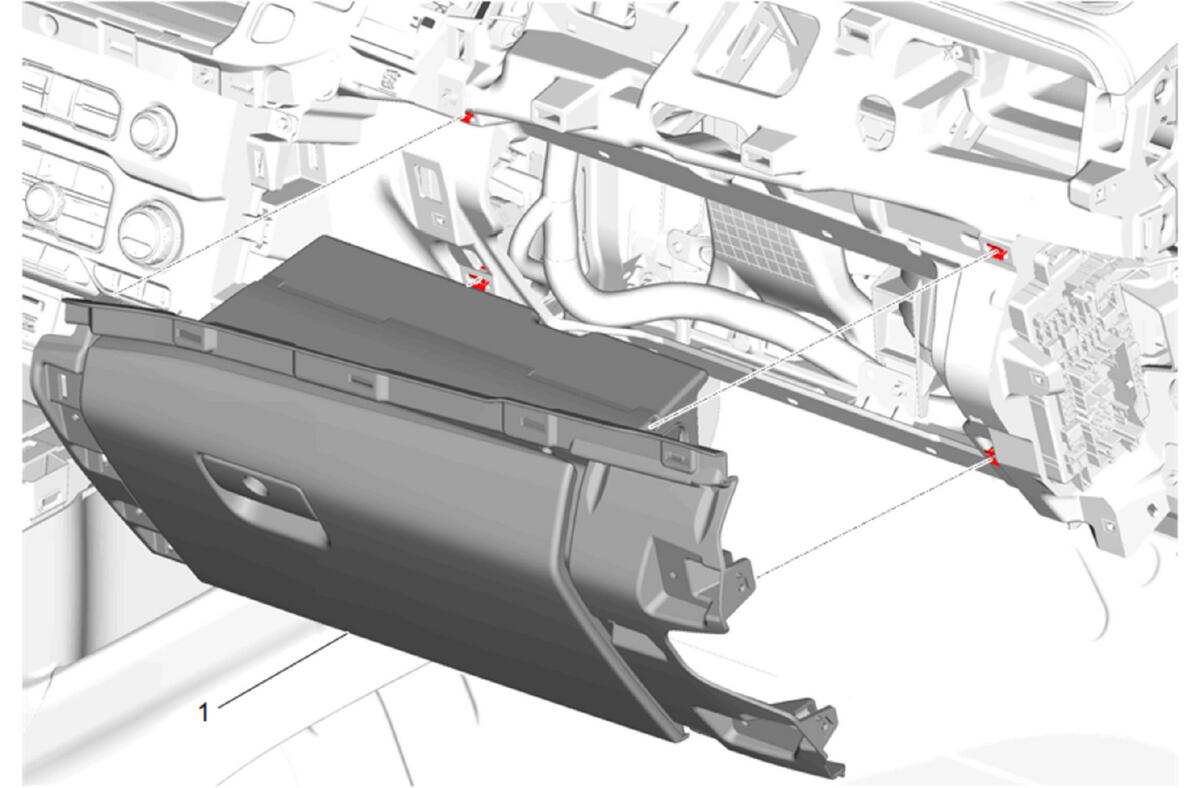

Instrument Panel Compartment (1) - Install
Courtesy of GENERAL MOTORS COMPANY

CAUTION:
Refer to Fastener Caution .

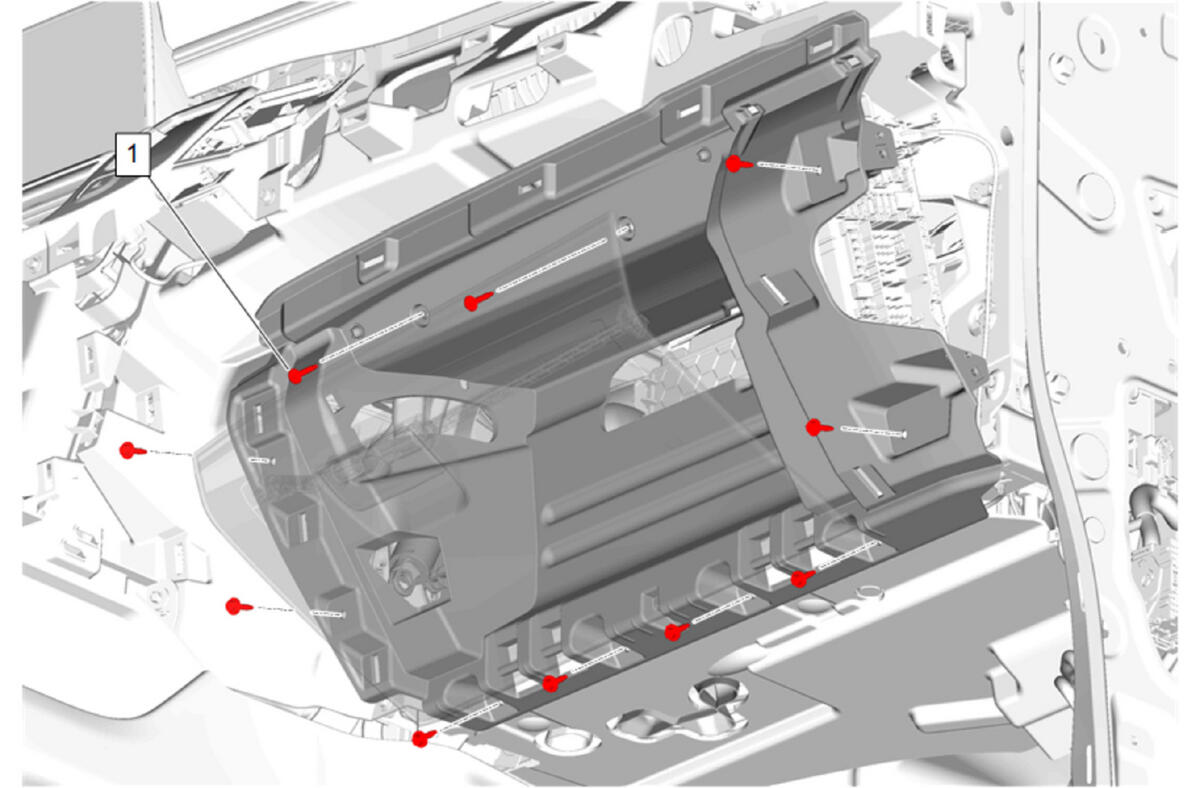

Instrument Panel Compartment Bolt (1) - Install and tighten [ 10x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Lower Trim Panel (1) - Install
Courtesy of GENERAL MOTORS COMPANY

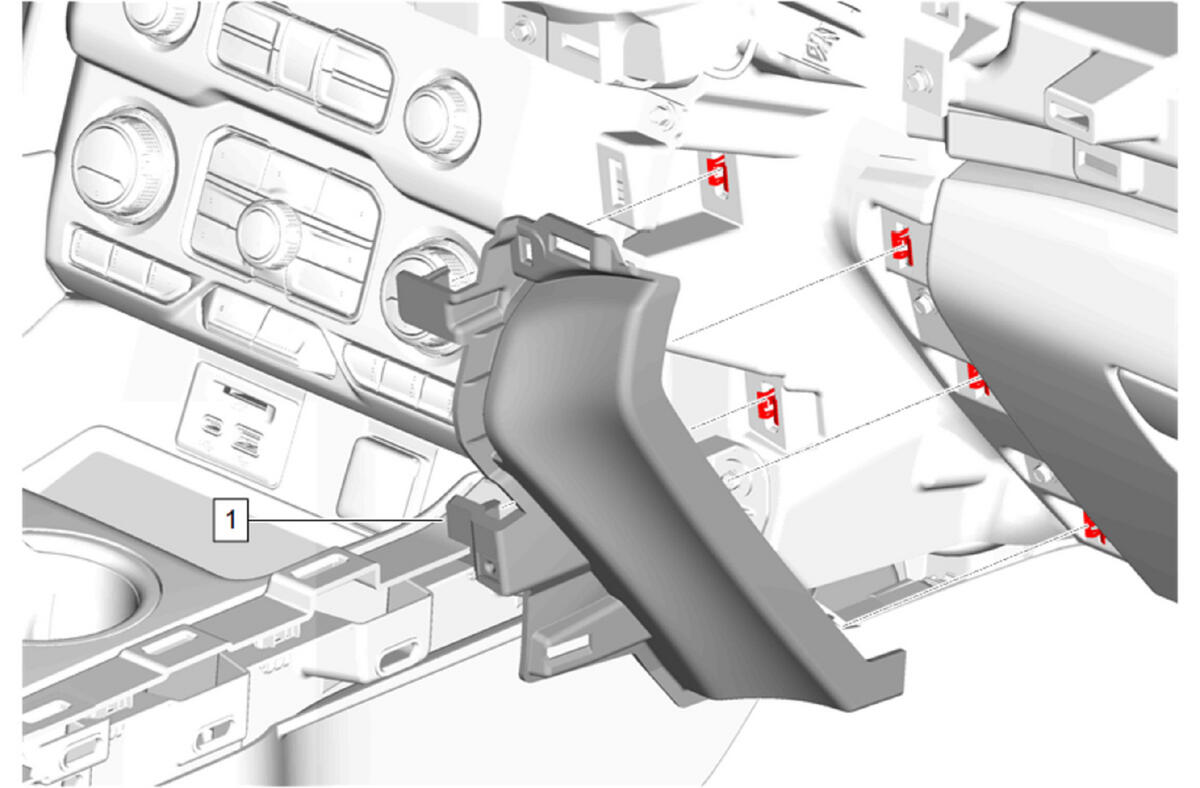

Instrument Panel Lower Center Trim Plate Applique (2) - Install
Instrument Panel Lower Trim Panel Bolt (1) - Install and tighten - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

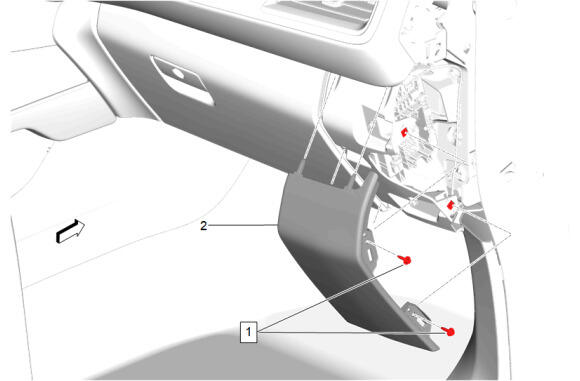

Instrument Panel Lower Trim Panel Outer Filler (2) - Install
Instrument Panel Compartment Bolt (1) - Install and tighten [ 2x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

Connect the electrical connector.
Instrument Panel Trim Pad (2) - Install
Instrument Panel Upper Trim Panel Bolt (1) - Install and tighten [ 6x ] - Fastener Specifications
Courtesy of GENERAL MOTORS COMPANY

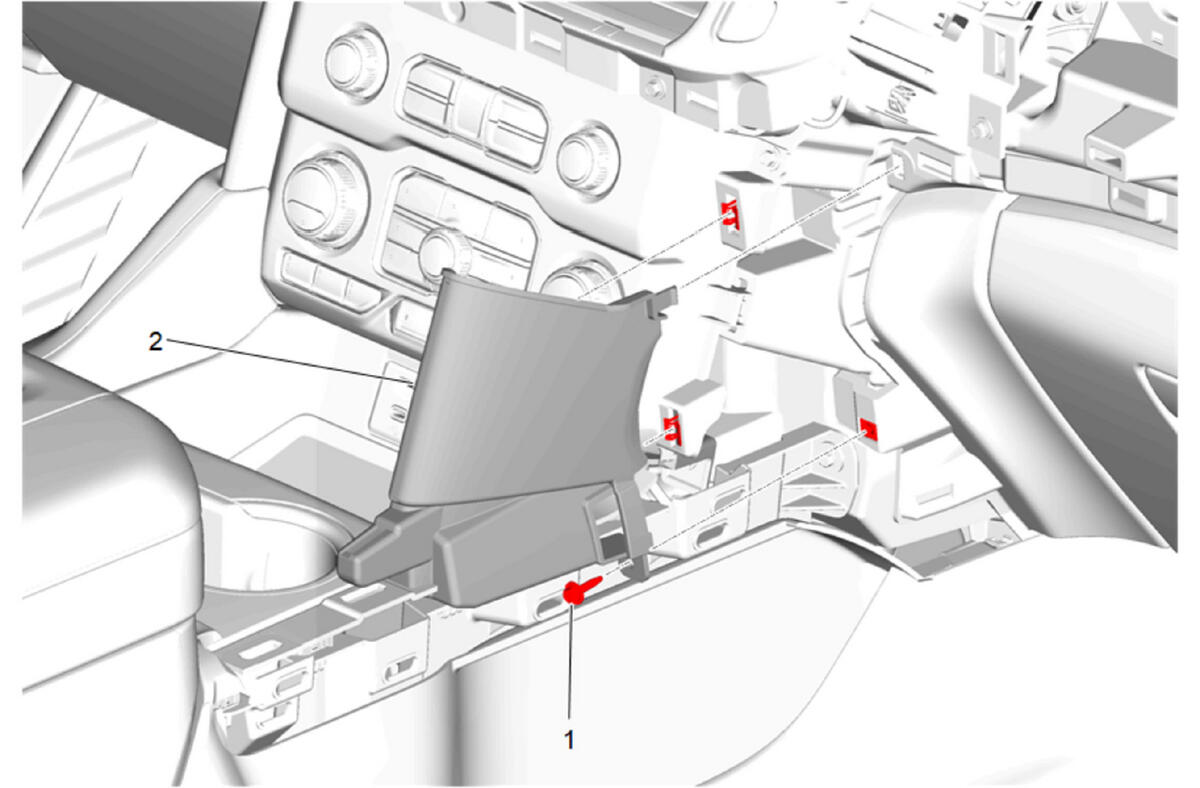

Instrument Panel Center Trim Plate Applique (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Trim Plate Applique (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Instrument Panel Fuse Block Access Hole Cover (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Applique (1) - Install
Courtesy of GENERAL MOTORS COMPANY

Front Floor Console Lower Applique (1) - Install
